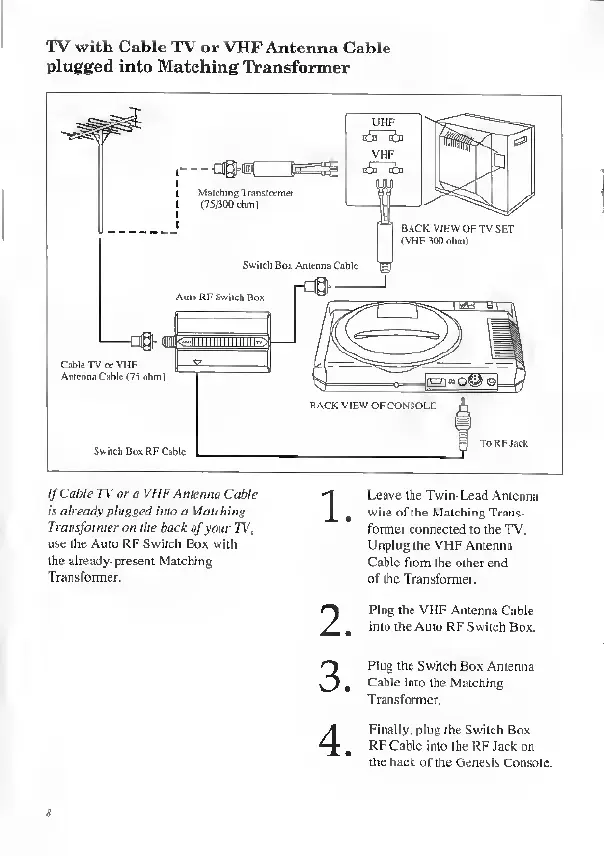

TV with Cable TV or VHF Antenna Cable
plugged into Matching
Transformer
^^
Cable TV cr VHF
Antenna
Cable
(75
ohm)
Switch
Box RF Cable
If Cable TV or a VHF Antenna
Cable
is already
plugged into a Matching
Transformer on lite hack
of
your TV,
use the Autu RF Switch Box with
the already-present
Matching
Transformer.
1.
2.
3.
4.
Leave
the
Twin-Lead
Antenna
wireorthe
Matching Trans-
former connected
to the TV.
Unplug the VHF
Antenna
Cable from
the other end
of the Transformer.
Plug the
VHF
Antenna
Cable
into the Auto RF Switch Box.
Plug the Switch
Box Antenna
Cable into the Matching
Transformer.
Finally, pluji
the
Switch
Box
RF Cable into the
RF Jack on
the back
of
the
Genesis Console.
