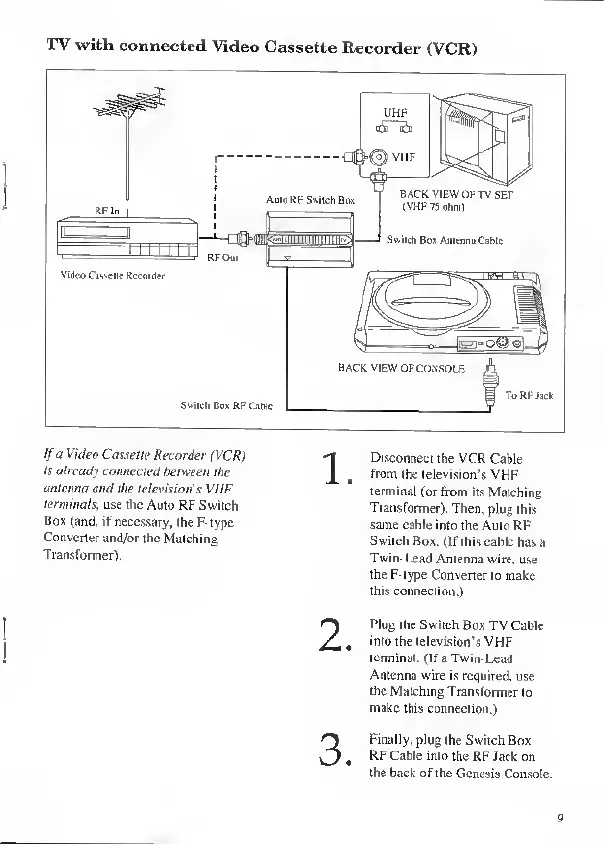

Sega genesis User Manual

TV
with connected
Video
Cassette
Recorder
(VCR)
Switch
Box Rp C iihlc
If
a Video
Cassette Recorder
(VCR)
is already
connected between
the
antenna
and the television's
VHF
terminals,
use ihe Auto
RF Swilch
Bo* (and.
if necessary.
Ihe F-type
Converter
and/or the Matching
Transformer).
Disconnect
the
VCR
Cable
from the television's
VHF
terminal
(or from iis Matching
Transformer).
Then, plug this
same cable into the Aulo
RF
Swilch
Box.
(If this cable has
a
Twin-l£ad Antenna wire,
use
the F-type Converter
to make
this connection.)
Plug
the
Switch
Bex TV
Cable
into
the television's VHF
terminal.
(If a Twin-Lead
Antenna wire
is required,
use
the Matching
Transformer
to
make this
connection.)
Finally, plug the Switch
Box
RF
Cable into the RF
Jack on
the back
of the Genesis
Console.
