Sega House Of The Dead Scarlet Dawn User Manual

PARTS LIST
139
17
***1 HDZ-2201UK BASE CONTROL PANEL 1
***2 HDZ-5112-01UK PLATE CONTROL PANEL 1
***3 HDZ-2203UK BOARD CONTROL PANEL 1
***4 HDZ-2206UK BRKT LOCATING 2
***5 HDZ-2207UK BRKT FRONT SECURING 1
***6 HDZ-2208UK BTN LEGEND VOLUME ON/OFF 1
***101 509-0001-BL BTN 12V-1.2W BLU S'POINT CPBL 1
***102 509-0001-RE BTN 12V-1.2W RED S'POINT CPBL 1
***103 509-0001-CLR BTN 12V-1.2W CLR S'POINT CPBL 1
***104 280-A012640-WX ROUTER TWIST D12 SO6.4 WOOD XL 6
***201 029-B00412 M4X12 SKT BH PAS 6
***202 029-B00416 M4X16 SKT BH PAS 6
***203 050-F00400 M4 NUT FLG SER PAS 6
***204 060-F00400 M4 WSHR FORM A FLT PAS 6
***205 068-441616 M4 WSHR 16OD FLT PAS 12
***301 HDZ-60025UK WH CONTROL PANEL 1
20

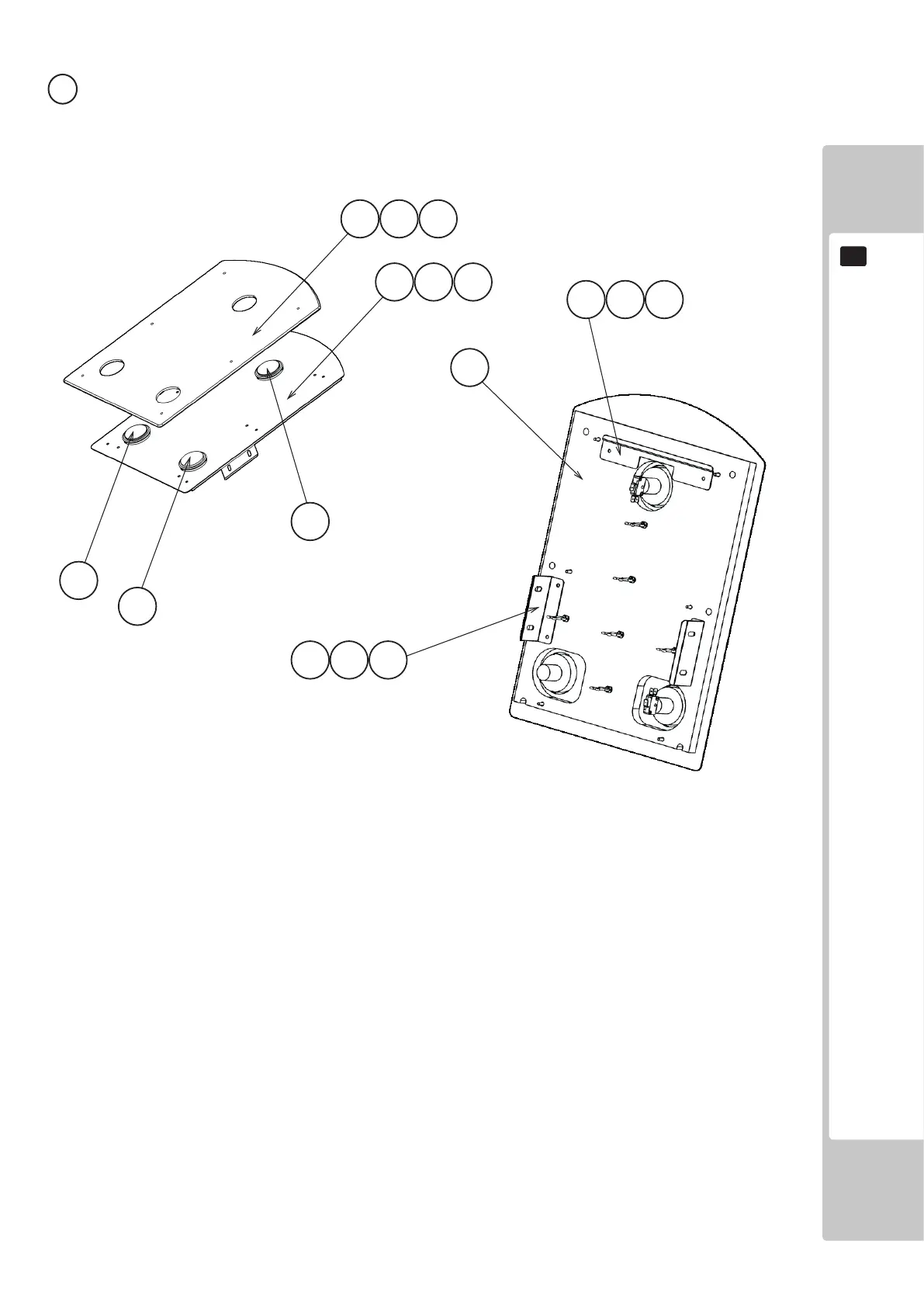

ASSYCONTROLPANEL(HDZ-2200UK) (D-1/1)
ITEM NO PART NO DESCRIPTION REFERENCE QTY
1
2
3
4
5
101
102
103
201
202
202
203
204
205
205
205
