Antenna Extension Pole
Antenna Extension Pole is used to extend your antenna as to avoid bushes or small trees from blocking GPS signals. You can use 1 or 2 pieces of
poles to extend your antenna to 1.5 m (4.9 ) or 2 m (6.6 ).
CAUTION:
Not for strong winds or hurricane/tornado wind loads. Reinforce the antenna pole in all cases to prevent
displacement or failure in unexpected weather conditions.

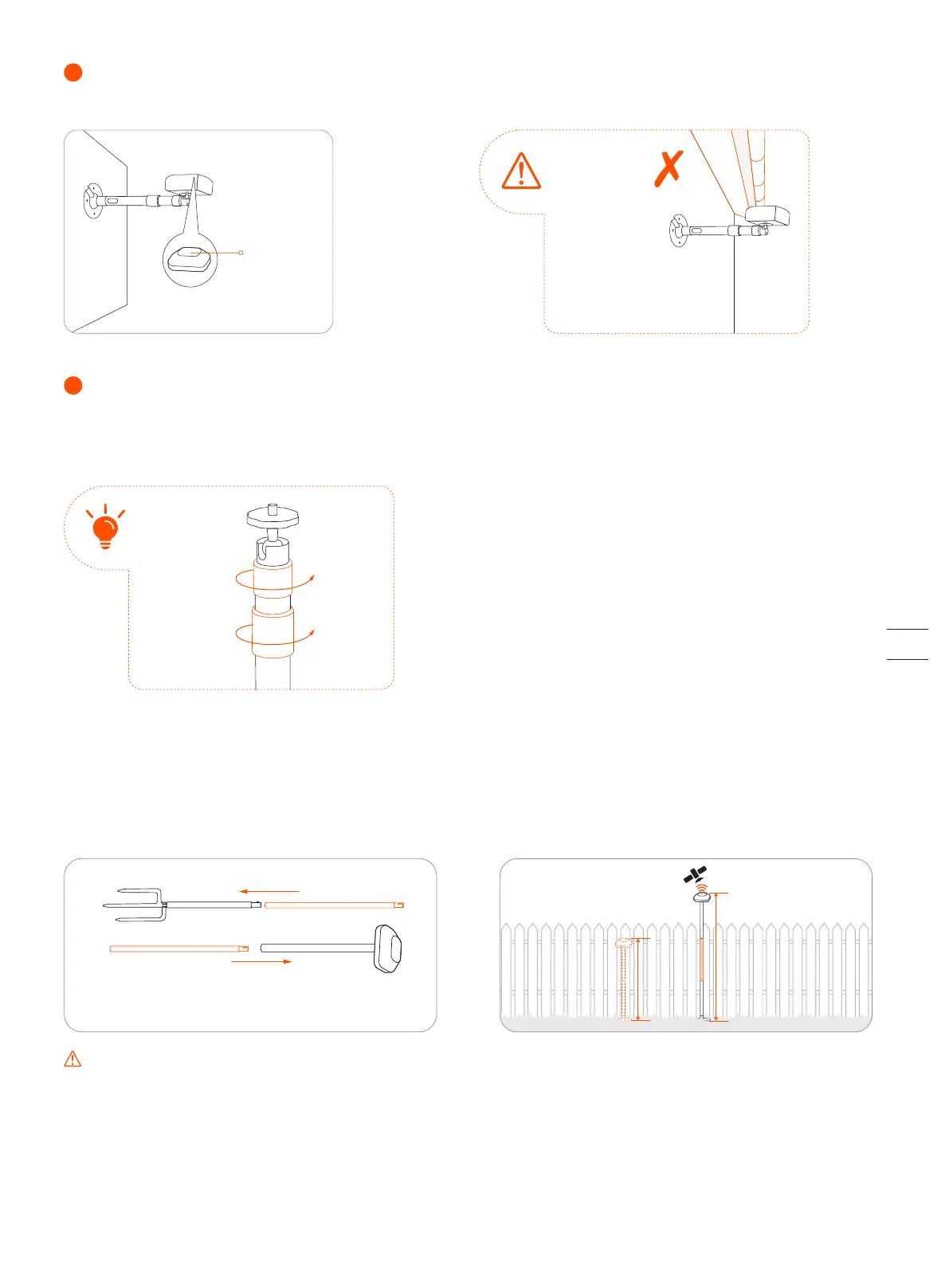

Hold the GNSS antenna to a place where you want to install it. Make sure that the top surface of the antenna points straight up.
Make sure there
is nothing
blocking the
antenna.
• For a wooden surface, just secure the base with the self-tapping screws.
• For harder surfaces (like concrete, brick and stone), drill two 8 mm holes, insert the expansion tubes, and then secure
the base by tightening the screws.
You can rotate the
collars to adjust the
angle of the antenna
and the length of the
center column.
Top surface
4
Secure the installation base.
5
Adjust the length with 1 or 2 pieces of extension
poles, up to 1 m (3.3 ) of extension.
1 m (3.3 )
1.5 m (4.9 ) or
2 m (6.6 )
