Seiko 6N76A - Setting Wheel Pin Disassembly and Reassembly

TECHNICAL GUIDE
Cal. 6N76A
11/18
●

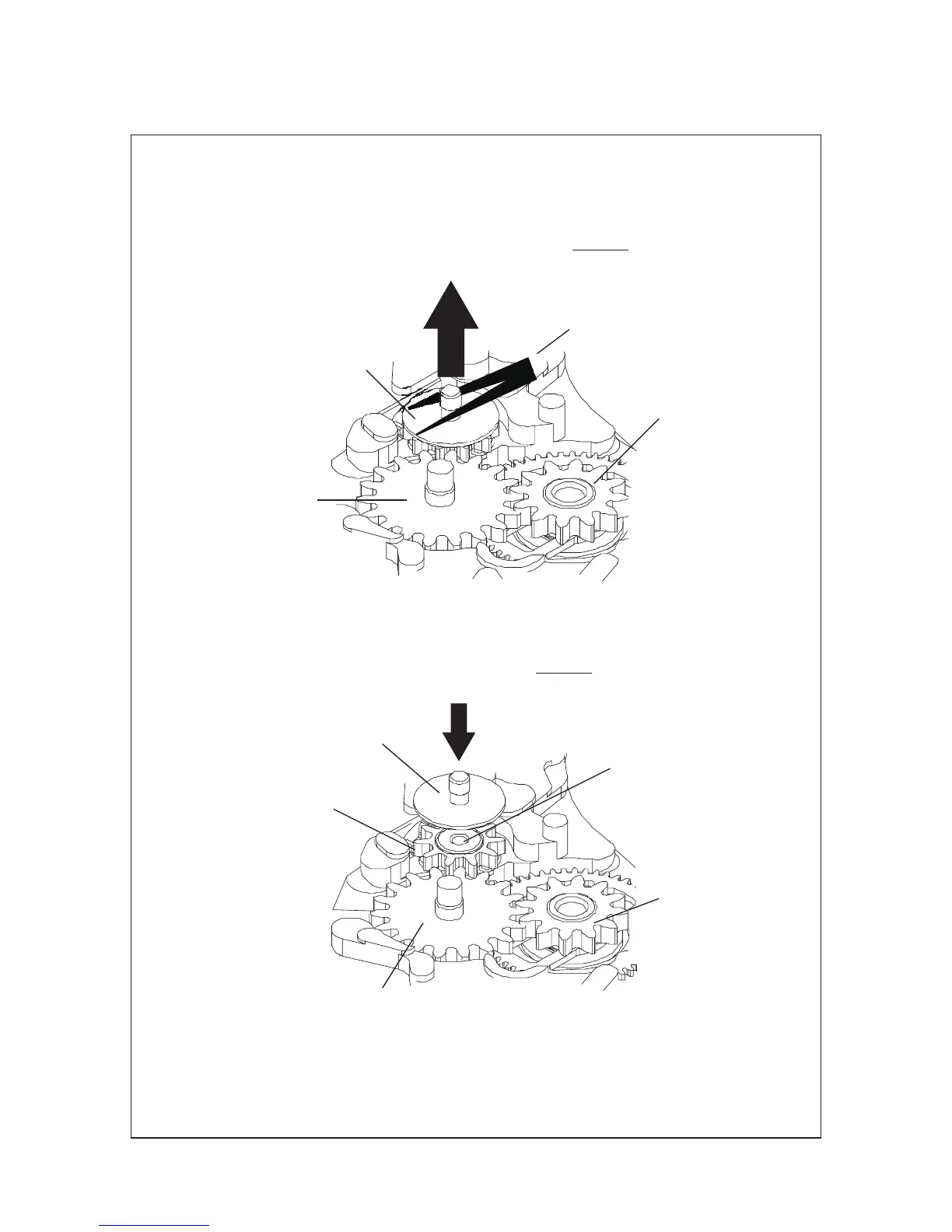

Remarks for disassembling and reassembling PIN FOR SETTING WHEEL
Notes: In disassembling and reassembling,

take care not to damage the portion that is assembled to
the pin. (The portion that is assembled to the pin is made of plastics and can be damaged easily.)
1) In disassembling, pick up the pin vertically from the main plate with care.
2) In reassembling, push the pin vertically to the main plate with care.

Center wheel and pinion
Minute wheel and pinion
㉚

Setting wheel
Main plate
(The portion that is
assembled to the pin.)
Center wheel and pinion
Minute wheel and pinion
㉚

