Seiko 6N76A - Train Wheel Bridge Setting Procedure; Train Wheel Setting Lever Installation Procedure

TECHNICAL GUIDE
Cal. 6N76A
10/18
●

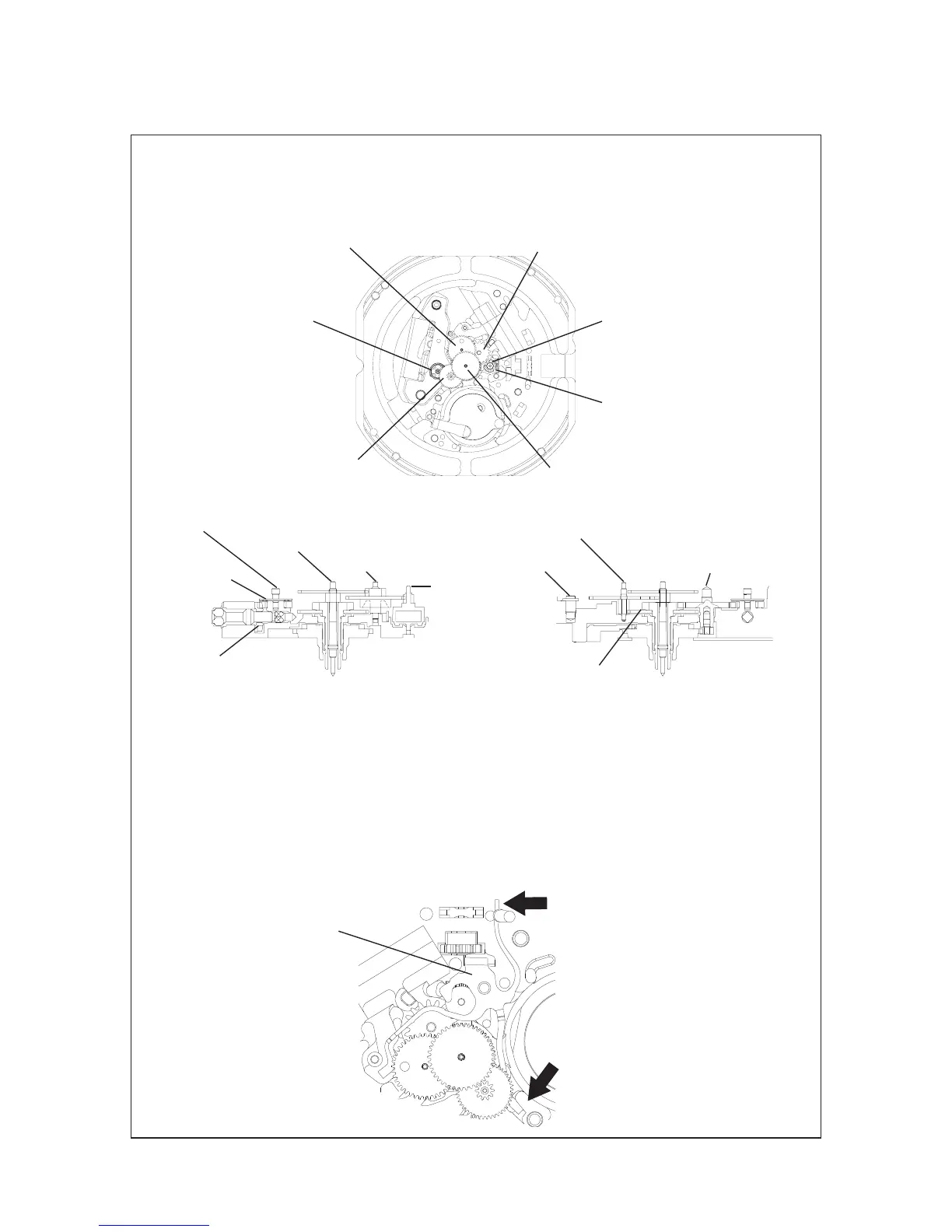

Remarks for setting position of the TRAIN WHEEL BRIDGE
Notes: Since the fifth wheel and pinion and step rotor are made of plastic, take care not to damage
them in disassembling and reassembling.
Third wheel and pinion Minute wheel and pinion
Setting wheel
Clutch wheel
Fourth wheel and pinion
Fifth wheel and pinion
Step rotor
Clutch wheel
Fourth wheel and pinion
Fifth wheel and pinion
Step rotor
Pin for setting wheel
Setting wheel
Third wheel and pinion
Minute wheel and pinion
Reset pin
Center wheel and pinion
●
Remarks for setting position of the TRAIN WHEEL SETTING LEVER
Notes:
 
 
