TECHNICAL GUIDE
Cal. 6N76A
9/18
●
Remarks for installing the BATTERY CONNECTION (+)

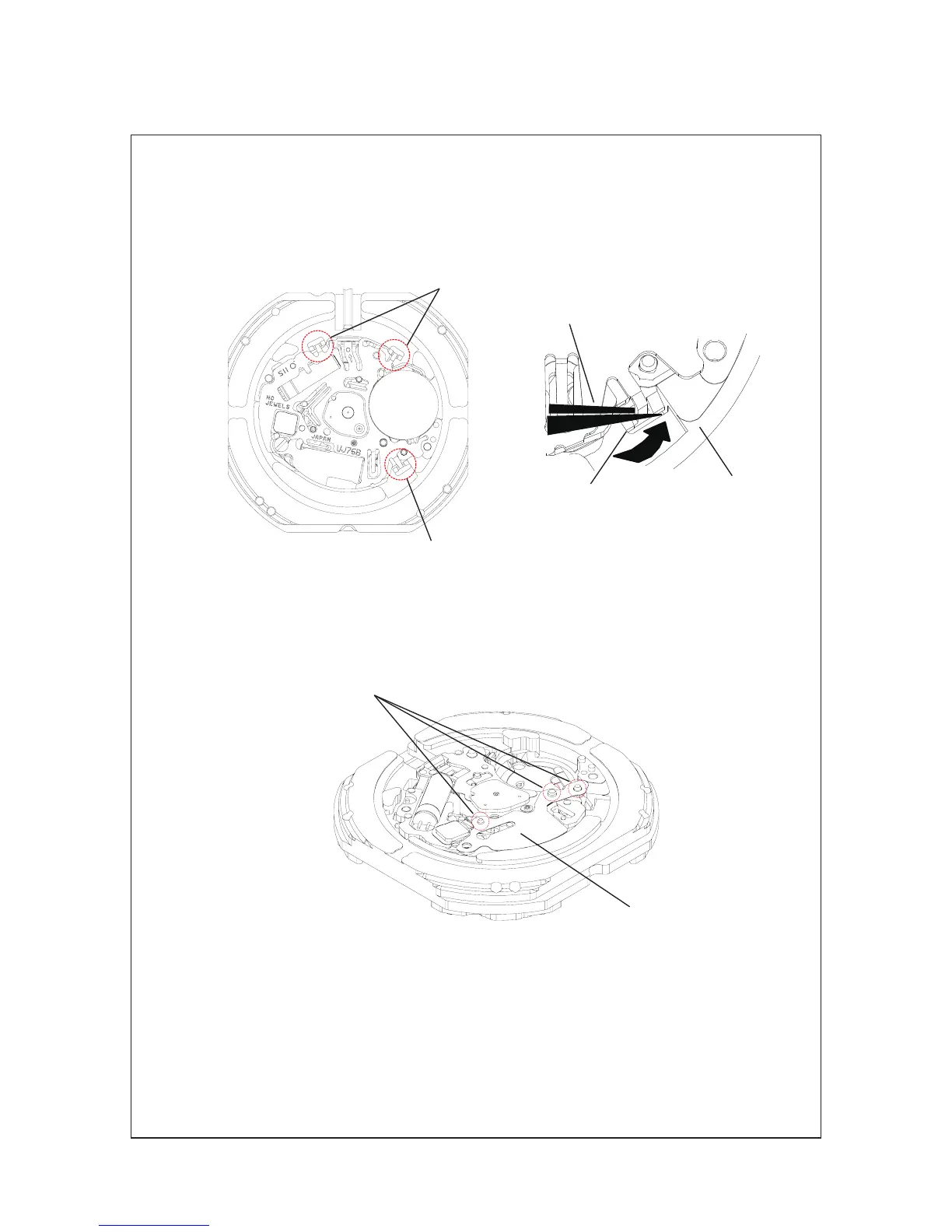

Set it so that the hook portions (3 places) catch the main plate (Fig.1&2).
In disassembling and reassembling, take care not to deform the hook portions.
plate.
[Fig.1]
[Fig.2]
Hook portion
Hook portion
Main plate
Hook portion
●
Remarks for setting position of the INSULATOR
should be set securely with the three pins as bellow.
Pin
⑱
INSUL ATOR
