TECHNICAL GUIDE
Cal. 6N76A
7/18
(refer to the picture on the right) in order to
pull out the crown with the stem completely.
REMaRKs oN DisassEMBliNG aND REassEMBliNG thE MoVEMENt
●

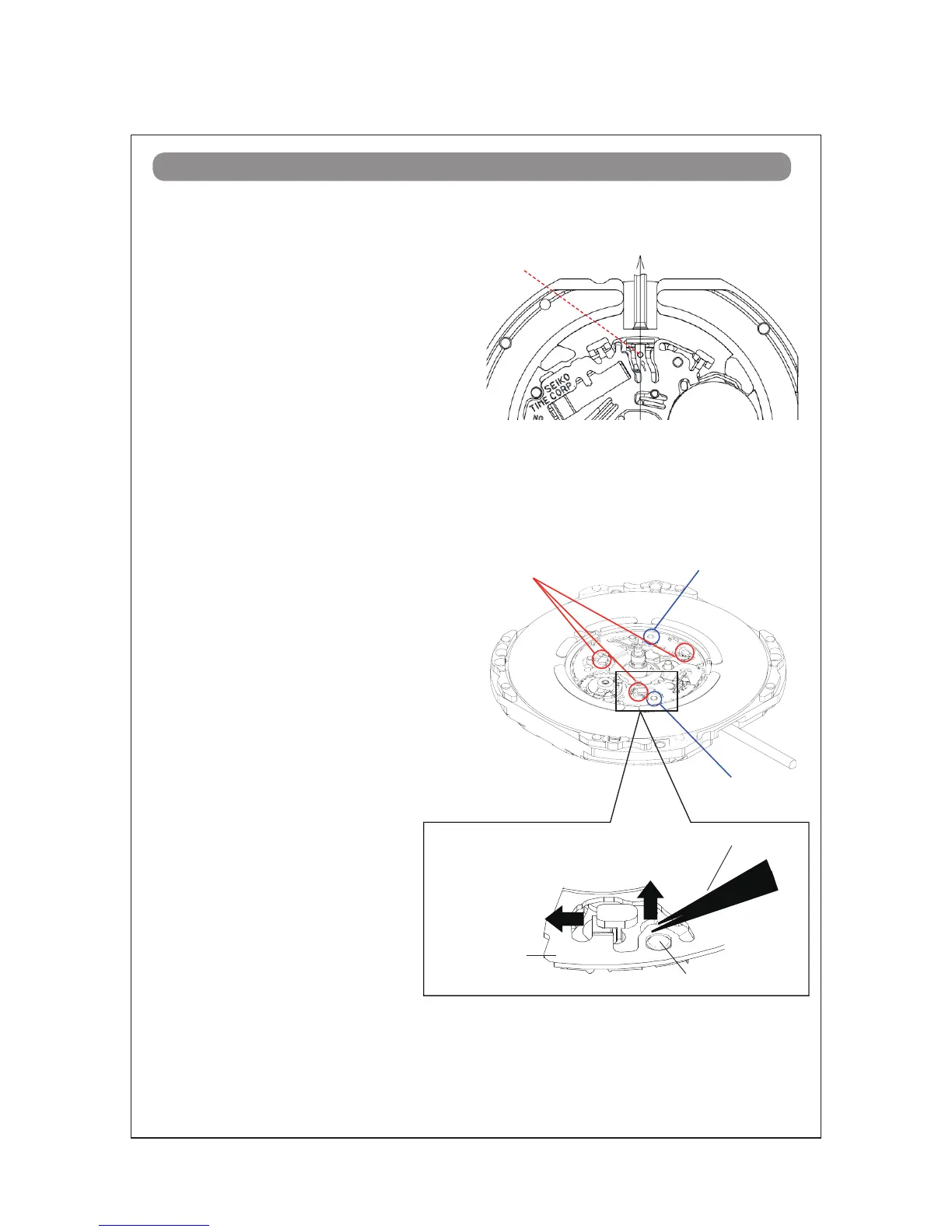

How to remove the SETTING STEM before dismantling the movement
Crown position: normal (=0) position.
A
●
How to remove the DATE DIAL GUARD
1) Lightly lift the A portion of the date dial
guide pin, and then move it in the clockwise
direction until it gets off the guide pin.
2) Release the B portion of the date dial guard
in the same way as described above, and
then move it in the clockwise direction until
it gets off the guide pin.
3) Check that all three protrusions of the date
dial guard have come off from the main
plate, and then remove the date dial guard.
The date dial guard has three protrusions to be caught under the main plate, and it is also fixed by
two guide pins.
⑧
Protrusion
B portion
A portion
UP
Date dial guard
Guide pin
To Next Page
