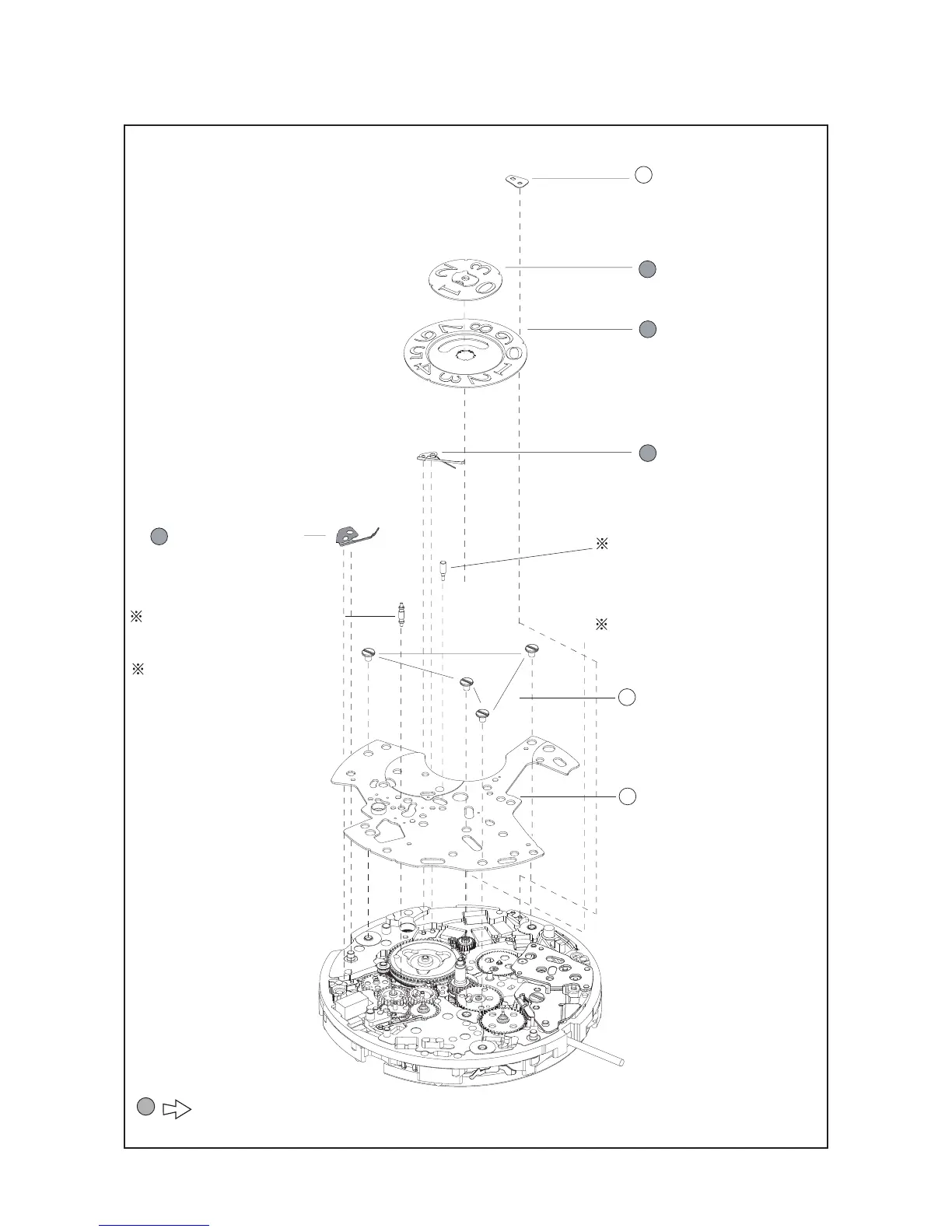

Seiko 7D56A - PARTS LIST: CALENDAR UNIT (1); Date Disk Holder and Jumpers

1.Positioning pin A for spring
for intermediate wheel
for indicator for month
CALENDAR TRAIN
BRIDGE SCREW
0012 354
DATE DISK
FOR UNIT’S DIGIT
DATE DISK
FOR TEN’S DIGIT
DATE DISK
HOLDER
0839 506
CALENDAR TRAIN
BRIDGE
0125 514
YEAR INDICATOR
DRIVING WHEEL
SPRING
0353 529
DATE JUMPER
FOR UNIT’S DIGIT
1024 500
To be removed while
assembling
To be removed while
assembling.
1. Pisitioning pin B for alignment
2.This is the repairing tool
(7D48A-JP).
Please look at the Watch
Repairing Tool Catalogue.
2. This is the repairing tool
(7D48A-JP).
Please look at the Watch
Repairing Tool Catalogue.
12
9
8
10
11
13
14
[CALENDAR UNIT (1)]
Please refer to the remarks on the following pages.
Lubricating of some parts is shown in “ REMARKS ON DISASSEMBLING AND REASSEMBLING
THE MOVEMENT.”
Cal. 7D56A
6/44
PARTS LIST
