Seiko H024A - Page 3

Cal. H024A

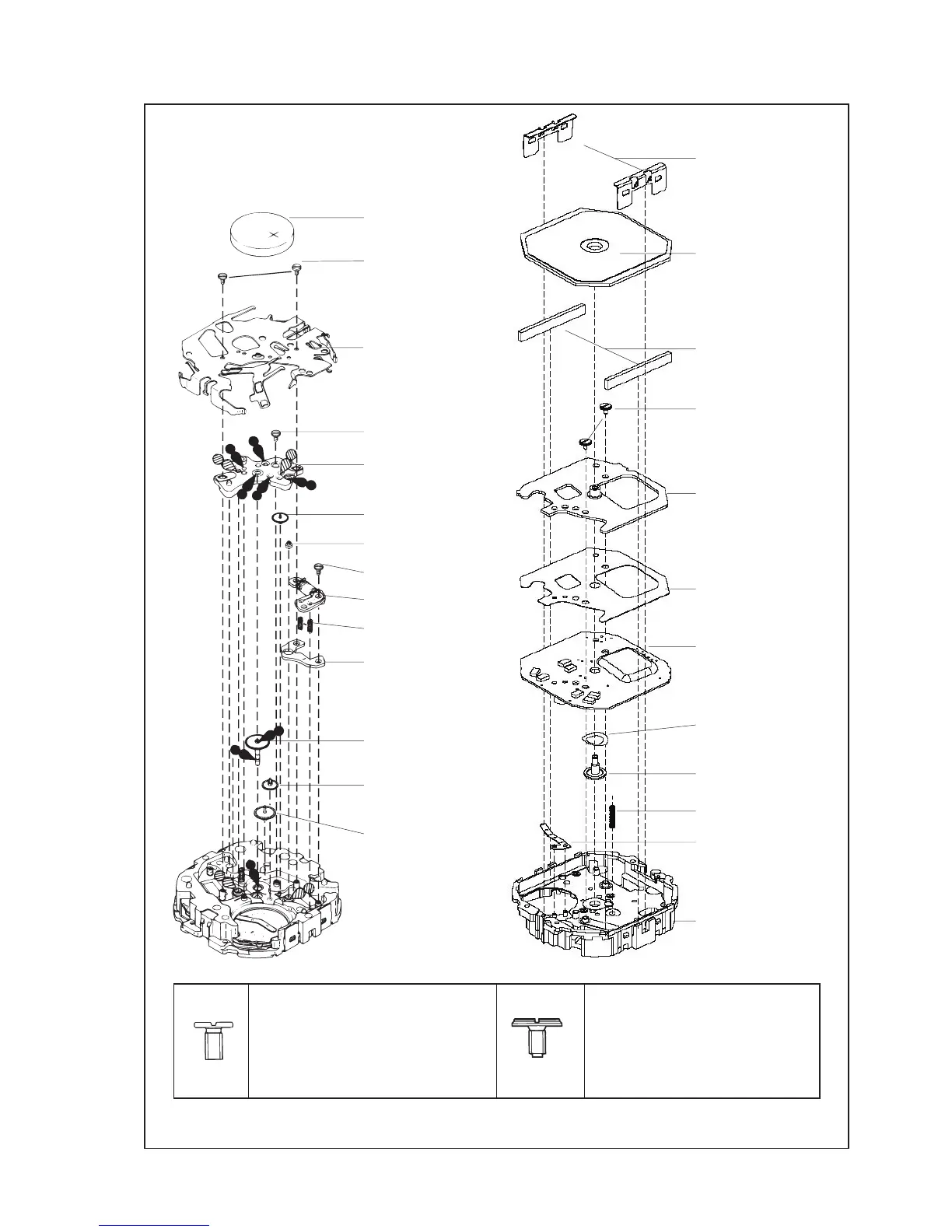

PARTS CATALOGUE
3/7
8
9
qa
qs
qd
qf
qg
q;
qh
qj
qk
w;
wa
wd
● For the parts , , , and , please see the remarks on the following pages.
ql wd e;8q;
Battery connection (–)
4270 380
Buzzer lead terminal
4246 368
Dial washer
0491 233
Insulator for circuit block
4216 366
Connector guard
4398 371
Connector guard screw
0012 316
Connector
4313 366
Liquid crystal panel
Liquid crystal panel frame
4540 366
0012 316
• Connector guard screw
(2 pcs.)
0012 168
• Switch spring screw
(2 pcs.)
• Train wheel bridge
screw(1 pc.)
• Coil block screw
(1 pc.)
Battery
(See the front page.)
Switch spring screw
0012 168
Train wheel bridge screw
0012 168
Train wheel bridge
0125 366
Intermediate center wheel
and pinion (B) 0817 155
Step rotor
4146 154
Coil block screw
0012 168
Coil block (B)
4002 366
Coil lead terminal
4246 367
Center wheel and pinion
Intermediate center wheel
and pinion (A)
0817 154
Hour wheel
Minute wheel and pinion
0261 380
ws
Main plate
Switch spring
Rotor stator (B)
4239 454
wf
wg
wh
wj
wk
wl
ea
es
ed
e;
ql
Circuit block
4004 139
0100 366
