6.5 OUTER CASING STRUCTURE
Figure 6-2 shows a sample structure for the outer casing.
* Provide a gap of a few mm between the printer and the outer casing since the area over the thermal head becomes very
hot.

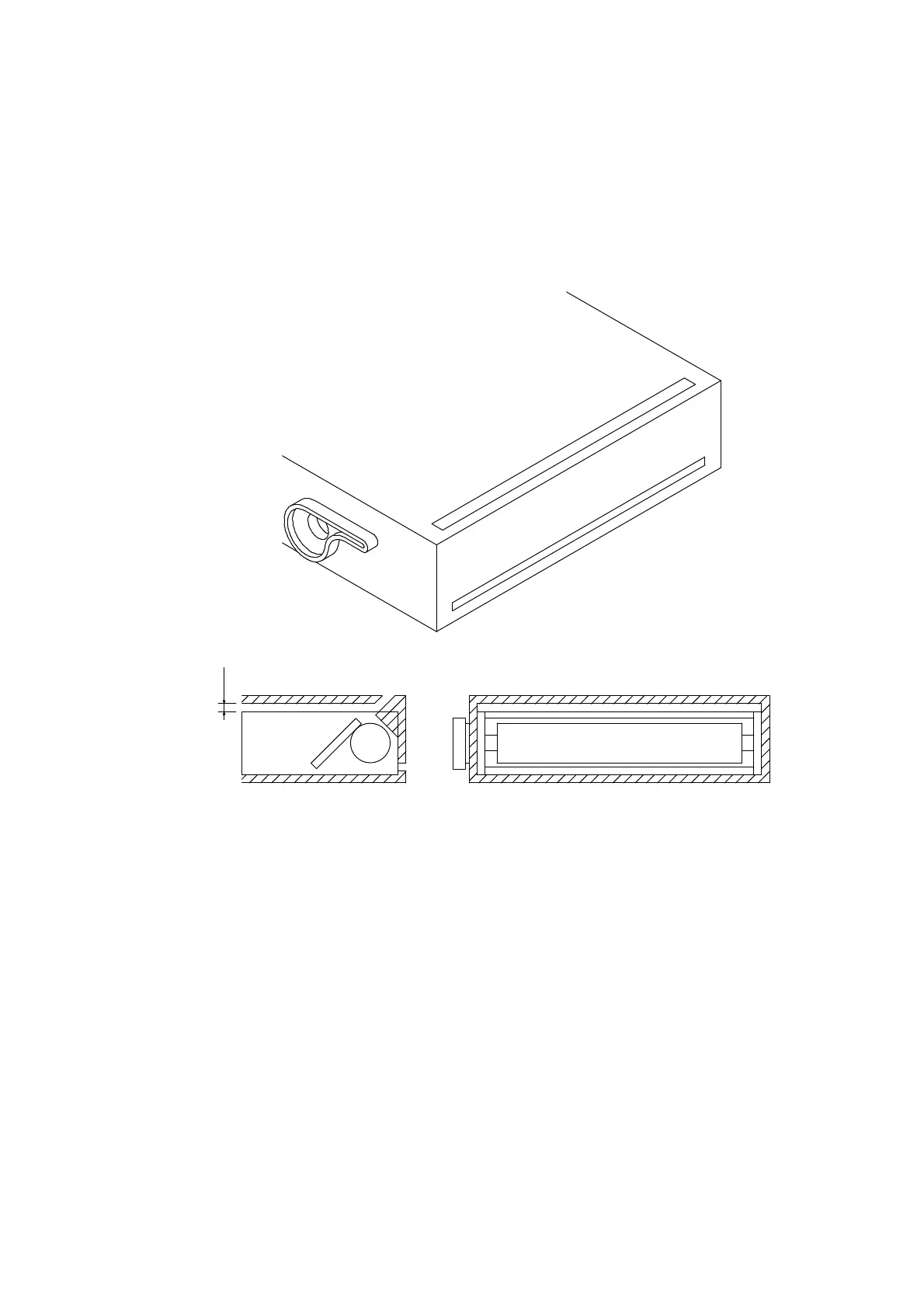

Figure 6-2 Sample Outer Casing Structure
*
