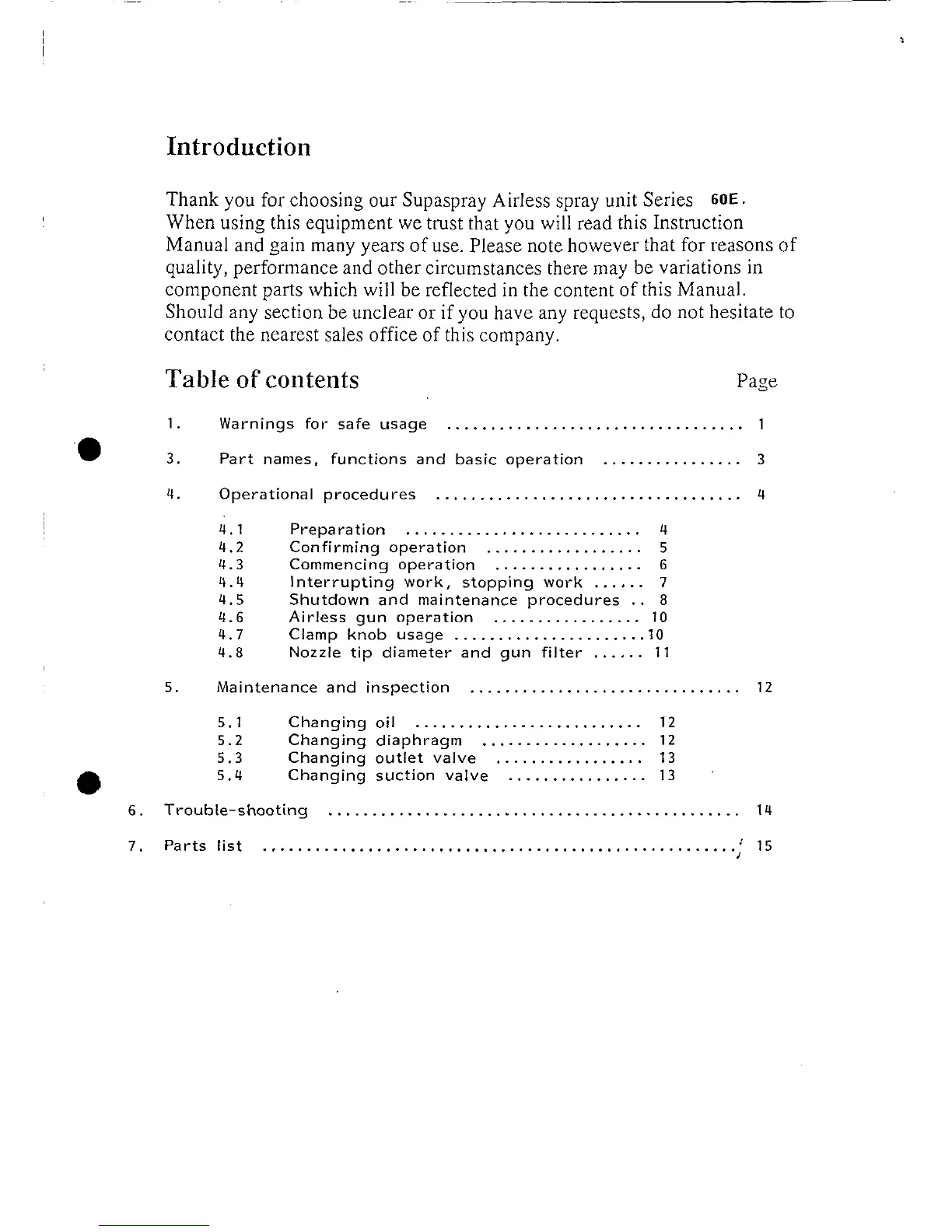

Introduction
Thank you for choosing our Supaspray Airless spray unit Series 60E.
When using this equipment we trust that you will read this Instruction
Manual and gain many years of use. Please note however that for reasons of
quality, performance and other circumstances there may be variations in
component parts which will be reflected in the content of this Manual.
Should any section be unclear or if you have any requests, do not hesitate to
contact the nearest sales office of this company.
Table of contents Page
1. Warnings for safe usage .................................. 1
3. Part names, functions and basic operation ................ 3
4. Operational procedures ................................... 4
4.1 Preparation ........................... q
4.2 Confirming operation .................. 5
4.3 Commencing operation ................. 6
4.4 Interrupting work, stopping work ...... 7
4.5 Shutdown and maintenance procedures .. 8
4.6 Airless gun operation ................. 10
4.7 Clamp knob usage ...................... 10
4.8 Nozzle tip diameter and gun filter...... II
5. Maintenance and inspection ............................... 12
5.1 Changing oil .......................... 12
5.2 Changing diaphragm ................... 12
5.3 Changing outlet valve ................. 13
5.4 Changing suction valve ................ 13
6. Trouble-shooting ............................................... 14
7. Parts list ...................................................... : 15
