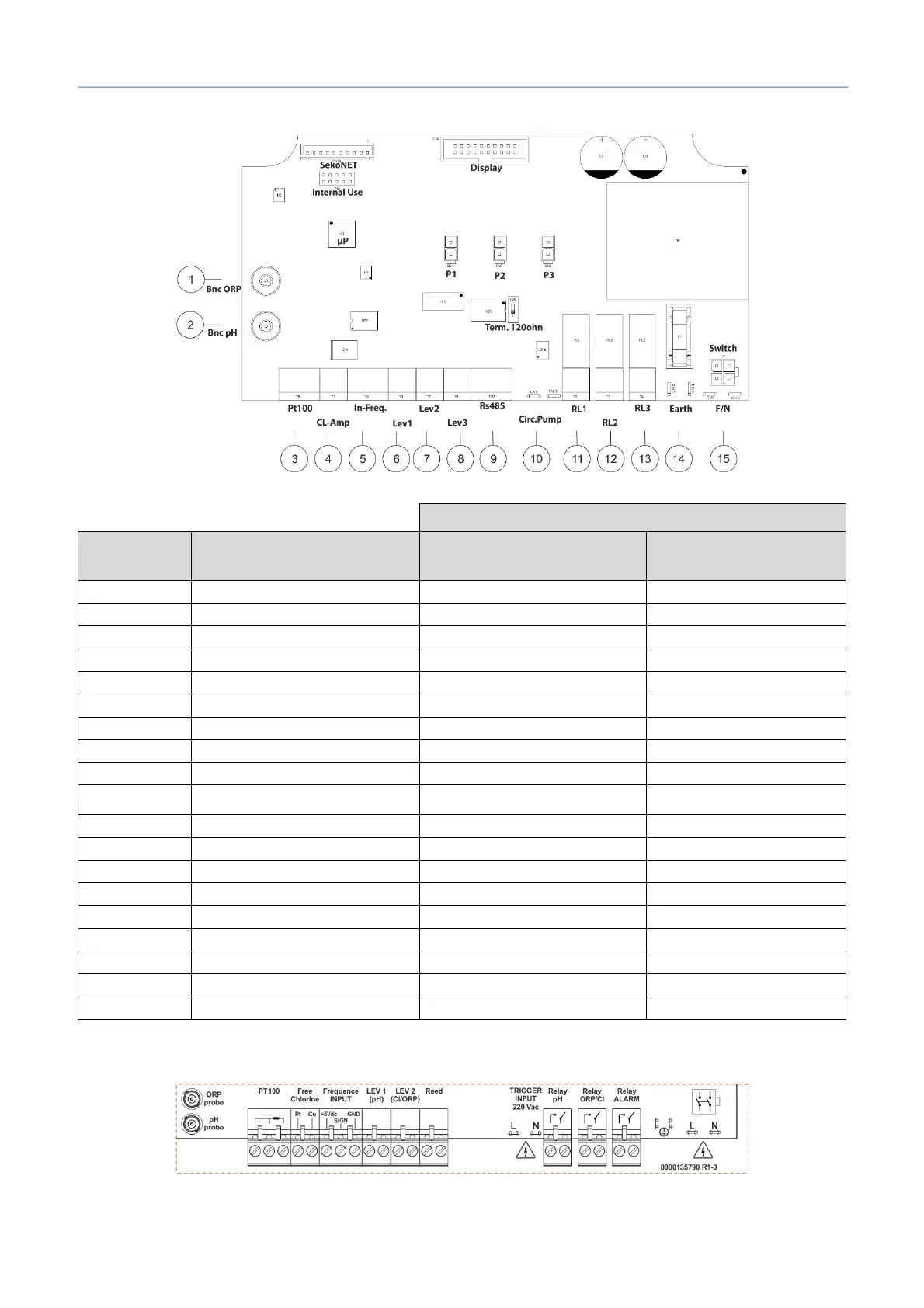

3. ELECTRICAL CONNECTIONS
Label connections
Double pump system
Clamp
Description
PoolDose
pH · ORP
PoolDose
pH · ORP · CL
1
Input Probe
ORP
ORP
2
Input Probe
pH
pH
3
Input Probe
TEMP (PT100)
TEMP (PT100)
4
Input Probe
Not used
Free Chlorine
5
Input Freq. signal
Flow Rate (Freq. Input)
Flow Rate (Freq. Input)
6
Level (product tank)
pH Level probe
pH Level probe
7
Level (product tank)
Chlorine (ORP) level probe
Chlorine level probe
8
Level (External Reed flow sensor)
Flow (REED sensor)
Flow (REED sensor)
9
Serial Port
Not present
Not present
10
Trigger Input 220Vac (High Voltage)
Circulation Pump
(220Vac input)
Circulation Pump
(220Vac input)
11
Output Relay R1
RL1 AUX1 pH
RL1 AUX1 pH
12
Output Relay R2
RL2 AUX2 OPR/Chlorine
RL2 AUX2 OPR/Chlorine
13
Output Relay R3
RL3 Alarm
RL3 Alarm
14
Earth connector
Earth
Earth
15
Power Supply
220-240 Vac 50-60 Hz (F/N)
220-240 Vac 50-60 Hz (F/N)
P1
Peristaltic pump connection
pH
pH
P2
Peristaltic pump connection
Chlorine (ORP)
Chlorine
P3
Peristaltic pump connection
Not used
Not used
SekoNet
WiFi Module
WiFi card (dedicate code)
WiFi card (dedicate code)
