5. SETTING PROGRAM
Program Setup – Press for 5 seconds
At the entry of each menu item, the parameter can be directly modified using the arrow keys ( and ).
Confirmation of the current setting and switching to the next item is done by pressing the button.
The menu has a circular structure: once you arrive at last item, the confirmation of the parameter set by pressing
, determines the return to the first menu item.
1 Language – It is possible to select between 5 available languages: EN, FR, IT, DE, ES
2 pH
§ Setpoint – 7.4pH (5-9pH)
§ Setpoint Type: – Acid (Acid/Alka)
§ Time on = 30seconds (range from 1 to 360 seconds)
§ Time off = 60seconds (range from 1 to 360 seconds)
§ Temperature: 25°C; set °C/°F and the manual value
§ OFA Alarm: Off, 1-60’ (minutes)
3 ORP
§ Setpoint – 700 mV (400-850mV)
§ Setpoint Type: Low (Low/High)
§ Time on = 30seconds (range from 1 to 360 seconds)
§ Time off = 60seconds (range from 1 to 360 seconds)
§ OFA Alarm: Off, 1-60’ (minutes)
§ Note: The ORP dosing, in the presence of Chlorine has no effect on the dosing pump,
but can handle the Aux2 Relay with ON/OFF activation with respect to the setpoint.
4 Chlorine
§ Setpoint – 1.2 ppm(0.3-3.0 ppm)
§ Setpoint Type: Low (Low/High)
§ Time on = 30seconds (range from 1 to 360 seconds)
§ Time off = 60seconds (range from 1 to 360 seconds)
§ OFA Alarm: Off, 1-60’ (minutes)
5 Advanced menu
§ Circulation pump – (Enabled/Disabled)
§ In Freq (Input flow rate)
• OFF/ON
• Pulse/Liter:1 or Liter/pulse:1 – Set value
• Unit: L or m³
§ Calibration pH: 2 points, 1 point, Reference, Disable
§ Calibration ORP: 1 point, Reference, Disable

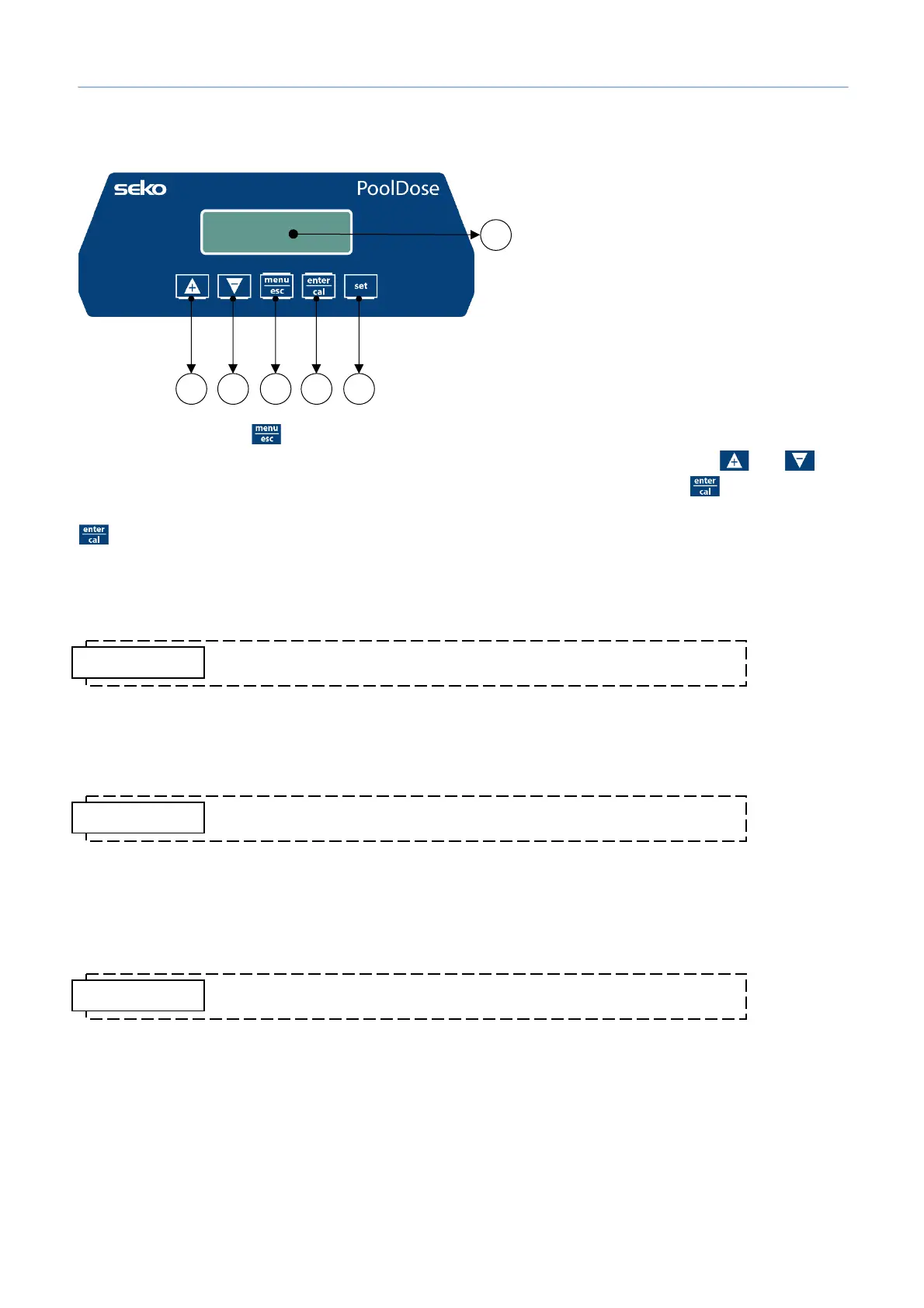

1) Button to increase the value
2) Button to decrease the value
3) Button Menu/Esc
4) Button Cal/OK
5) Button to set the setpoint
6) Digital display
