Sel 651RA - Zip Tie Wires

Date Code 20160329 SEL-651RA Recloser Control
5

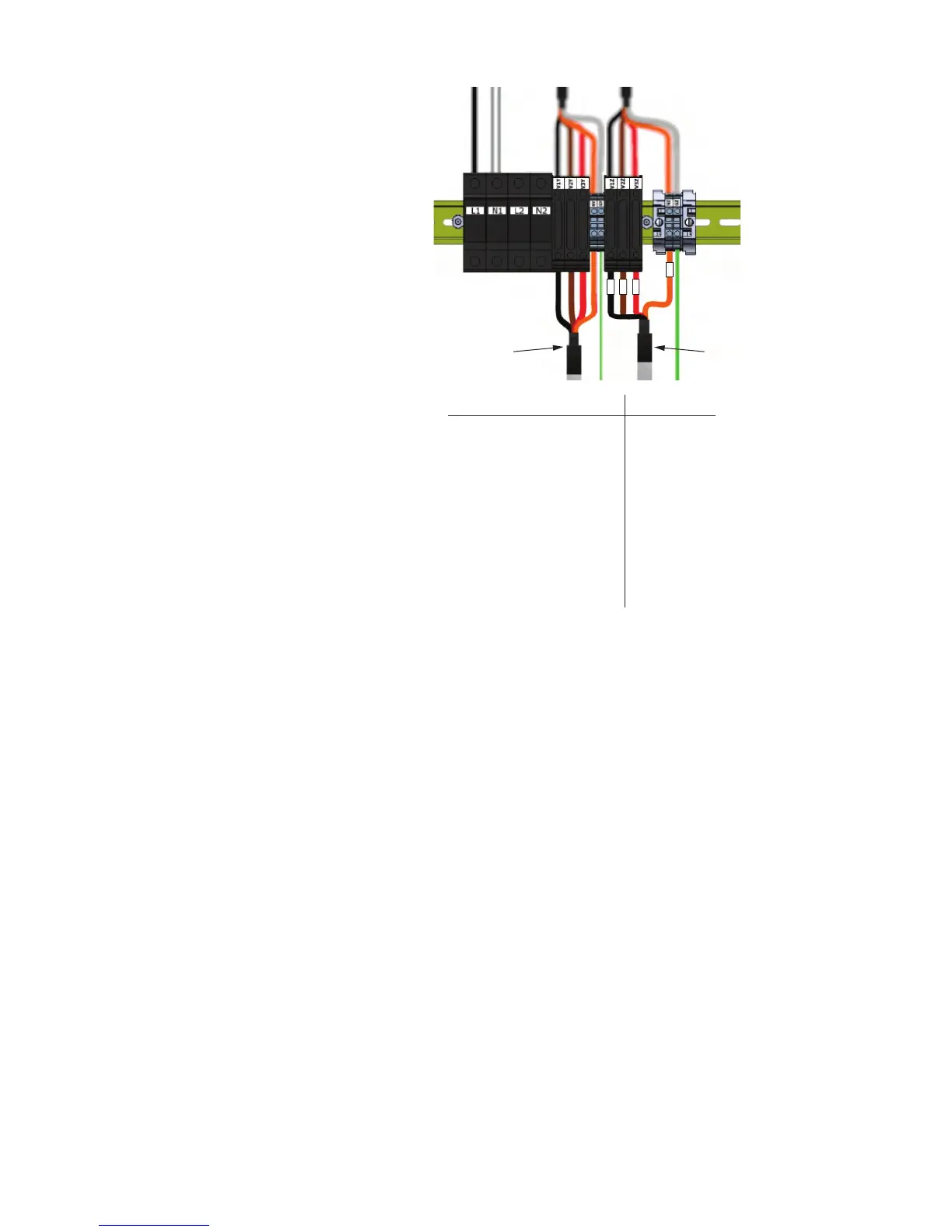

Figure 6 Attach Wires to Fuse Block
Step 5. Zip tie wires as necessary.
From: 8-Pin
Black Wire (A, No Heatshrink)
Brown Wire (B, No Heatshrink)
To: Fuse Block
V1Y - Bottom
V2Y - Bottom
Red Wire (C, No Heatshrink)
Orange Wire (D, No Heatshrink)
V3Y - Bottom
NY - Bottom
Black Wire (E, Heatshrink)
Brown Wire (F, Heatshrink)
V1Z - Bottom
V2Z - Bottom
Red Wire (G, Heatshrink)
Orange Wire (H, Heatshrink)
V3Z - Bottom
NZ - Bottom
Z-sideY-side
