Sel SEL-2600 - SEL-701 Motor Relay Application

SEL-2600 RTD Module Date Code 20000525
SEL-701 Motor Relay Application
4
Table 1 RTD Type and Location Worksheet.
SEL-701 Motor Relay Application
The SEL-701 Motor Relay provides comprehensive motor protection, includ-
ing short circuit, load loss, load jam, and frequent starting protection as well as
unbalance current and phase reversal protection. The patented motor thermal pro-
tection element used by the SEL-701 Motor Relay accurately tracks the heating
effects of overloads and unbalance current.
Combining the SEL-2600 and the SEL-701 Motor Relay enhances this list of
protection features by adding remote RTD-based thermal protection.

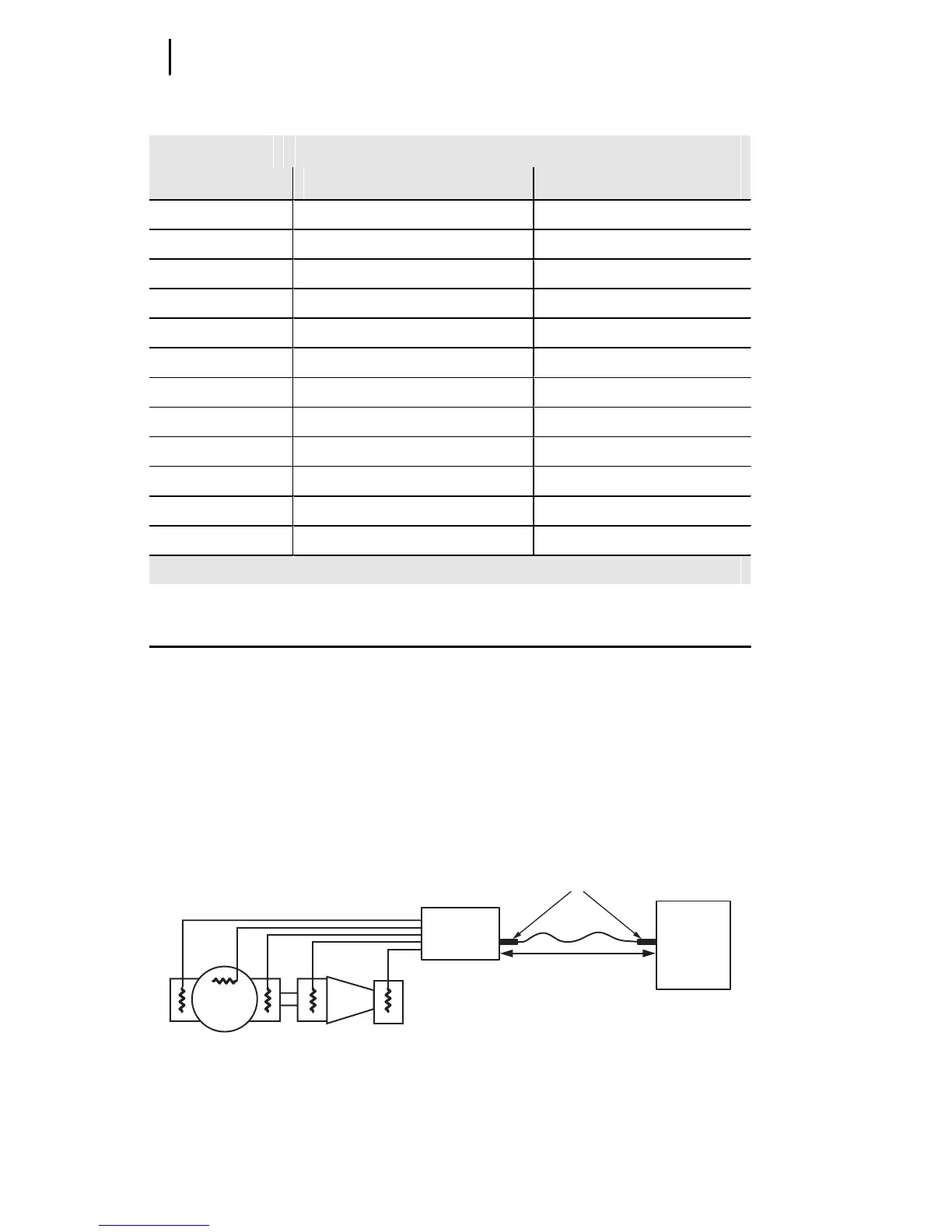

Figure 1 Motor Protection with the SEL-701 Motor Relay.
Table 1 RTD Type and Location Worksheet
RTD Input RTD Location RTD Type
RTD1
RTD2
RTD3
RTD4
RTD5
RTD6
RTD7
RTD8
RTD9
RTD10
RTD11
RTD12
Motor Load
SEL-2600 SEL-701
Relay
Fiber-Optic Ports
(built into SEL-2600 & SEL-701)
Up to 500 meters via
single fiber-optic cable,
SEL
p
art number C801FD
Up to 12 RTD inputs, plus
one contact (speed switch, etc.)
