J.P. SELECTA s.a. Ctra. NII Km 585.1 Abrera 08630 (Barcelona) España Tel (34) 93 770 08 77 Fax (34) 93 770 23 62
e-mail: selecta@jpselecta.es - http://www.jpselecta.es
GUIDE DE LUTILISATEUR CODE 80158.02 REV 0 02/10/09 (Sous réserve de modification) Pag.: 8
Sassurer que la tension d’alimentation correspond
bien à celle indiquée sur la plaque de
caractéristiques de l’appareil.
Avant d’utiliser l’appareil, sassurer de sa bonne
connexion à la prise de terre.
Pour changer la prise de courant, ne pas oublier
les indications suivantes :
ble bleu : Neutre.
ble marron : Phase.
ble jaune/vert : Terre.
INSTALLATION
Placer le bloc métallique chauffant relié à l’unité de
régulation de température et temps sur une surface plane,
horizontale et nivee.
Au moyen du câble de connexion fourni, connecter luni
de régulation RAT 2. Connecter la prise au réseau de
l’unité RAT 2.
Si l’on sire utiliser une trompe à vide pour l’élimination
de vapeurs, il est cessaire de disposer d’une prise
d’eau courante et d’écoulement. Dans le cas contraire
il est recommandé dinstaller le bloc digesteur au
dessous d’une cloche extractrice.
INSTALLATION
Place metallic block and control unit on an horizontal,
flat and out levelled surface.
With the connection cable supplied connect the RAT
unit and the corresponding block. Connect the RAT
unit at mains.
Be in mind that if you have to use a water jet pump you
need install equip near a water tap an a waste pipe. In
other case it is advisable install metallic block under
vent air extractor
Be sure that the voltage supply is the same as the
one indicated on the characteristics plate.
Do not use the apparatus if it is not earthed.
If you have to change the plug cap be in mind the
following:
Blue cable : Neutral.
Brown cable : Phase.
Yellow/green cable : Earth.

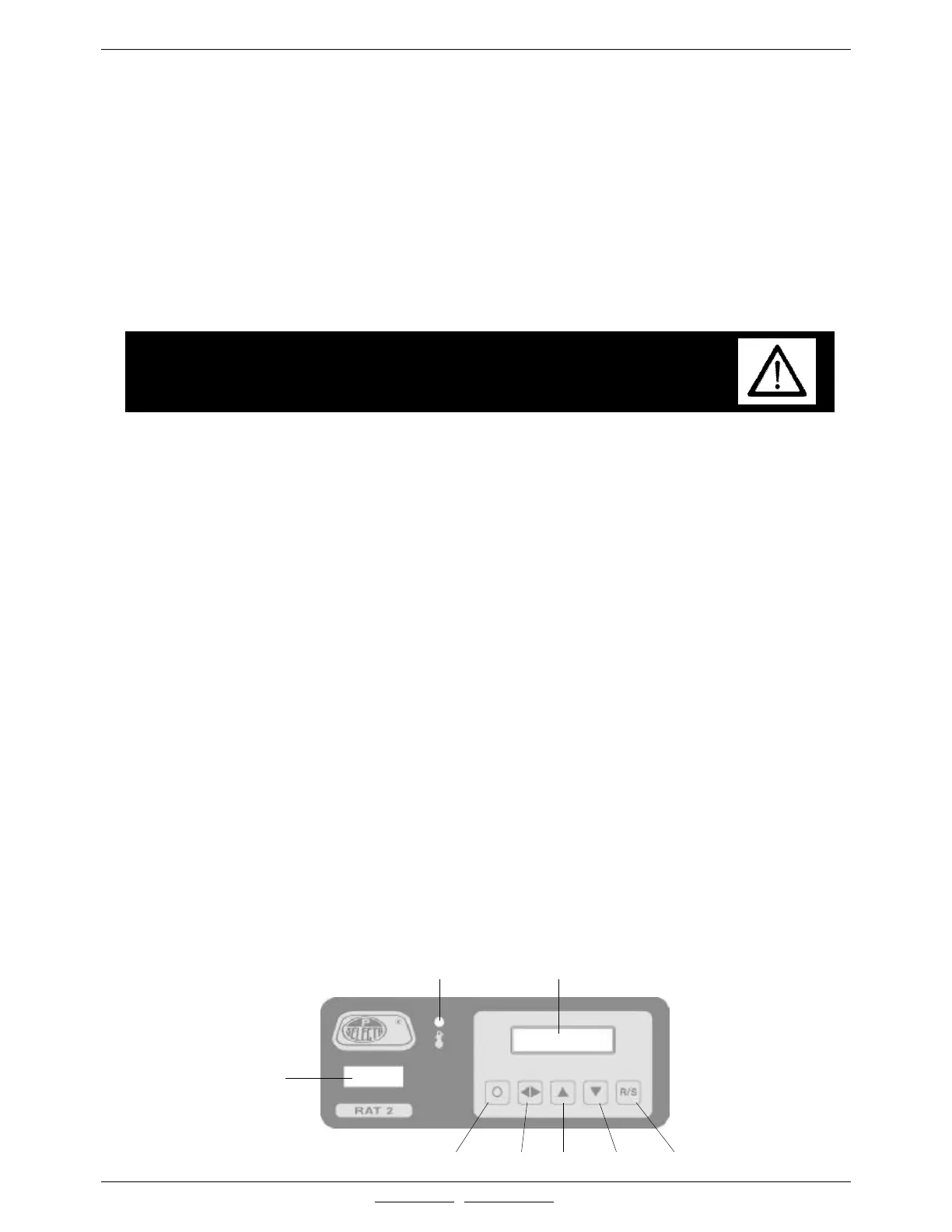

OPERATION RAT-2 UNIT
CONTROL PANEL:
1. Main switch (POWER) with green indicator lamp.
2. Alphanumeric screen
3. Menu key
4. “Validate key
5. Increase value key
6. Reduce value key
7. “Start/Stop key
8. Overtemperature pilot lamp
MODE OPERATOIRE
UNITE RAT-2
PANNEAU DE COMMANDES
1. Interrupteur géral (POWER) avec témoin vert.
2. Ecran alphanumérique
3. Touche «Men
4. Touche «Valide
5. Touche «Augmentation valeur».
6. Touche «Diminution valeu
7. Touche «Marche/Arrê
8. Témoin indicateur de surchaufffe.
¡ATTENTION ! IMPORTANT POUR VOTRE SECUTIRITE
CAUTION!!! IMPORTANT FOR YOUR SAFETY
1
2
3 4
8
765
