Selectron CPU 723-T User Manual

CPU 72x
24.05.2019 page 7
1.3 Extensibility
All CPU 72xs can be expanded with the following modules.
 DIT 70x Extension modules with digital inputs
 DOT 70x Extension modules with digital outputs
 DDT 70x Extension modules with digital inputs and outputs
 AIT 70x Extension modules with analog inputs
 AOT 70x Extension modules with analog outputs
 PWT 70x Extension modules with PWM outputs
The upper limit for extension modules is 6.
(Consider maximum power consumption of the extension modules. See
chapter "Extension Modules MAS 72x", 1.2 Power Consumption on the MOBI Bus.)

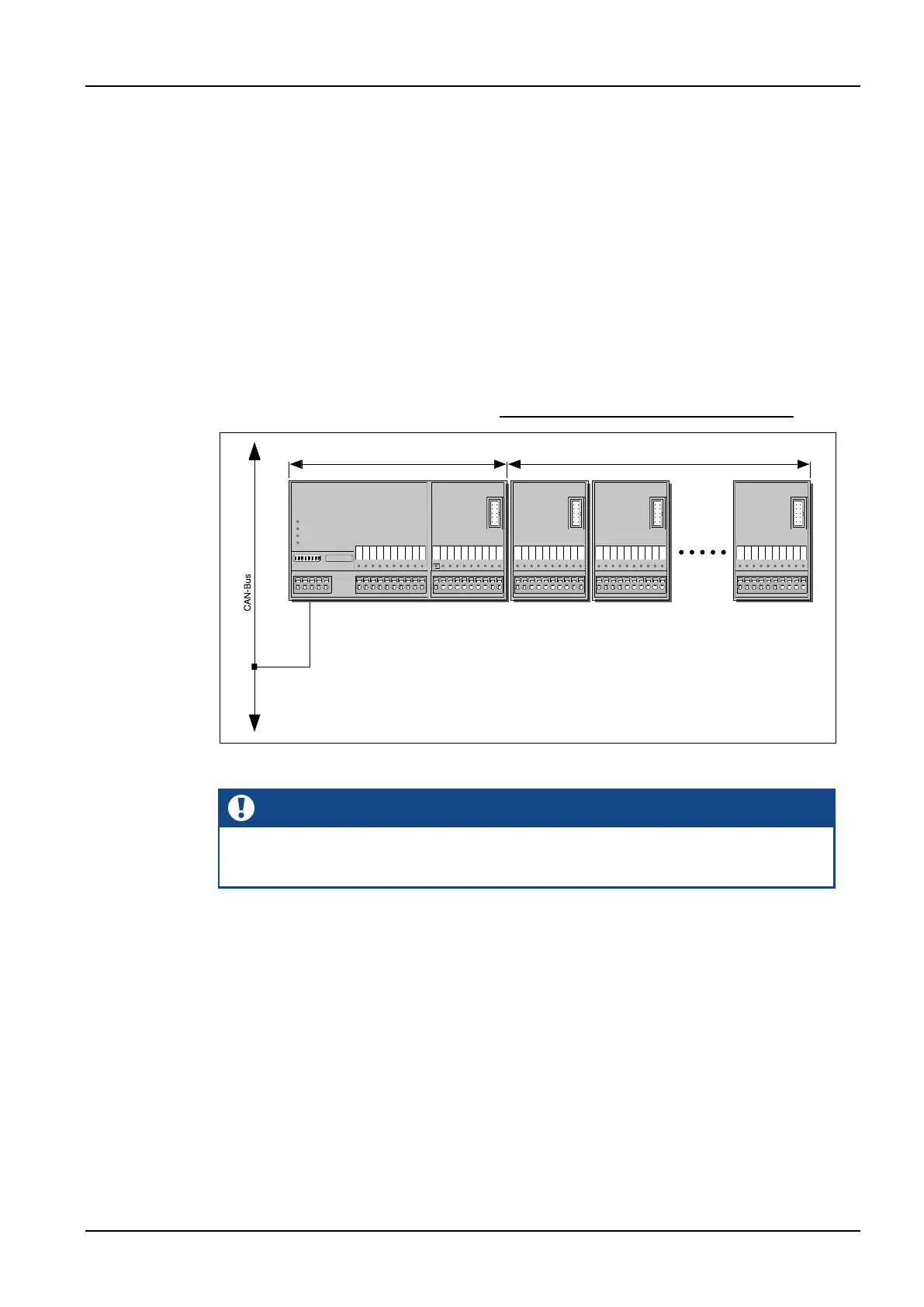

Fig.05: Extensibility CPU 72x
IMPORTANT
Never connect and disconnect extension modules when the unit is live, since
this may result in irreparable damage to the module.
0V US 00 01 02 03 04 05 06 07
OUTPUT
05 06 07
INPUT
S
UC
UL
CAN
S1
DDC 701-T
04030201000V 0V 00 01 02 03 04 05 06 07
DIT 701-T
0V 00 01 02 03 04 05 06 07
DIT 701-T
0V 00 01 02 03 04 05 06 07
DIT 701-T
1. 2. 6.
Knotenmodul Erweiterungen
