1.4 Terminal Assignment
1.4.1 Overview
1.4.1.1 CPU 723-T
The CPU 723-T is wired via two 5-pole, two 3-pole and one 10-pole connectors.

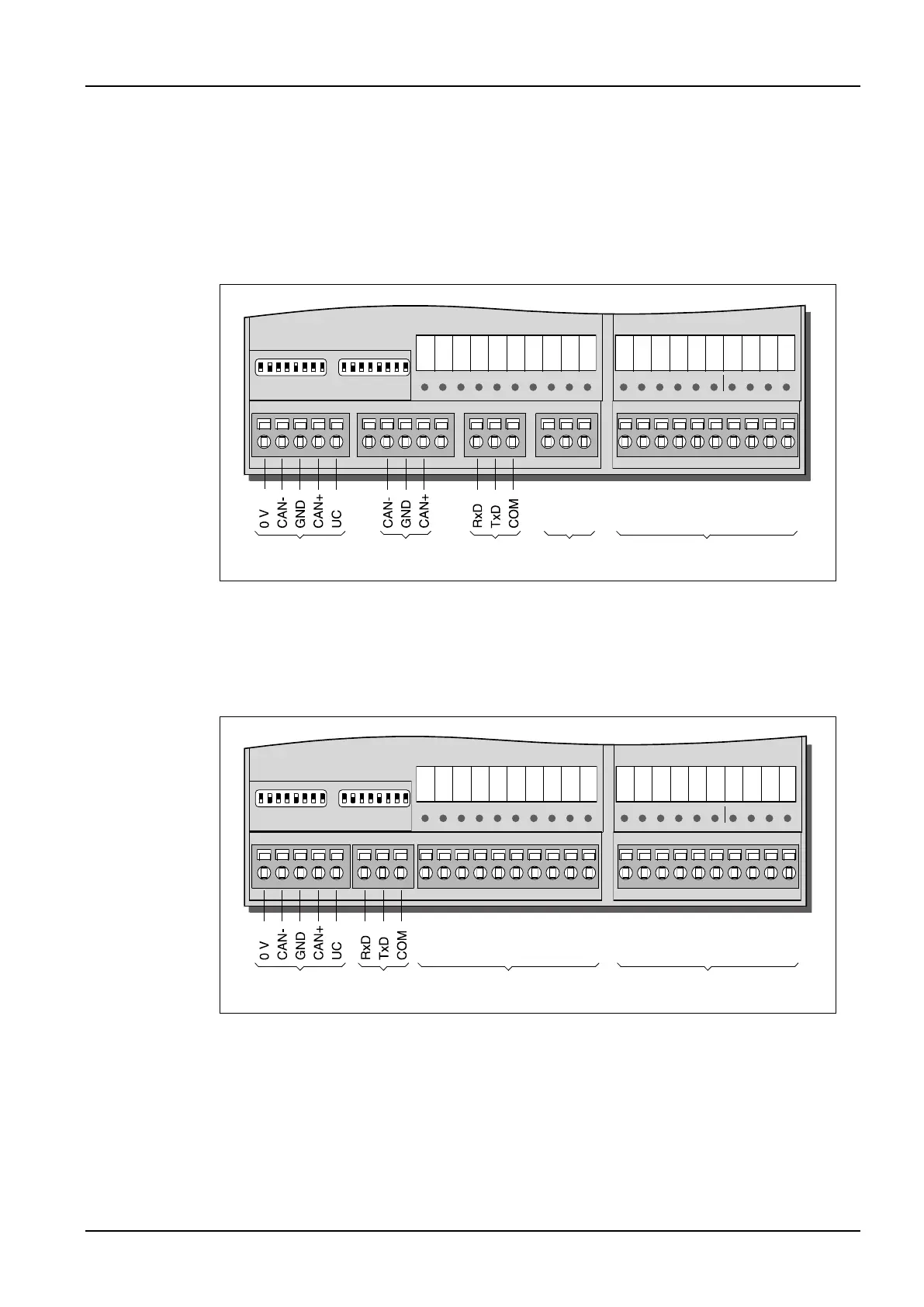

Fig.06: Terminal assignment CPU 723-T
1.4.1.2 CPU 725-LT/LTH, CPU 727-T/TH
CPUs CPU 725-LT/LTH and CPU 727-T/TH are wired by means of one 5-pole, one 3-pole
and two 10-pole connectors:
Fig.07: Terminal assignment CPU 725-LT/LTH and CPU 727-T/TH
0V US 00 01 02 03 04 05 06 070V 00 01
Output InputInput
S1 S2
Supply
and CAN1
CAN2 RS 232 2 digital
inputs
digital inputs
and outputs
0V US 00 01 02 03 04 05 06 07
Output
0V 00 01
Input
S1 S2
Supply
and CAN1
Analog and/or
digital outputs
Analog and/or
digital inputs
RS 232
