ENGLISH - 22
Connect power-PI box-receiver using cigarette
lighter adaptor and PI cable
G-5
Get Power input cable and plug into cigar
lighter socket (12V outlet)
To source power from car battery, cut off
cigar-jack connector to take inner three cables
out and peel off each to take copper cable out
G-2
Fix Remote control bracket where it should be
fixed using two(2) of M4x20 screw
G-6
Fix PI Box where it should be fixed using two(2)
of M4x20 screw
G-4
G-1

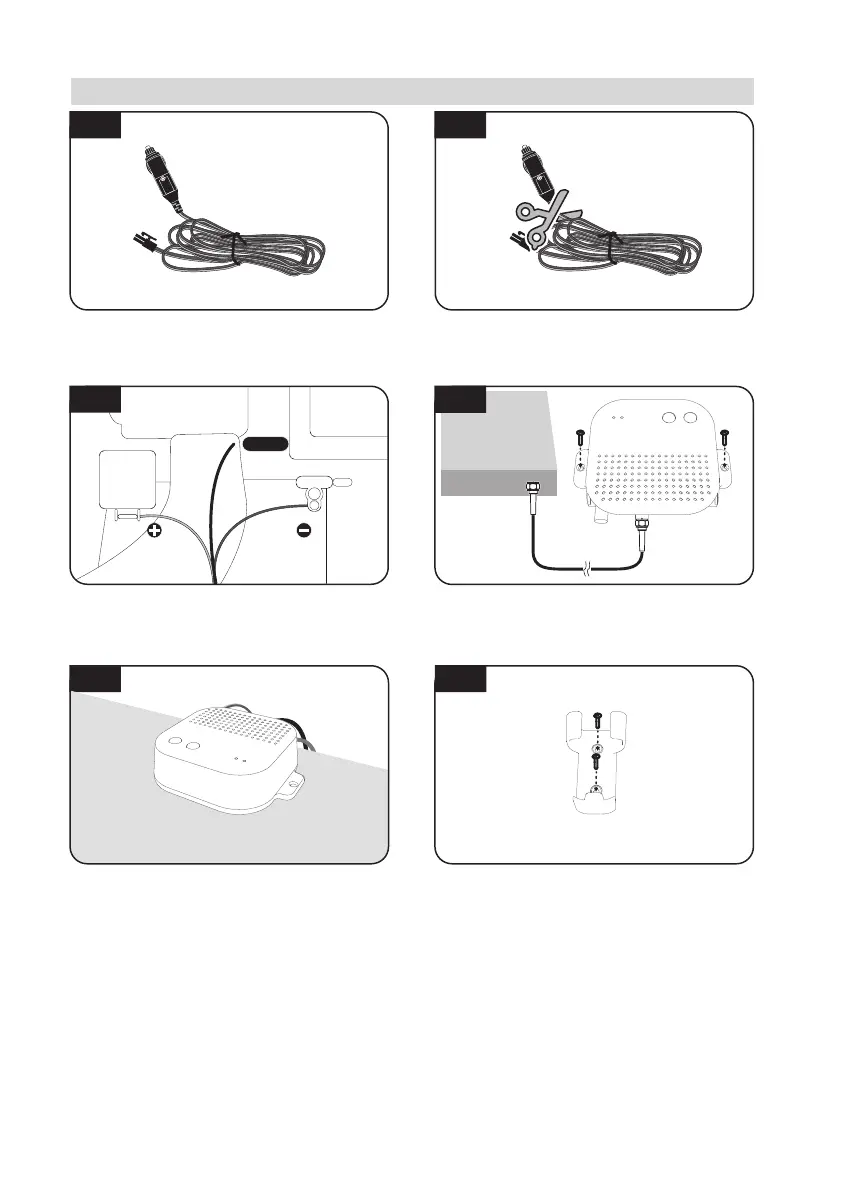

G. PI box and Remote control installation
G-3
Match the power cables polarities to the
battery polarities, red to red / black to black and
white ignition cable to ignition port of the
vehicle
12V DC
Ignition
approx.1.5m
STB
To Next Page
