Connection to Fil-Pilote system
(Only for product versions equipped with "Fil-Pilote")

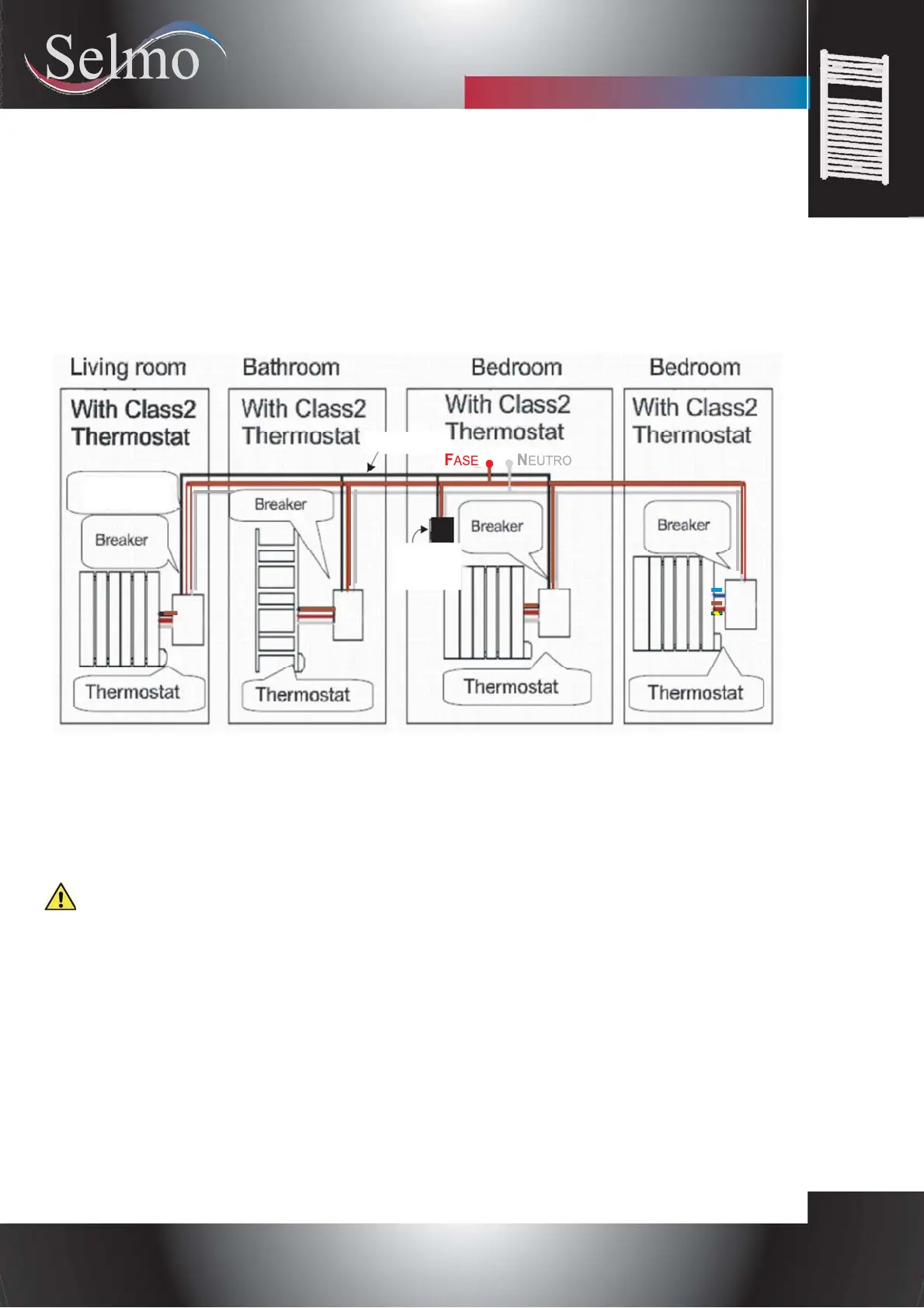

Example
1. A control unit supporting the "Fil-Pilote" system can remotely control a Musa device
with "Fil-Pilote" functionality (Class II). The brown wire is the Live wire (L), the gray wire is
the Neutral wire (N) and the black wire is used for receiving the Fil-Pilote signal.
Do not connect the black wire to the ground.
2. A Musa Plus ECO device without "Fil-Pilote" functionality (Class I) cannot be remotely
controlled. The brown wire is the Live wire (L), the blue wire is the Neutral wire (N) and the
yellow/green wire has to be connected to Earth.
"Fi
l
-
230 Va
c
50 Hz
Statio
n
"Fil-Pilote"
