“THESIS PLUS”
E
lectronic control for towel radiator
s
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +39.049.8976761, Fax +39.049.8976085 - www.selmo.it
E
N
Rev.13 November 2015
YES
N
O
Installation instructions

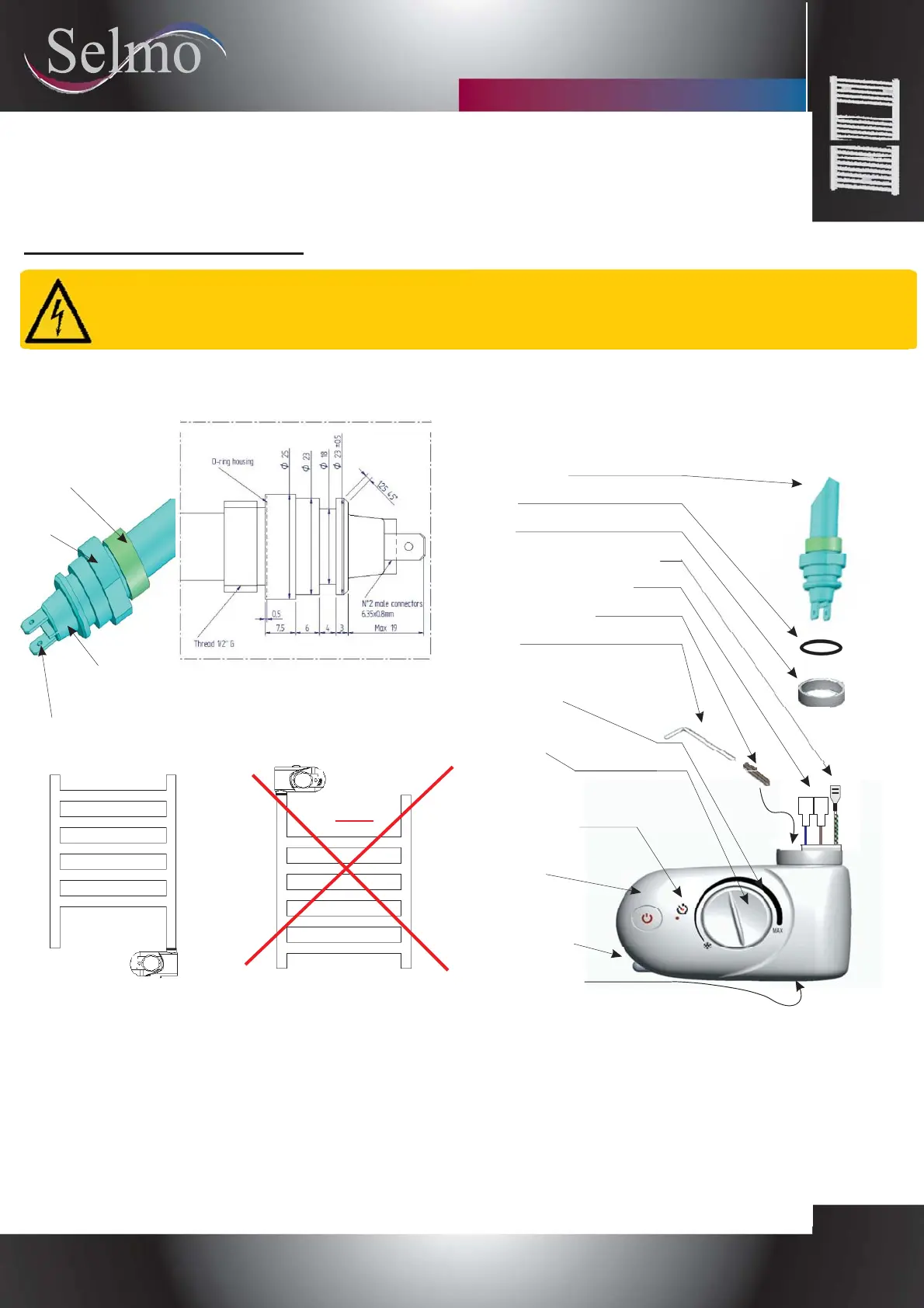

"Thesis plus" is an electronically controlled thermostat compatible with the
heating element types showed in the picture below.
IMPORTANT: Pay attention to the maximal length of the
19mm connector (see picture on the left). Longer
connectors could damage the device.
Puls
.
.
CLEANING
• Disconnect the device from the electrical power supply before cleaning or performing maintenance
operations.
• Use only gentle cleaning agents and no abrasive cleaning tools.
WARNING:
Disconnect the power supply before proceeding with installation.
The installation has to be performed only by authorized personnel.
Threa
d
Fastening
area
Insulation
Connector 2 Faston 6,3x0,8mm.
Backlit "On/Stand-by" button
Temperature Sensor
Power supply cable
“Boost” and “Timer” LED
Button for “Boost 2h” and
“Timer” modes
Temperature setting knob
(Range 7°C – 32°C)
Wrench
Back fastening screw
Heating element connector
Earth connection (only Class I)
Ring
“O-Ring”
Heating Element
