Selmo Thesis Plus User Manual

Comfort technology divisio
n
“THESIS PLUS”
E
lectronic control for towel radiator
s
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +39.049.8976761, Fax +39.049.8976085 - www.selmo.it
E
N
Rev.13 November 2015
Connection to Fil-Pilote system
(Only for product versions equipped with "Fil-Pilote")

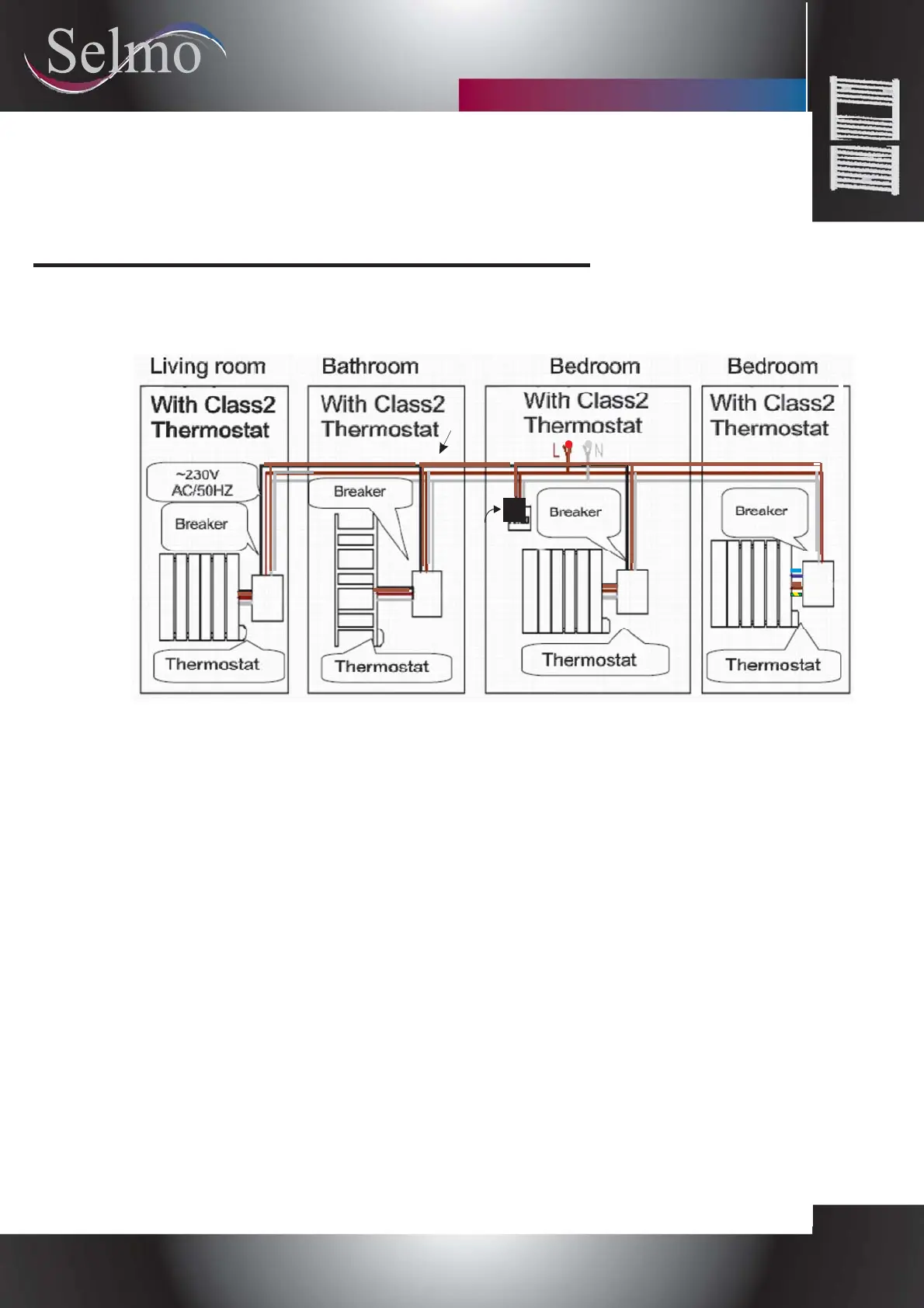

Example
1. A control unit supporting the "Fil-Pilote" system can remotely control a Thesis Plus
device with "Fil-Pilote" functionality (Class II). The brown wire is the Live wire (L), the
gray wire is the Neutral wire (N) and the black wire is used for receiving the Fil-Pilote
signal.
Do not connect the black wire to the ground.
2. A Thesis Plus device without "Fil-Pilote" functionality (Class I) cannot be
remotely controlled. The brown wire is the Live wire (L), the blue wire is the
Neutral wire (N) and the yellow/green wire has to be connected to Earth.
Fil-Pilote
The "Fil-Pilote" system handles 6 different types of signal.
1. Standby: Shut down the heating element but the device remains enabled.
2. Comfort: Maintains the "Comfort" temperature set by the user.
3. ECO: Maintains the temperature 3,5°C below the "Comfort" temperature.
4. Anti-freeze: Avoids that the temperature falls below 7°C.
5. Eco-1: Maintains the temperature 1°C below the "Comfort" temperature.
6. Eco-2: Maintains the temperature 2°C below the "Comfort" temperature.
Fil-Pilote
Fil-Pilote
Statio
n
