SemaConnect 6 Series - Key Requirements

EV Charging Station Installation Guide
6 Rev.201901

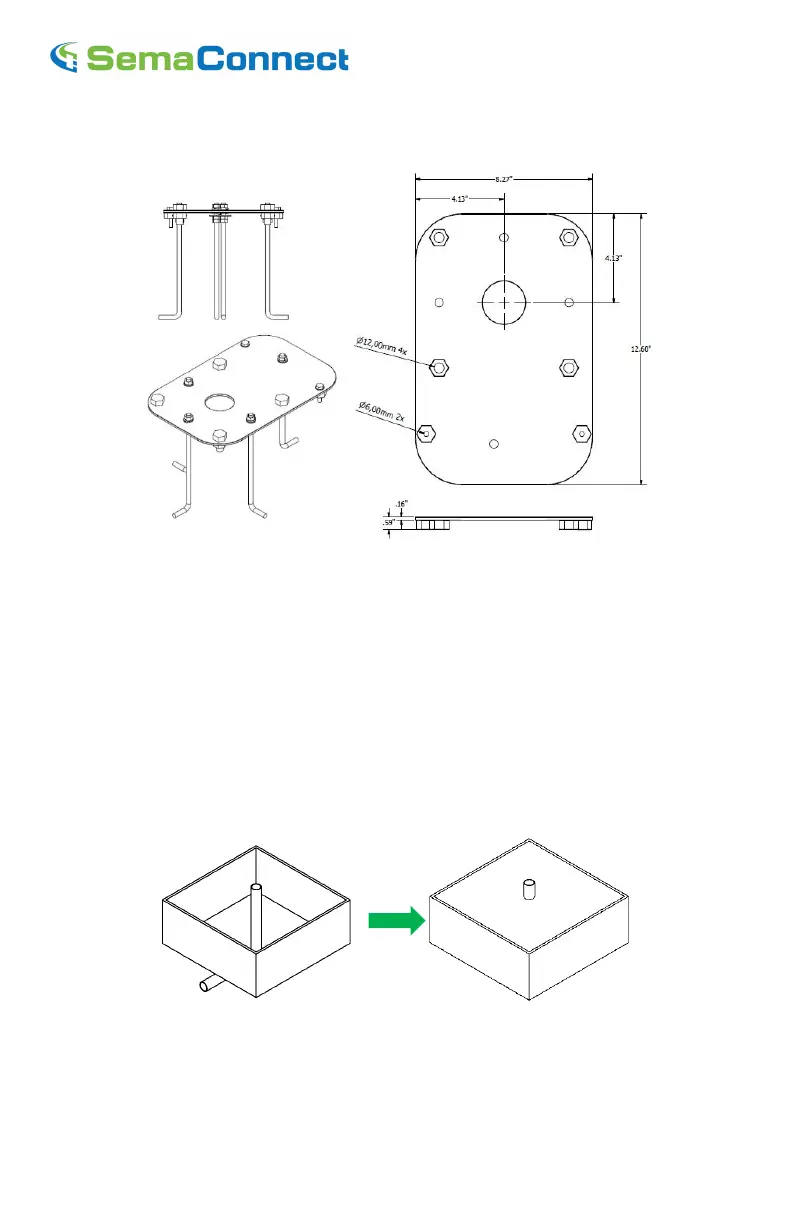

SemaConnect Anchor Plate Key Dimensions
SemaConnect Single and Dual Pedestal Mount Installation (cont)
Follow the same procedure for both Single and dual pedestal mount installation.
Anchor Plate Installtion Procedure
Step-1:- Install the circuit Breaker.
Caution-1:- After circuit breaker is installed, make sure it’s turned off.
Step-2:- Prepare the site and construct a concrete form (typical footprint: 24”x24”). Run the
electrical conduit through the form. Please make sure that the electrical conduit does not come in the
way of J-bolts, while installing anchor plate.
Step-3:- Place concrete into the form and smooth it out.
Figure-1
Step-4:- Attach all four anchor bolts (J bolts) and four sacrificial Bolt to the anchor plate (Figure-2).
Note-1:- Nut in the anchor plate should face downwards.
Note-2:- Do not remove the sacrificial bolt(supplied by the manufacturer) from the
anchor plate.
