EV Charging Station Installation Guide
7 Rev.201901

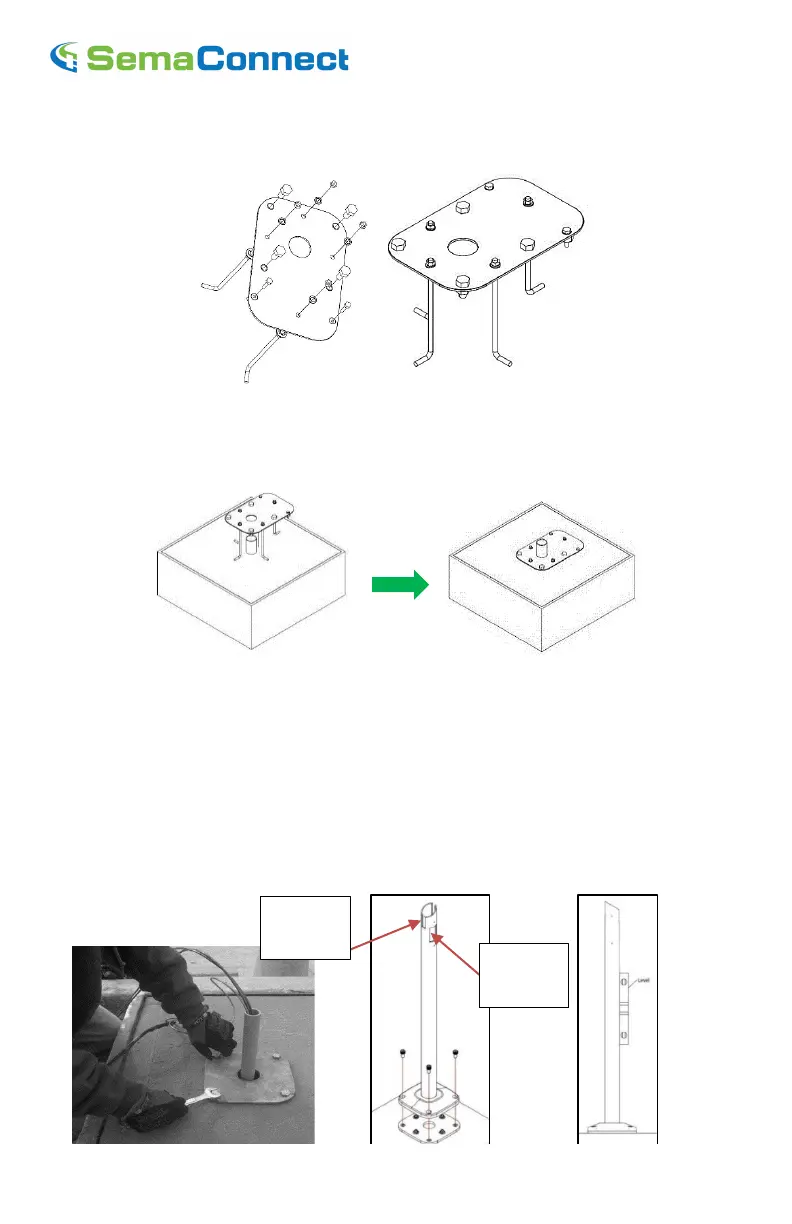

Note-3:- Make sure that only one thread is coming out of the top nut when J bolt is
assembled to anchor plate. If more thread is coming out of top nut then installer will face
problems while mounting pedestal and CMS.
Figure-2
Step-5:- Insert the anchor plate into the concrete. Recommend vibrating the concrete to eliminate
any air bubbles.
Note:- Anchor plate surface should be in level with the ground.
Figure-3
Step-6:- Smooth out the concrete around the anchor plate.
Note:- Continuously check for the anchor plate until concrete sets to make sure that
anchor plate does not sink into the concrete (Figure-3).
SemaConnect Single/Dual Pedestal Installtion Procedure
Step-7:- Once the concrete has set, remove the Sacrificial bolts (Figure-4) from the anchor plate.
Then place the pedestal on top of anchor plate and screw in four pedestal mounting screw(Figure-5).
Do not tighten it fully.
Note-1:- Make sure the electrical wire is passed through the pedestal.
Note-2:- Ensure that access panel is to your right, when seen from the front end.
