Instruction Manual DS Series Senator Industrial Air Compressors
2024-10-11 © Glenco Air & Power Pty Ltd 3
2.0 Product Description
2.1 Overview
The DS Series compressor sets are stationary, single-stage, oil-lubricated rotary screw type
driven by a fixed speed electric motor. They are enclosed within a noise attenuated cabinet.
The compressors feature an advanced microprocessor controller with LCD display that provides
efficient control, monitoring and protection of the unit’s functions. The controller also serves
as a convenient and intuitive interface between the operator and the compressor.
This range of compressors is available only in standalone, floor-mounted configuration. They
are normally connected to downstream compressed air storage, treatment and distribution
equipment to form a complete system.
2.2 Compressor Systems
The compressor consists primarily of the rotary screw air end, electric motor, air-oil receiver
and separator, oil system, cooling system, air system, electrical control system and other
ancillary components.

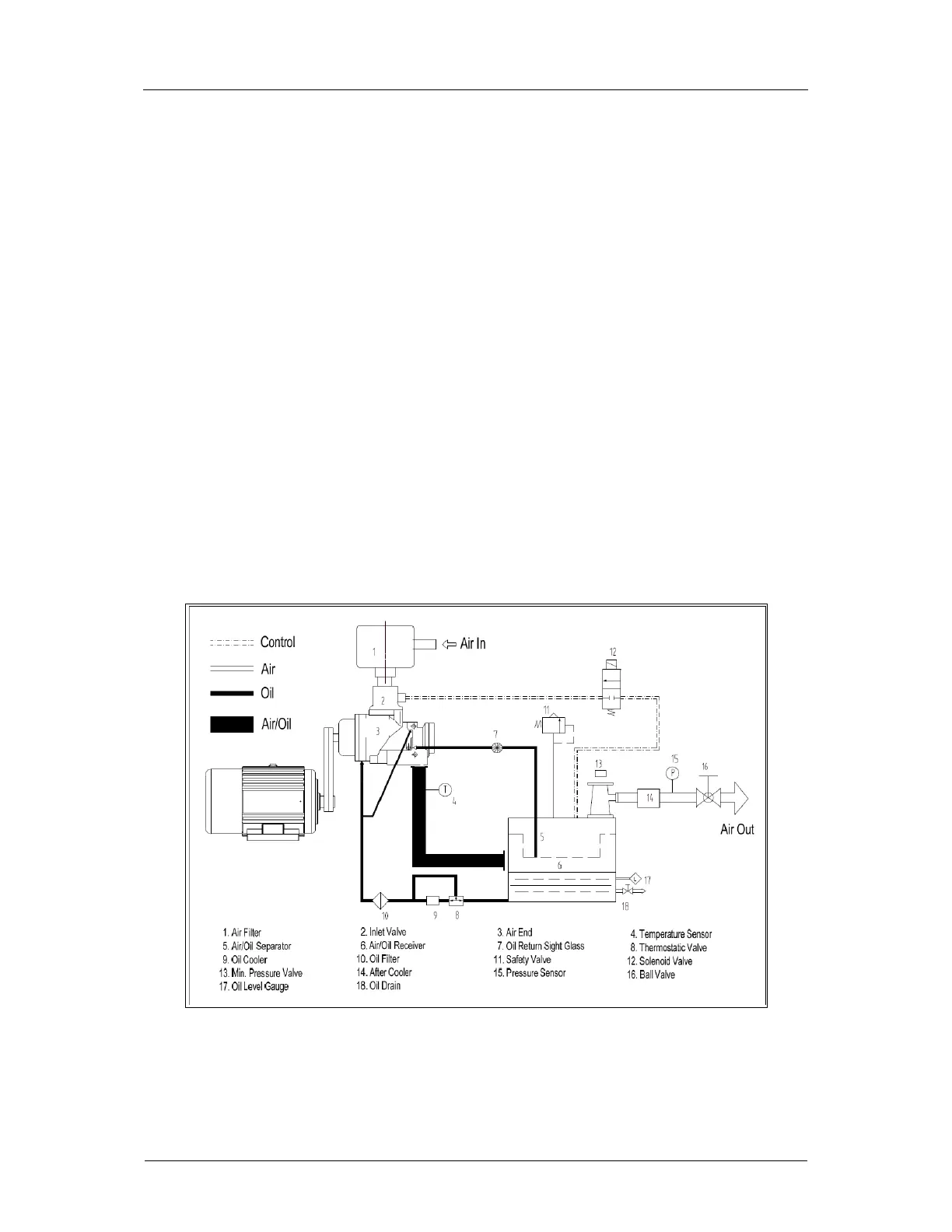

A simplified flow diagram of the unit is shown in Figure 2-1.
Figure 2-1: Compressor Flowchart
