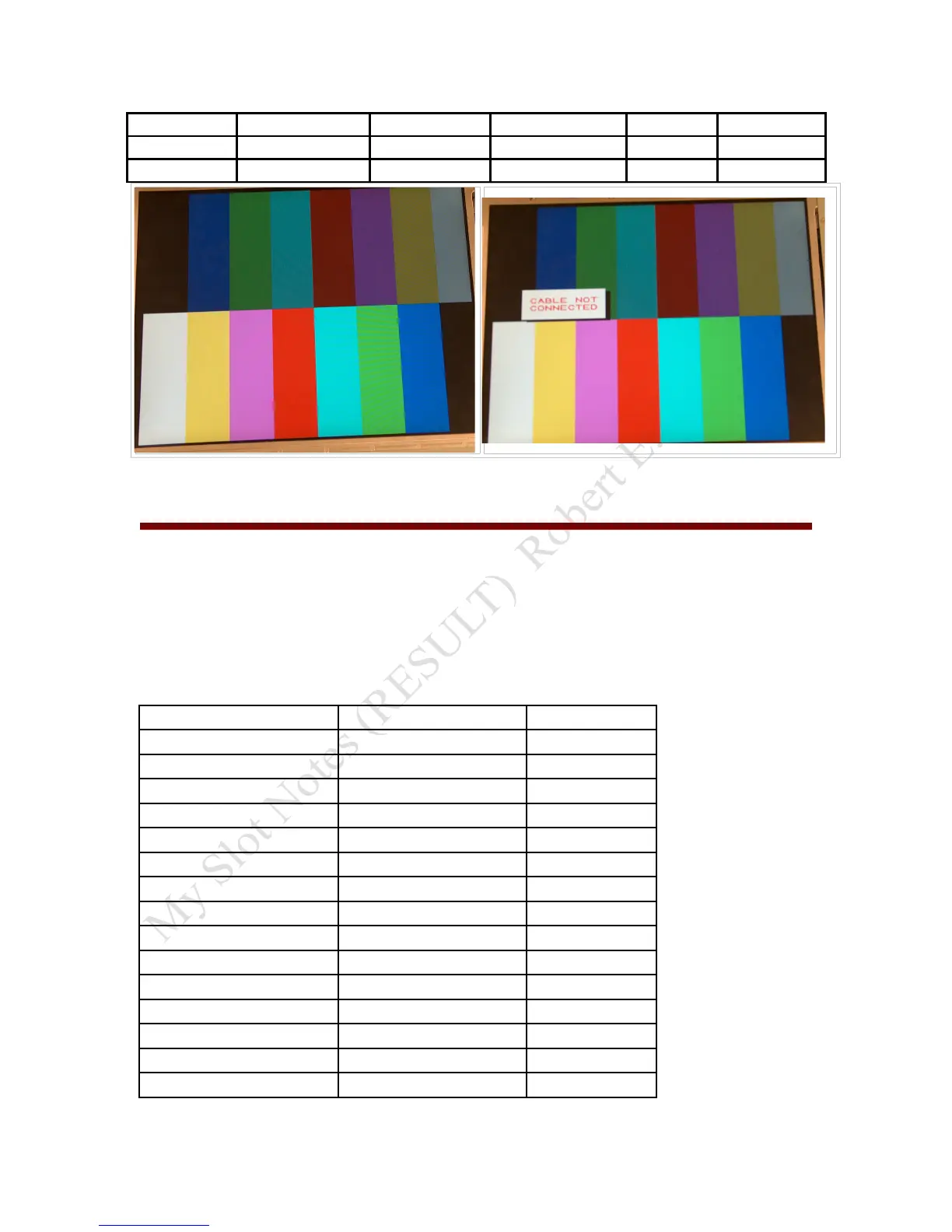

Using the CM2125 Computer Monitor Analyzer
To test Ceronix 1490 and 1492 monitors
Ceronix 1490 / 1492 CM2125
NC Intensity Pin 4
NC Intensity Pin 5
NC Comp Sync Pin 7
NC Intensity Pin 12
NC +5 mode Pin 15
Pin 1 Gnd Pin 8
Pin 1 Red Gnd Pin 9
Pin 1 Green Gnd Pin 10
Pin 1 Blue Gnd Pin 11
Pin 1 Gnd Pin 13
Pin 2 V Sync Pin 14
Pin 3 Red Pin 1
Pin 4 Green Pin 2
Pin 5 Blue Pin 3
Pin 6 H Sync Pin 6
Pin 7 No Connection
