Sencore cm2125 - Using the CM2125 Computer Monitor Analyzer to Test LCD Screens; CM2125 Settings

Using the CM2125 Computer Monitor
Analyzer to Test LCD Screens
CM2125
LCD Screen

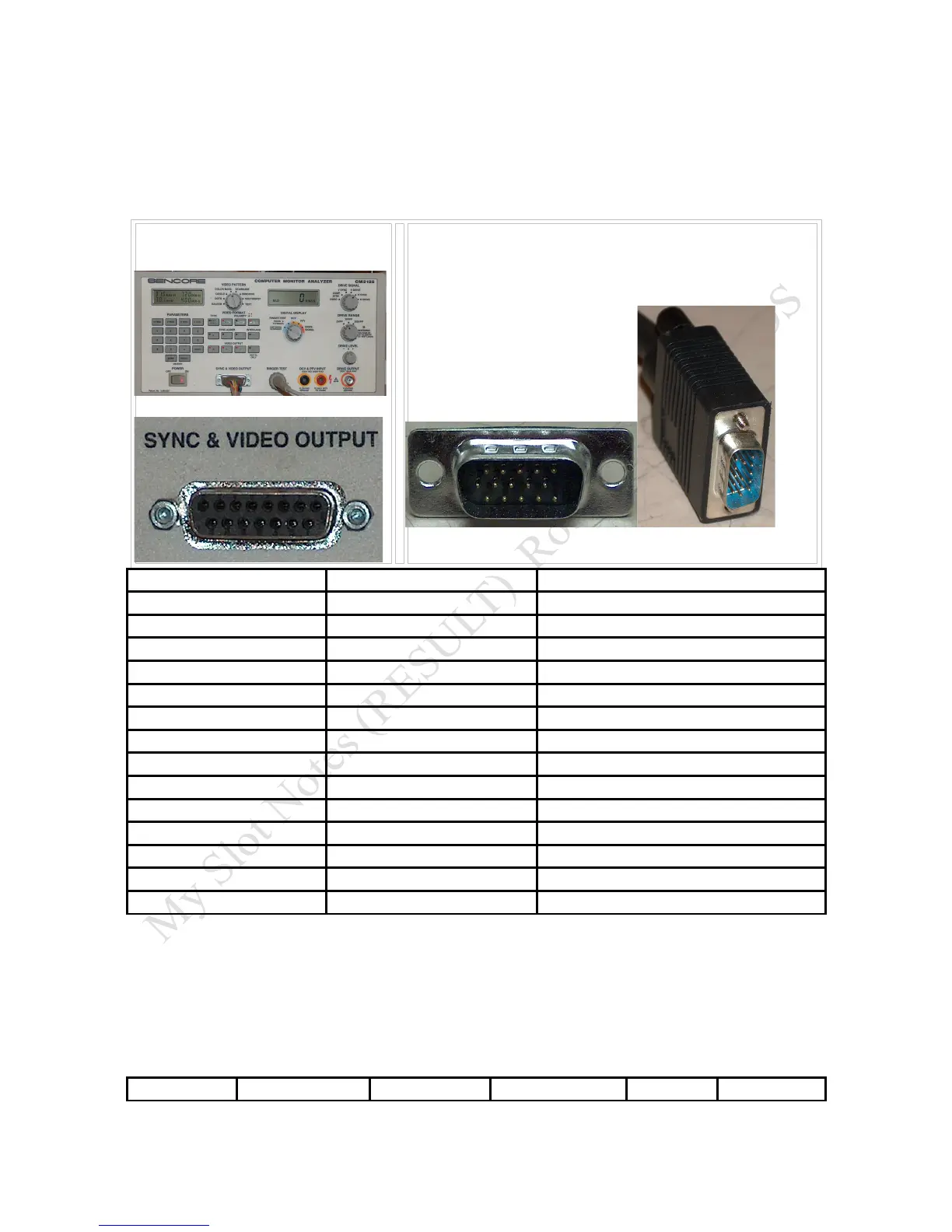

Pin 1 Red Pin 1
Pin 2 Green Pin 2
Pin 3 Blue Pin 3
Pin 4 Intensity NC
Pin 5 Intensity NC
Pin 6 H Sync Pin 13
Pin 7 Comp Sync NC
Pin 8 Gnd Pin 5, Pin 6 , Pin 7, Pin 8 Pin 10
Pin 9 Red Gnd Pin 5, Pin 6 , Pin 7, Pin 8 Pin 10
Pin 10 Green Gnd Pin 5, Pin 6 , Pin 7, Pin 8 Pin 10
Pin 11 Blue Gnd Pin 5, Pin 6 , Pin 7, Pin 8 Pin 10
Pin 12 Intensity NC
Pin 13 Gnd Pin 5, Pin 6 , Pin 7, Pin 8 Pin 10
Pin 14 V Sync Pin 14
Pin 15 +5 mode NC
CM2125 Settings (Recall 6 or 7)
Type Format Horiz Vert Freq (Hz) Horiz Pix Vert Pix
