Sencore TF151 - Page 13

N
CHANNEL
DRAIN
(+V)
SOURCE
P
CHANNEL
DRAIN
(-V)
SOURCE
BLACK LEAD
SOURCE

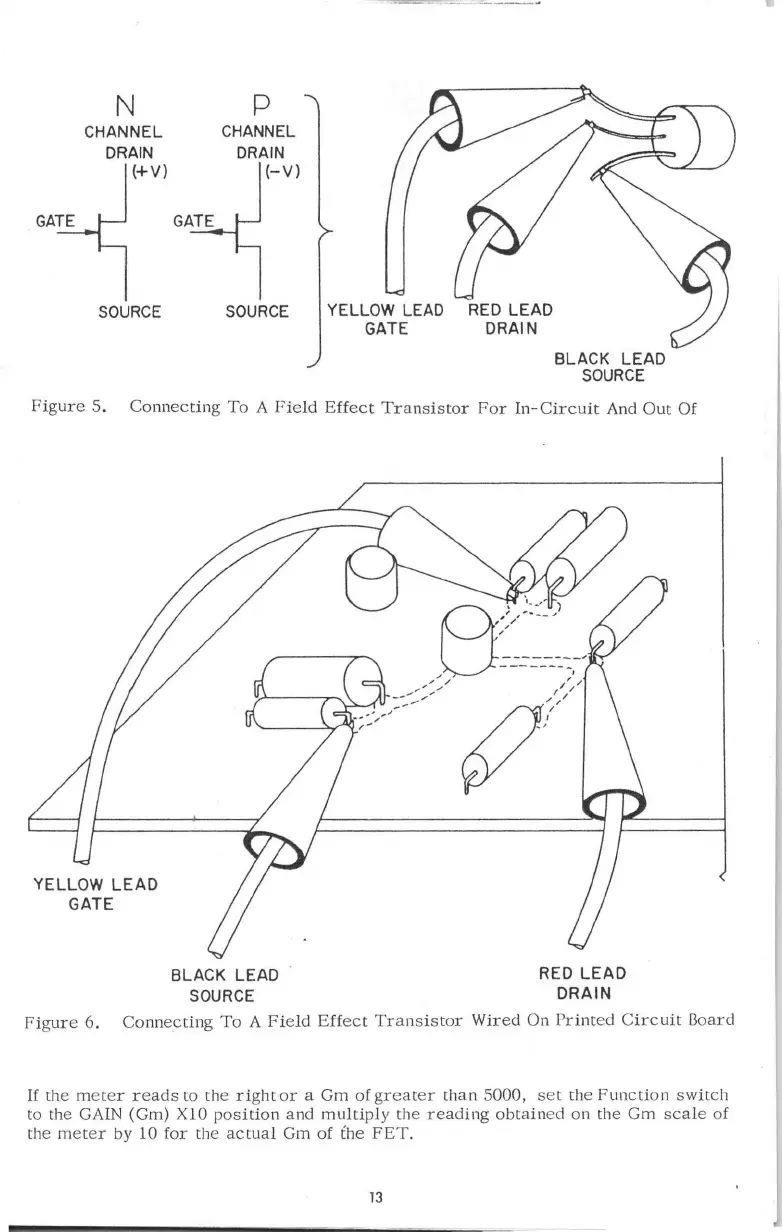

Figure S. Connecting To A Fie ld Effect Transistor For In-Circuit And Out Of
YELLOW LEAD
GATE
BLACK LEAD
SOURCE
RED LEAD
DRAIN
Figure 6. Co nnecting To A Field Effect Trans ist or Wi re d On Printed C ir cuit Board
If the meter r eads to the right or a Gm of greater than 5000, set the Function sw itch
to the GAIN (Gm) XlO position and multipl y the reading obtained on th e Gm scale of
the
meter by 10 for the act ual Gm of the FET .
13
