Sencotel Granita machine - Granita Machine Wiring Diagram

SL310006593 Ed.00 - 07-2011 - 21_EN -

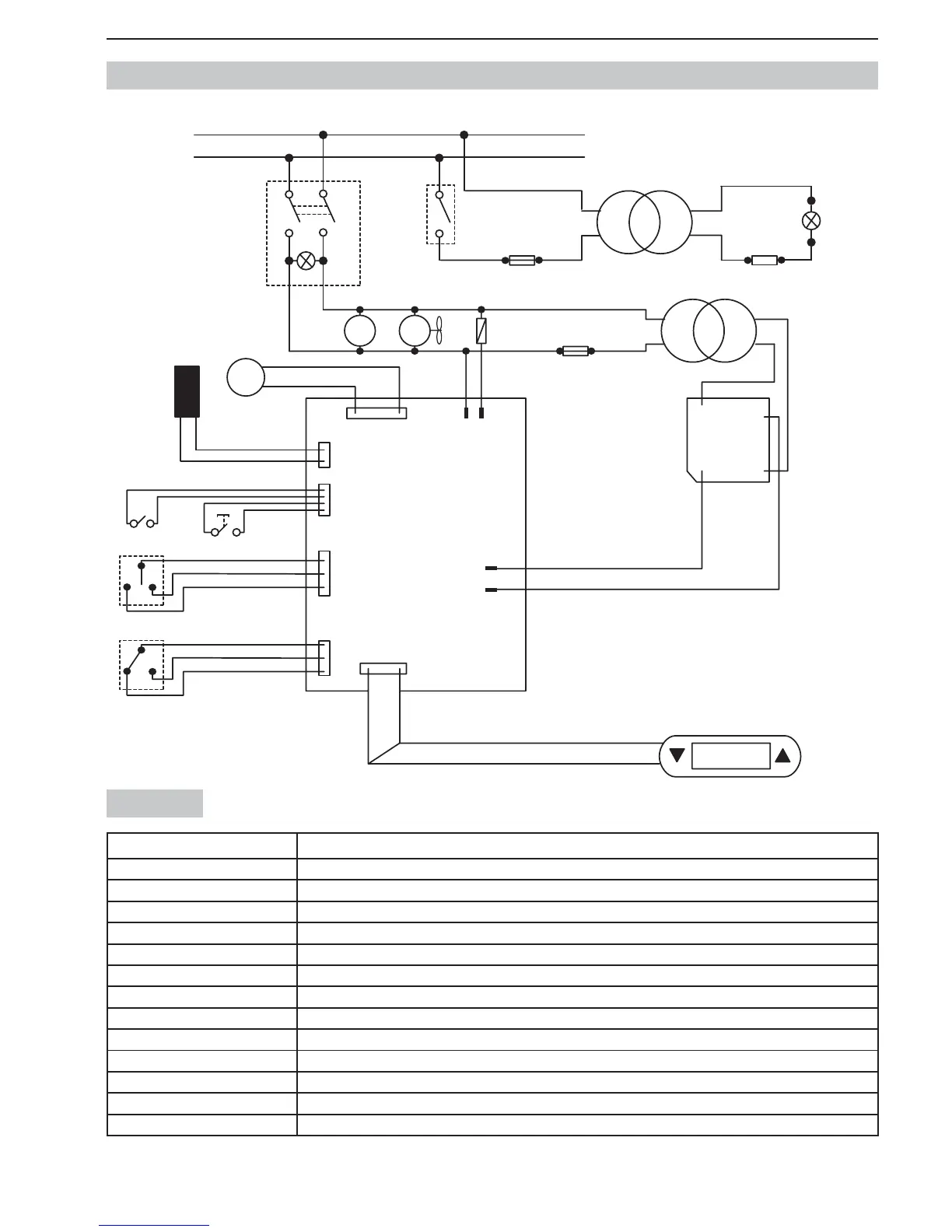

10. GRANITA MACHINE WIRING DIAGRAM
Item Description
I.G. Main switch
M.C. Compressor motor
M.V. Fan motor
Ev. Gas solenoid valve
F. Fuse
Tr. Transformer
M Mixer motor
Ntc Temperature probe
C.P.U. Electronic card
S.C. Lid sensor
P.e. Dispensing key
D.G.B. Freeze/defrost selector switch
S.v. Speed selector
LEGEND
000
MC MV
IG
TR
~
~
-
+
EV
F
(T 1,6 A 230 V)
(T 2,5 A 115 V)
N
F
F3
F4
F1 F2
CN1
CN8
CPU
CN2 CN3
CN4
CN6
NTC
SC
PE
0
III
DGB
Sv
Display
M
F
TR
(T 250 mA 230 V)
F
(T 5 A 115 V)
