9

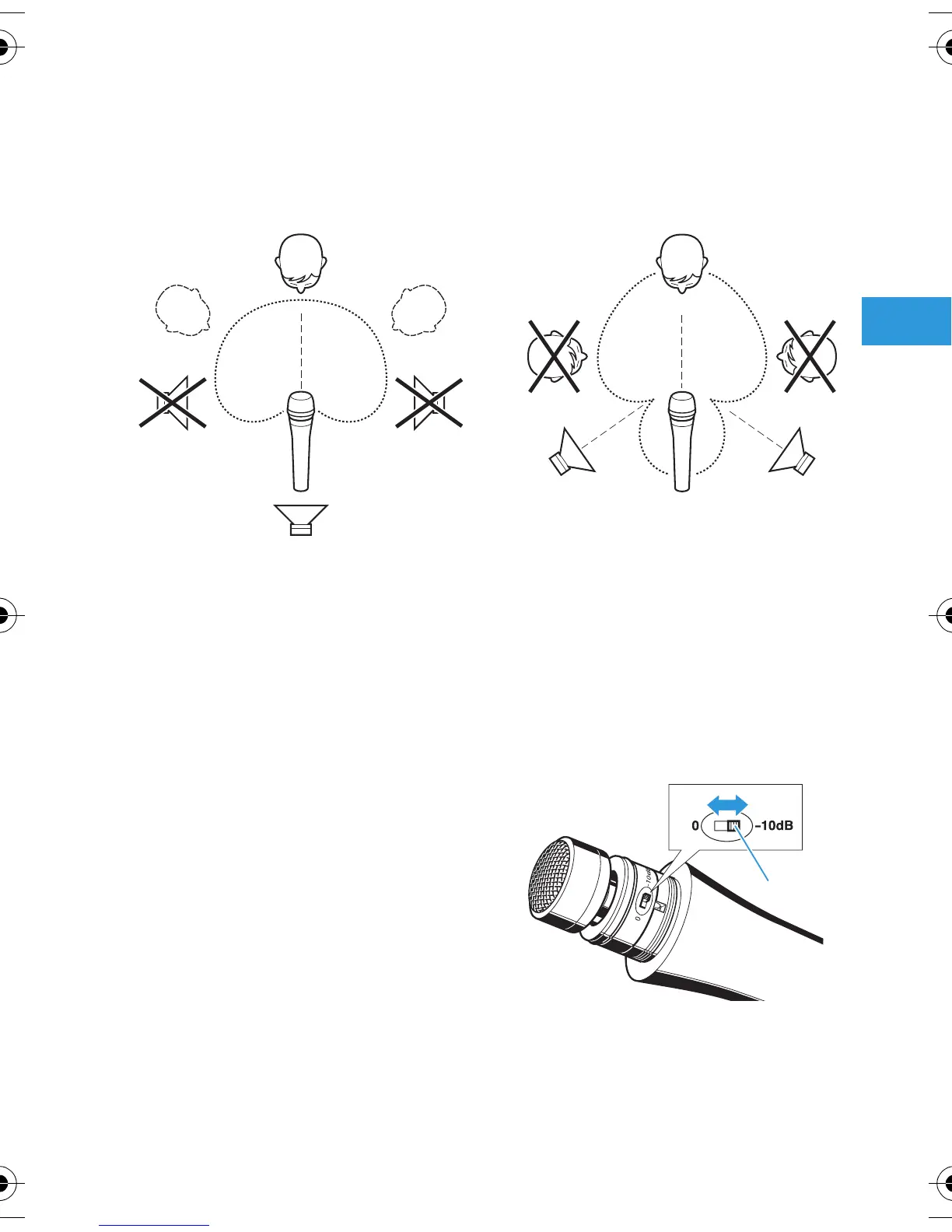

Select the pick-up pattern according to the number and
position of your monitor loudspeakers.
Adjusting the sensitivity
When very high signal levels cause distortion in the microphone or
in the subsequent microphone preamplifier, you can reduce the
microphone sensitivity. The sensitivity can be reduced by 10 dB.
왘 Use the sensitivity switch
to select the desired setting:
0: normal sensitivity
–10 dB: sensitivity reduced
by 10 dB
