Product overview
HDVA 600 | 6
Product overview

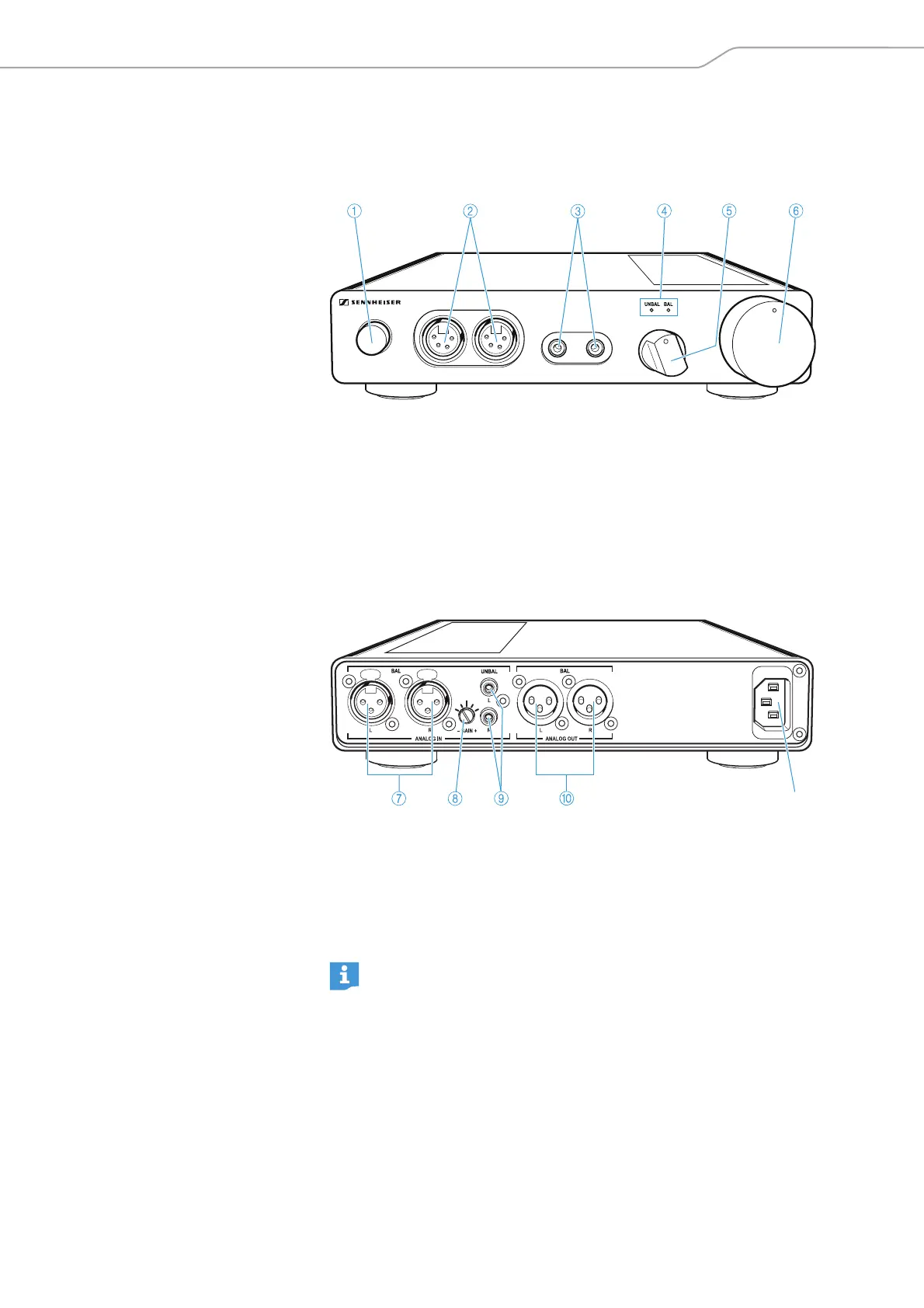

Overview of the front panel
Overview of the rear panel
1 On/off button
2 Headphone outputs,
XLR-4 socket, balanced
3 Headphone outputs,
¼“ (6.35 mm) jack socket,
unbalanced
4 Input selection LED
5 Input selection rotary switch
6 Volume control
7 XLR-3 input socket,
balanced (BAL L, R)
8 Input attenuation rotary switch
(-GAIN+) for RCA input
9 RCA input socket,
unbalanced (UNBAL L, R)
0 XLR-3 output socket,
balanced (BAL L, R)
A Mains socket
The type plate and the electrical data can be found on the base of the
product.
