HMEC 46-KP, -V-KP, -B-K, -BV-K
HMEC 46-KP
1 Audio Hi left 1 Power supply NoiseGard™ (DC+)
2 not assigned 2 Microphone Hi
3 Audio Lo / DC– 3 Microphone Lo / DC–
HMEC 46-V-KP
1 Audio Hi left 1 Power supply NoiseGard™ (DC+)
2 Audio Hi right 2 Microphone Hi
3 Audio Lo / DC– 3 Microphone Lo / DC–
HMEC 46-B-K
1Audio Hi 1not assigned
2 not assigned 2 Microphone Hi
3Audio Lo 3Microphone Lo
HMEC 46-BV-K
1 Audio Hi left 1 not assigned
2 Audio Hi right 2 Microphone Hi
2Audio Lo 2Microphone Lo

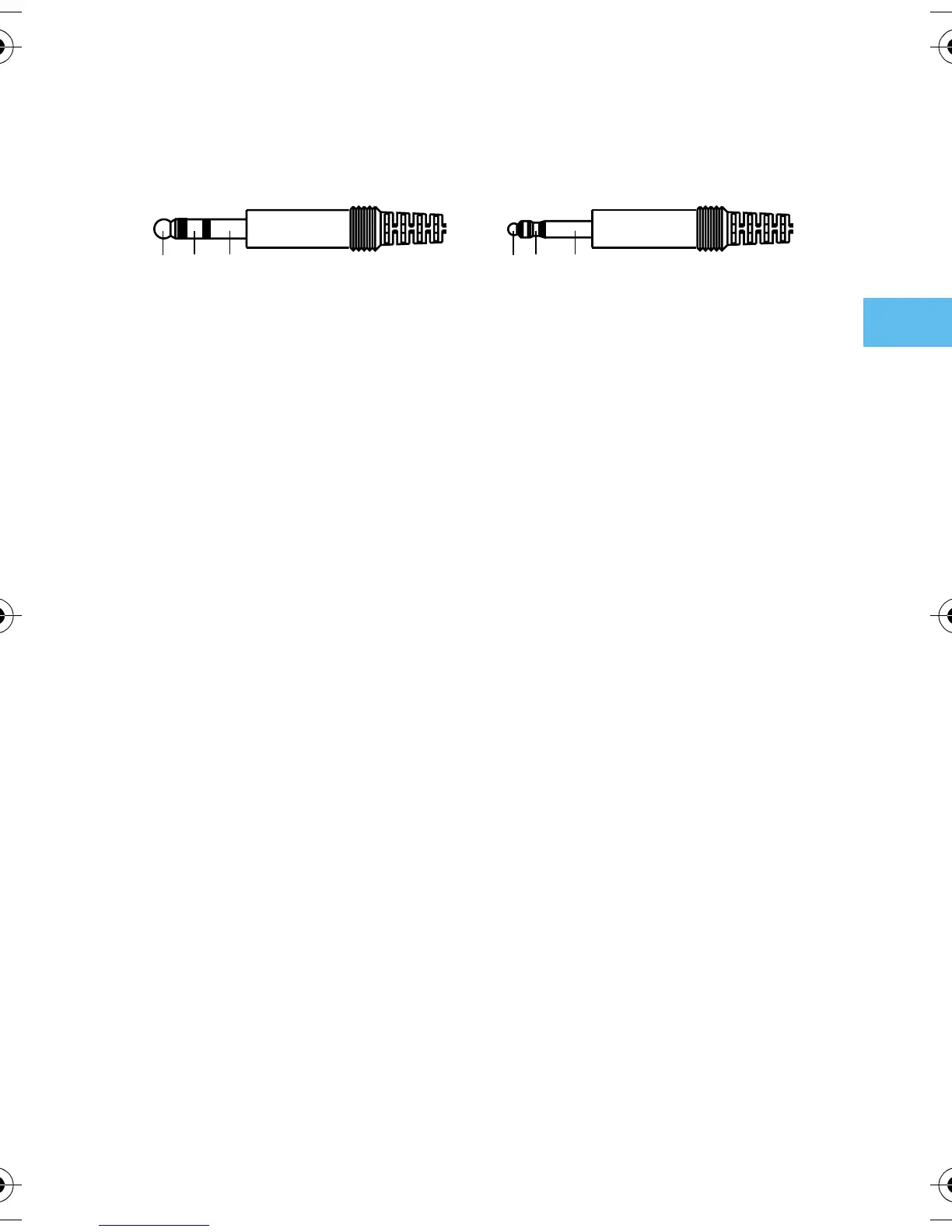

1/4" (6.3 mm) jack plug PJ-068 equivalent
12 3
12 3
