Sennheiser HMEC 46 - Connector Assignment

20

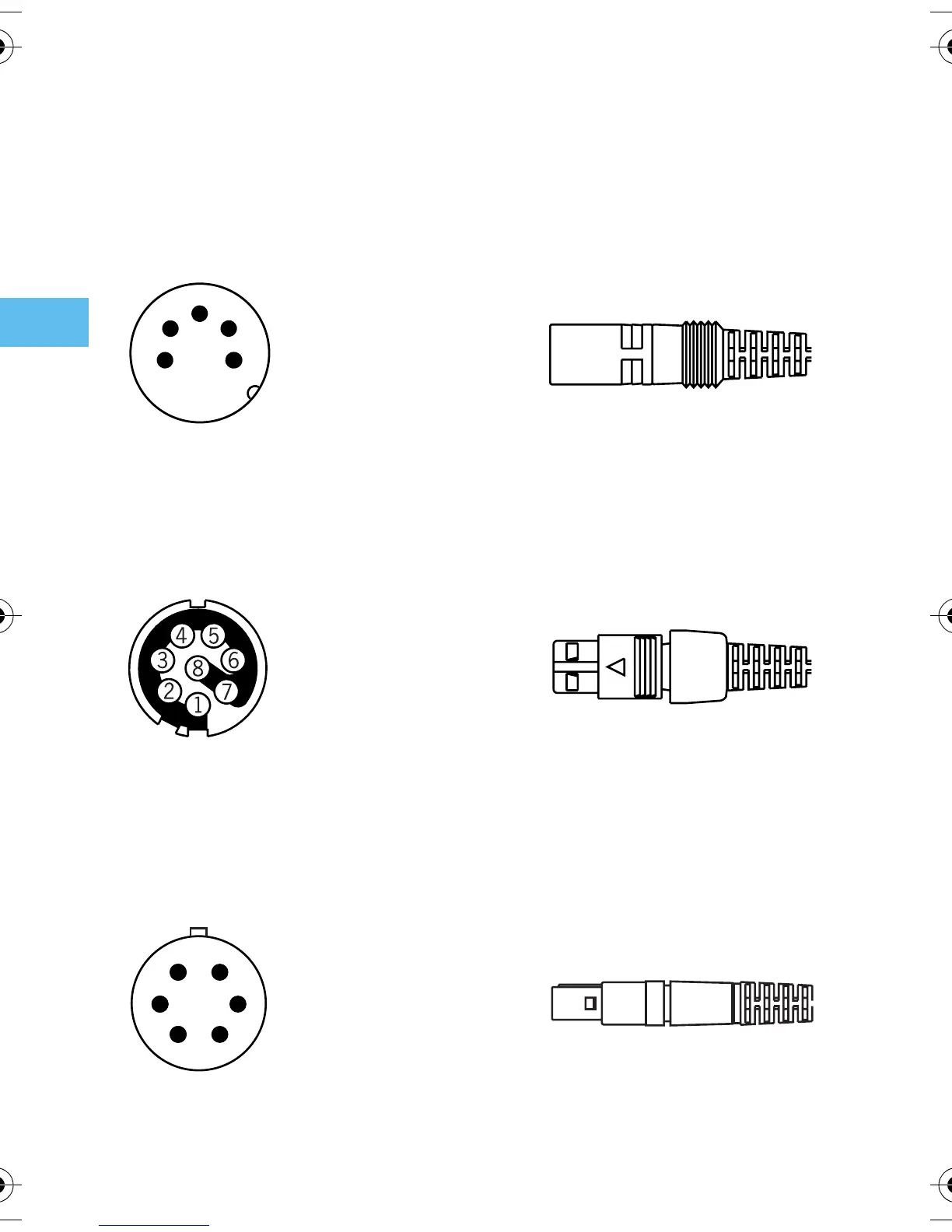

Connector assignment
HMEC 46-CP, -V-CP, -B-CP, -BV-CP
HMEC 46-NP
HMEC 46-V-RP
Solder side
1
2
3
Audio Hi
Audio Lo / DC–
Microphone Hi
4
5
1
2
3
4
5
Microphone Lo
Power supply NoiseGard
TM
(DC+)

Solder side
1 Audio Hi
2 Audio Lo
3 not assigned
4 Microphone Lo
5 Microphone Hi
6 not assigned
7 DC–
8 Power supply NoiseGard
TM
(DC+)

Solder side
1 Power supply NoiseGard
TM
(DC+)
2 Audio Lo / DC–
3 Audio Hi left
4 Audio Hi right
5 Microphone Hi
6 Microphone Lo

1
3
2
6
4
5
