SensAble DORTAG VI - WIRING DETAILS; Jumper Loop Select Note; Fire Alarm Input Functionality

Single Door Access Control System

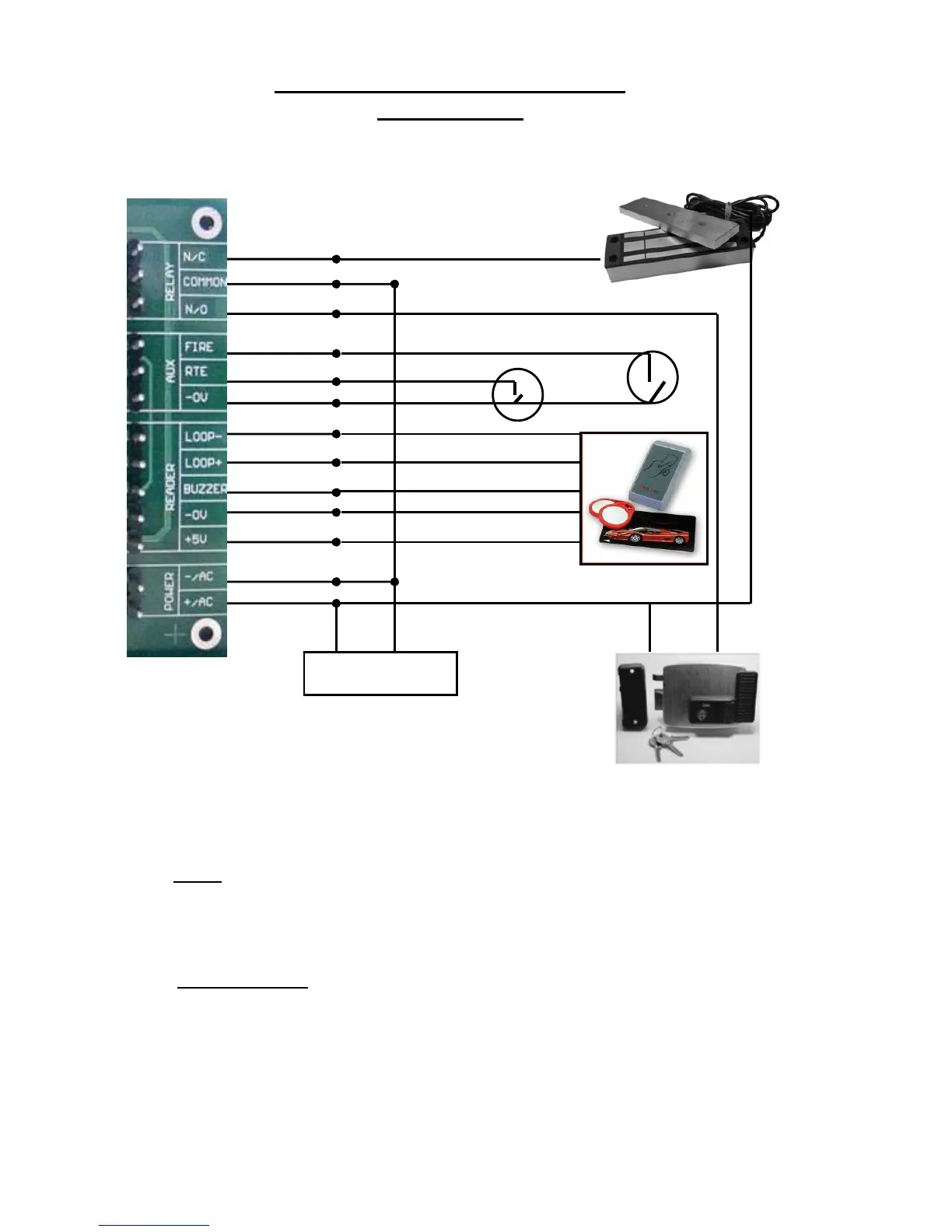

Wiring Details
Notes:
* Jumper “LOOP SELECT” must be fitted for two reader head applications.
** Normally open fire alarm contact opens door in the event of a fire.
12 v AC / DC
Power Supply 1 Amp
Bl
u
e
R
ed
Green
Black
Yellow
Push to make
contact
Magnetic Lock
Strike Lock
Fire alarm input
Request to exit
Fire alarm input:
The fire alarm input is a facility whereby a fire alarm device such as an
emergency glass break switch or fire alarm panel can close the circuit to open
all doors immediately. Please note the fire alarm input is non latching, and
Fail safe locks should be used with this function.
