SenseCAP
6

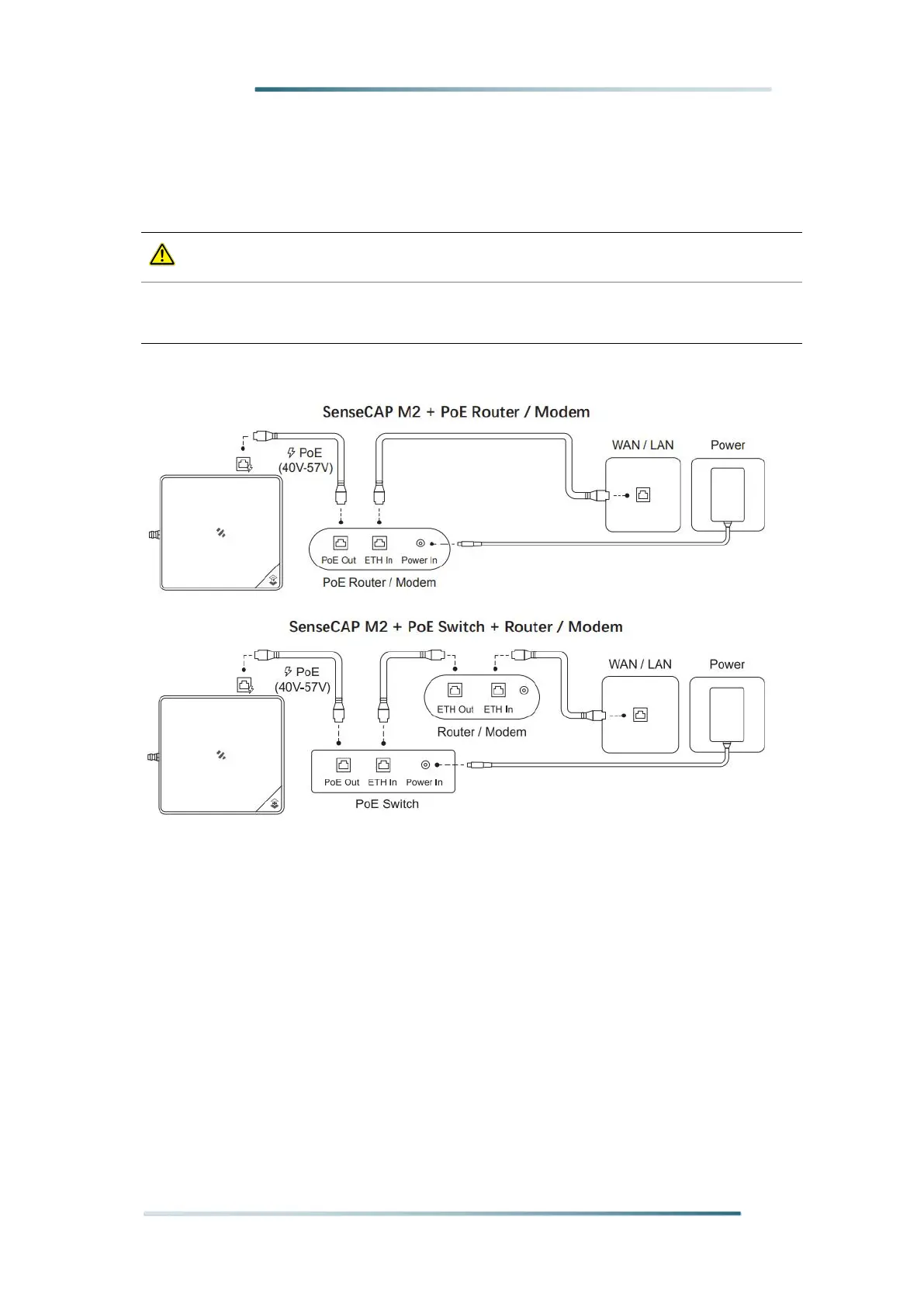

1.3 POE connection
SenseCAP M2 supports PoE (Power on Ethernet) and is compatible with IEEE 802.3 af
standard.
Note:
You will need to have an extra PoE switch that provides 40V-57V DC power as a PSE
(Power Sourcing Equipment) if your modem/router does not support PoE.
