0-10V DIMMING +
0-10V DIMMING –
GRY
VIO
0-10V DIMMABLE LOAD
SWX
WALL SWITCH
SENSOR
w/ DIMMING
0 ft 0 m
4 1.2
SIDE VIEW
0 ft
0 m
10
3.0
20
6.1
30
9.1
40
12.2
TOP VIEW
4 ft Mount
4012.1
4012.1
206.1
0 ft0 m
206.1

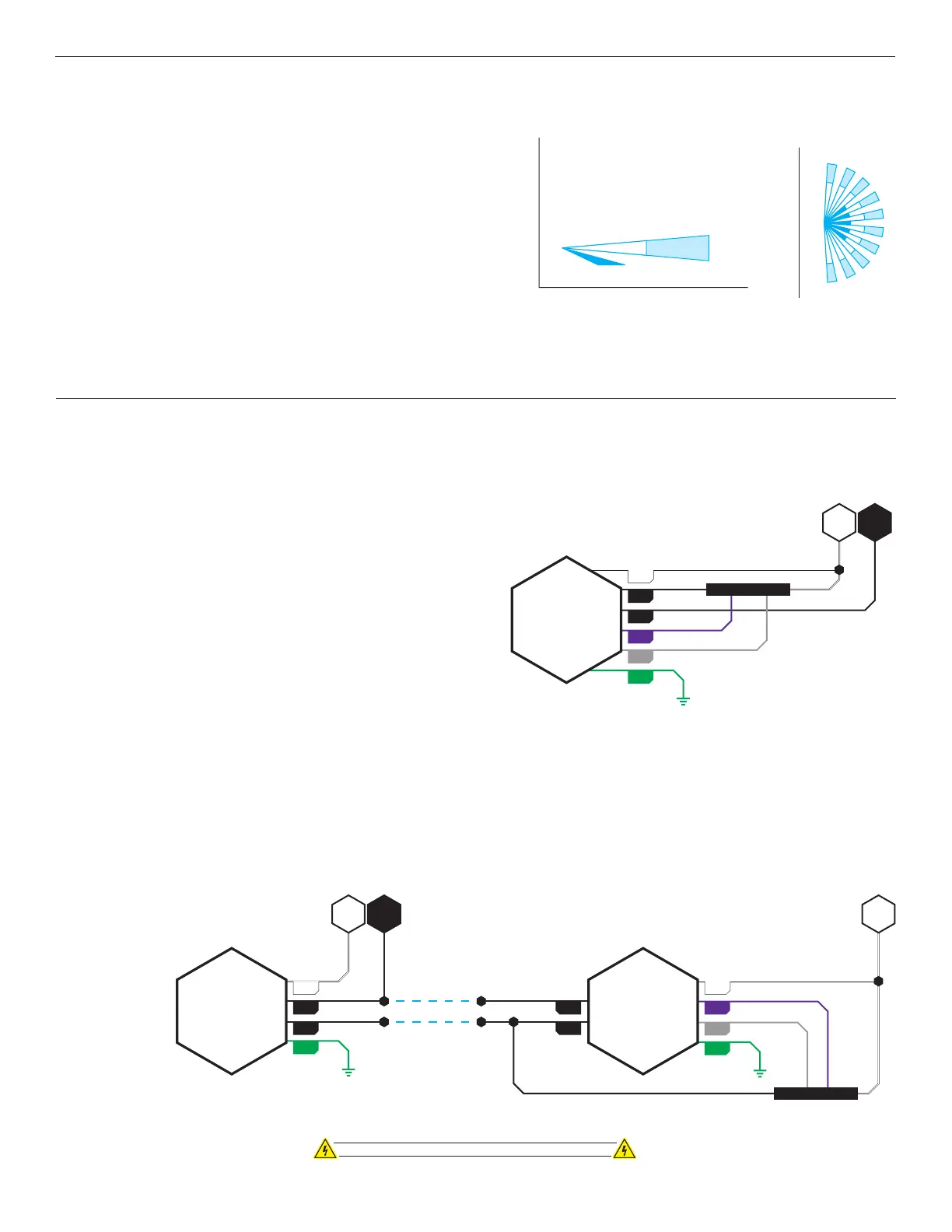

COVERAGE
30” to 48’ (0.76 - 1.22 m) recommended mounting height
Wall to wall (~180 degree) coverage
Small motion (e.g., hand movement) detection up to 20 ft (6.10 m), ~625 ft
2
Large motion (e.g., walking) detection greater than 36 ft (10.97 m), ~ 2025 ft
2
Overlapping acoustic detection of occupants over entire coverage area
Advanced signal processing lters out nuisance noises while not effecting
overall sensitivity
As an added safety convenience, the acoustic detection is left active for
10 seconds after sensor turns the lights off to allow for voice reactivation
3-WAY WIRING
TWO SENSORS IN PARALLEL
Only one sensor can be model with 0-10V Dimming
Both sensors must time out for lights to turn off (or both buttons must be switched)
Recommended for Automatic On (Occupancy) applications only
INSTALLATION
STANDARD WIRING
WARNING: TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE WIRING
* NEUTRAL CONNECTION IS OPTIONAL, CAP IF UNUSED
* NEUTRAL CONNECTION IS OPTIONAL, CAP IF UNUSED
WIRING
For supply connections, use 14 AWG (90° C) or larger wires
Risk of Electric Shock - more than one disconnect switch may be required
to de-energize the equipment before servicing
It is recommended that wiring the unit’s ground connection be done rst.
Unit works both in installations where Neutral connection is available as
well as installations where only Ground connection is present
The unit’s two black wires are interchangeable (e.g., one connects to line
power, one connects to load)
After wiring and mounting, install wall plate (not included) before turning
back on power at the circuit breaker
0-10V DIMMING +
0-10V DIMMING –
GRY
VIO
BLK
WHT
LOAD
BLK
N
SWX
WALL SWITCH
SENSOR
H
GRN
BLK
WHT
BLK
N
N
SWX
WALL SWITCH
SENSOR
H
GRN
BLK
WHT
BLK
SWX
WALL SWITCH
SENSOR
w/ DIMMING
N
GRN
BLK
WHT
BLK
N
SWX
WALL SWITCH
SENSOR
GRN
Standard Wiring
3-Way Wiring
H
1-Sensor: 3-Way Wiring
3-WAY SWITCH
COMMON
TRAVELERS
TRAVELERS
LOAD
* NEUTRAL CONNECTION IS OPTIONAL, CAP IF UNUSED
*
*
*
*
* NEUTRAL CONNECTION IS OPTIONAL, CAP IF UNUSED
* NEUTRAL CONNECTION IS OPTIONAL, CAP IF UNUSED
0-10V DIMMABLE LOAD
To Next Page
