SENSORWORX SWX-101-D Series - Configuration Settings; Configuration Programming; Configuration Functions

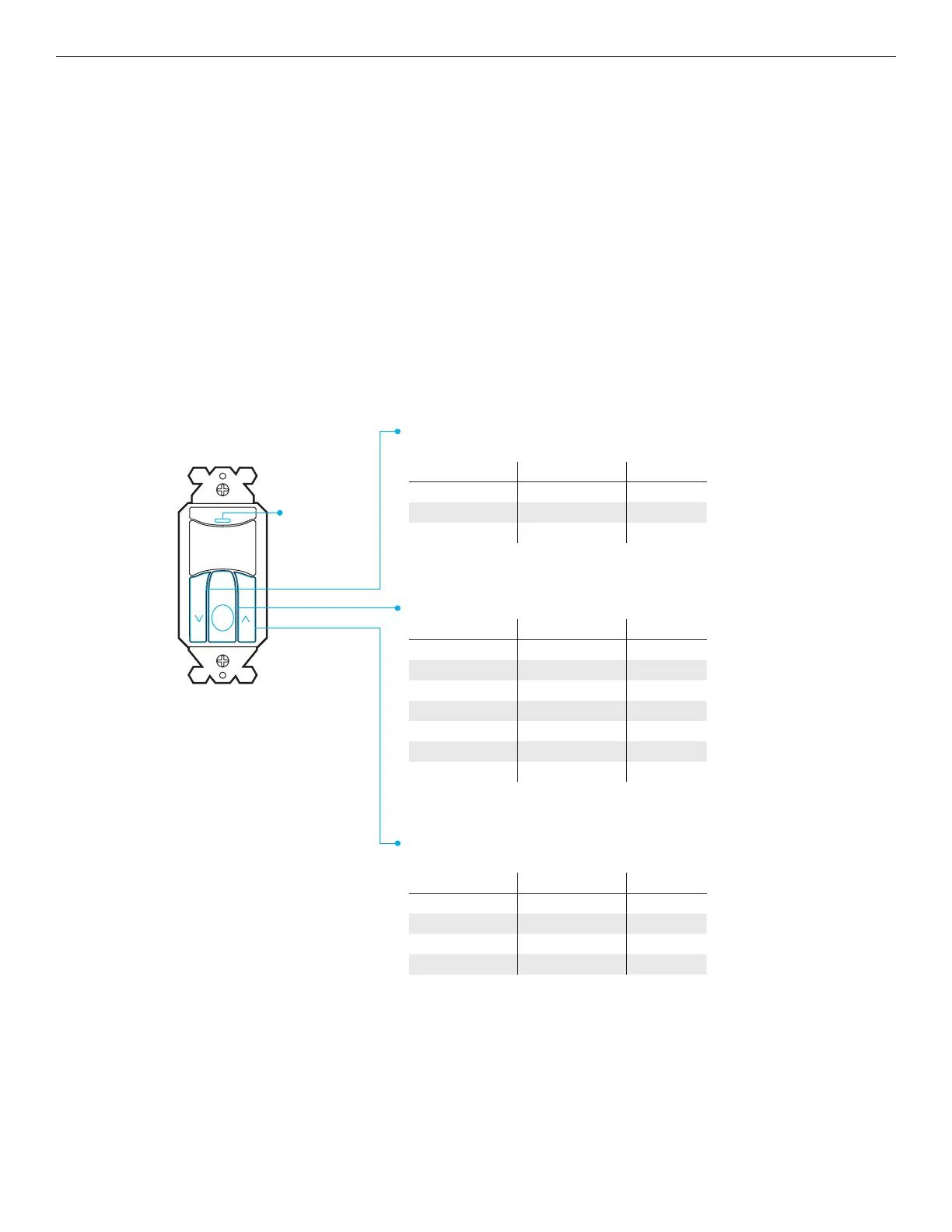

CENTER BUTTON
FUNCTION NAME BUTTON POSITION FUNCTION #
Time Delay Center 2
Operating Mode Center 3
Photocell Setpoint Center 4
Auto-on Sensitivity Center 5
Microphone Center 6
LED Center 7
Factory Reset Center 8
LEFT BUTTON
DIMMING
FUNCTION NAME BUTTON POSITION FUNCTION #
Turn Off Scheme Left 2
Low Trim Left 3
Fade Off Time Left 4
RIGHT BUTTON
DIMMING
FUNCTION NAME BUTTON POSITION FUNCTION #
Turn On Dimming Level Right 2
High Trim Right 3
Fade On Time Right 4
Dimming Curve Type Right 5
CONFIGURATION SETTINGS
CONFIGURATION PROGRAMMING
1 From the lists of Conguration Functions below, note the Button Position and number (#) of the Function to be changed. For example, HIGH TRIM setting is the Right Button, #3.
2 Enter programming mode by pressing and holding the CENTER button until the blue LED begins rapid ashing.
3 Press and release the applicable button for the chosen function. For example, press the RIGHT button 3 times for the HIGH TRIM setting.
4 The LED will ash back the setting number of the current value as it appears in each function’s detailed table of values. For example, the default HIGH TRIM is setting #2 (10V) for the
RIGHT button.
5 Press and release the applicable button the number of times equal to the new setting #. For example, RIGHT button 3 times (for 9V).
6 The LED will ash back the new setting number as conrmation.
7 To exit programming mode, press and hold the function’s applicable button again until the LED ashes rapidly. The LED will then blink white twice as conrmation of success.
NOTE IF THE LED DOUBLE FLASHES TWICE BLUE AT ANY POINT, REPEAT THE ABOVE PROCEDURE.
CONFIGURATION FUNCTIONS
LED INDICATOR
