Sensus FieldLogic FL6500 Series User Manual

INTRODUCTION
The following information contains operating instructions for the
Sensus FieldLogic® Hand-Held Device [HHD], which is primarily
designed to collect and store utility meter readings with built-in
capability for expanded uses. The HHD interfaces to a personal
computer [PC] through Wi-Fi® or an ethernet-enabled charging
stand used for uploading pre-programmed meter reading route
information. The computer must be equipped with Sensus
FieldLogic System software.
The Model FL6501 accepts meter reading data entered manually
on a built-in keypad or electronically through the TouchRead
®
System AutoGun, or wirelessly with the CommandLink or FMT.
AutoGun options include cable-connected and RF (no cable
required) styles.
The Model FL6502 includes all features of the Model FL6501,
plus it can read Sensus RadioRead
®
Meter Transceiver Units
[MXUs].
Features include:
• Ergonomic design with a transective LCD screen for ease
of viewing
• A backlit keypad for additional illumination in areas with
insufcient lighting
• Bluetooth and Wi-Fi enabled
• A rechargeable, self-contained Lithium Ion battery pack
• Optional integrated GPS, camera, and barcode scanner
• A weather-resistant, high impact, UV-stabilized plastic
watertight case
• User friendly controls and operation
AQG-10072-01

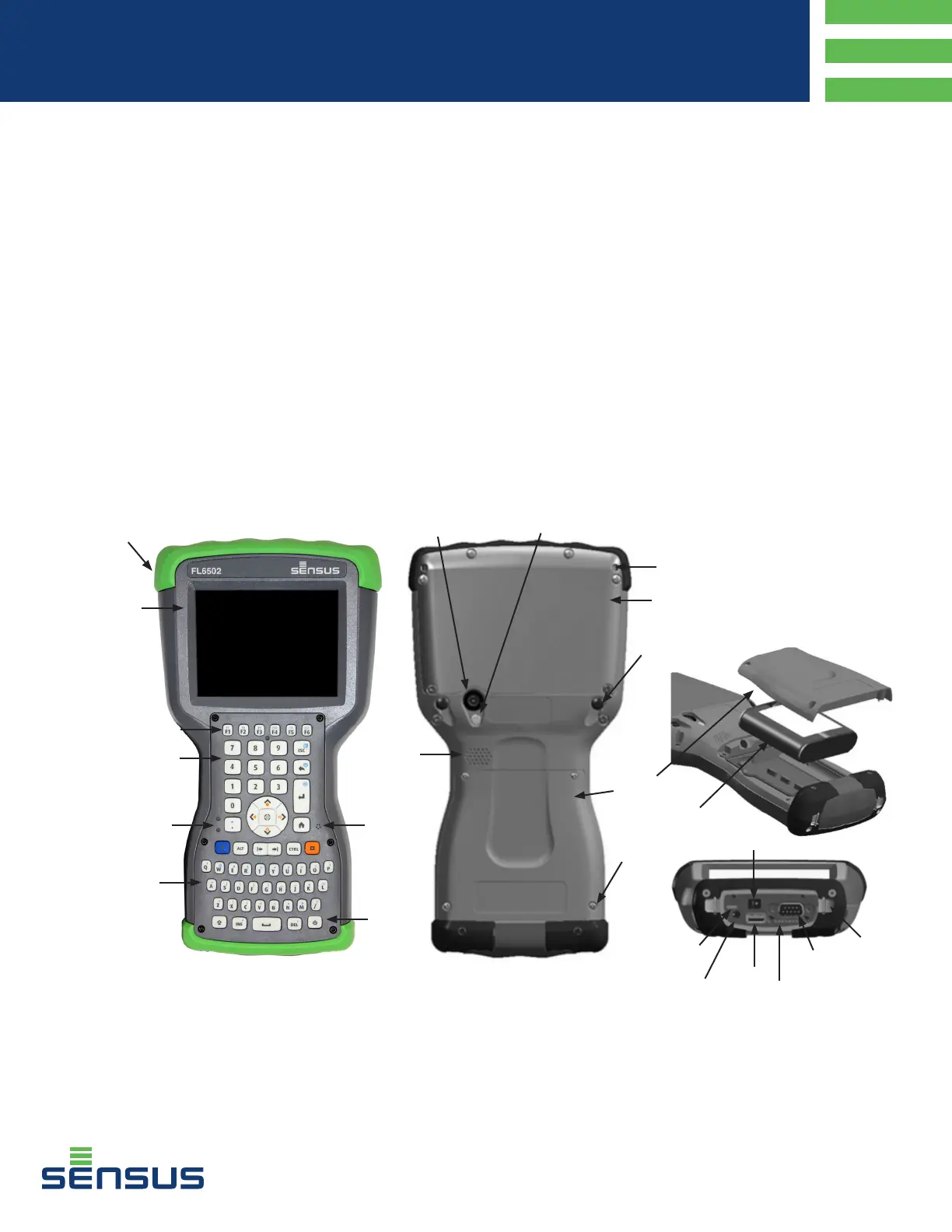

FL6500 Series
Quick Guide
Touchscreen
Power
Button
Top Bumper
QWERTY
Keyboard
Microphone
Stylus/Tether
Attachment
Point
Function Keys
Numeric
Keyboard
Expansion Door
LED
Indicators
Optional
Camera Lens
Optional Camera Flash
and Flashlight Window
Speaker
Battery
Compartment
Door
Battery Door
Screws
Hand Strap
Attachment
Point
Battery Pack
Hand Strap
Attachment
Point
Micro
USB
Port
Microphone/
Speaker Jack
USB Port
Docking Pin
Contacts
12-24V DC Jack
9-pin Serial
Port

Sensus FieldLogic FL6500 Series Specifications

General

Brand	Sensus
Model	FieldLogic FL6500 Series
Category	Measuring Instruments
Language	English
