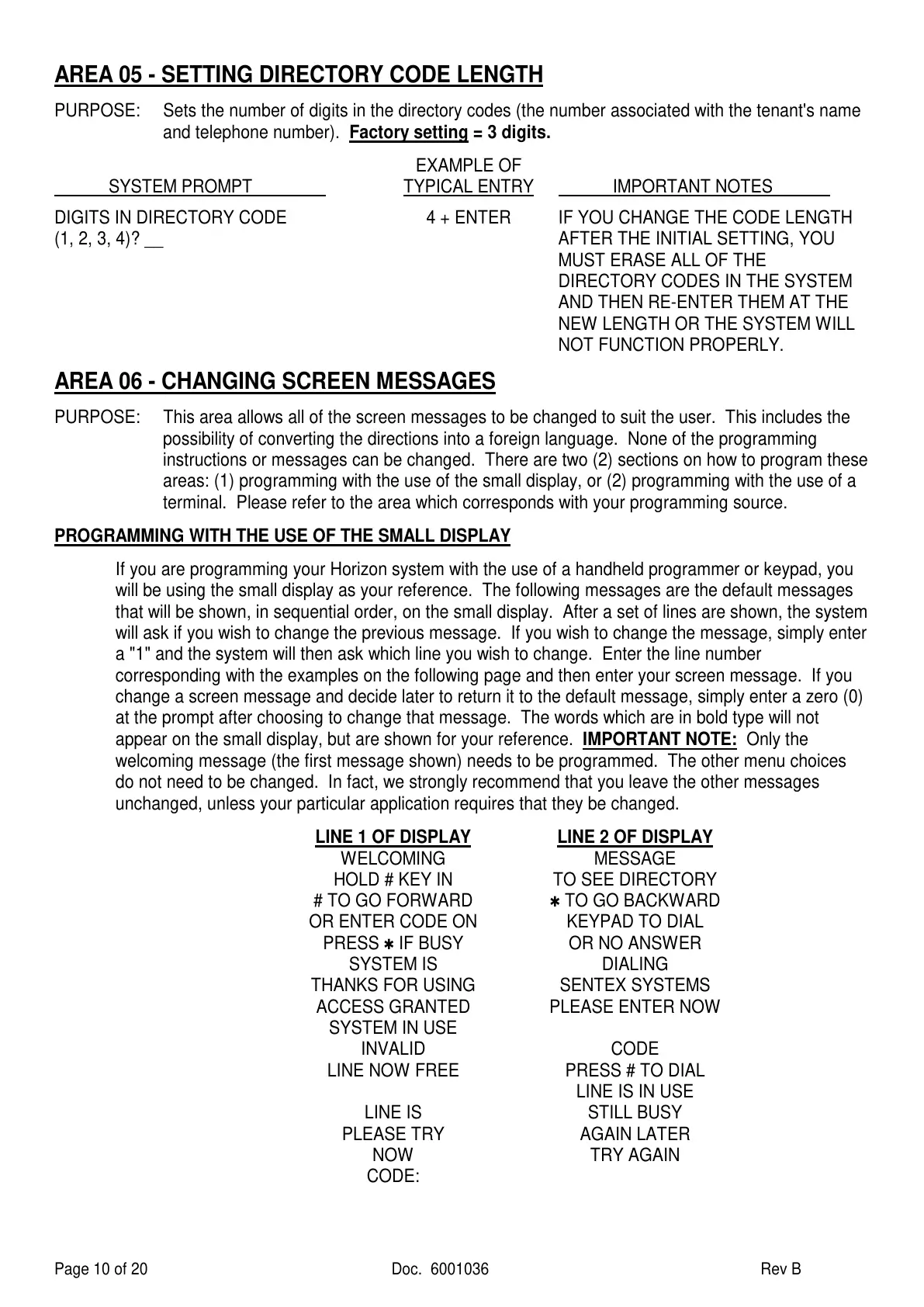

AREA 05 - SETTING DIRECTORY CODE LENGTH
PURPOSE: Sets the number of digits in the directory codes (the number associated with the tenant's name
and telephone number). Factory setting = 3 digits.
SYSTEM PROMPT
EXAMPLE OF
TYPICAL ENTRY
IMPORTANT NOTES
DIGITS IN DIRECTORY CODE
(1, 2, 3, 4)? __
4 + ENTER IF YOU CHANGE THE CODE LENGTH
AFTER THE INITIAL SETTING, YOU
MUST ERASE ALL OF THE
DIRECTORY CODES IN THE SYSTEM
AND THEN RE-ENTER THEM AT THE
NEW LENGTH OR THE SYSTEM WILL
NOT FUNCTION PROPERLY.
AREA 06 - CHANGING SCREEN MESSAGES
PURPOSE: This area allows all of the screen messages to be changed to suit the user. This includes the
possibility of converting the directions into a foreign language. None of the programming
instructions or messages can be changed. There are two (2) sections on how to program these
areas: (1) programming with the use of the small display, or (2) programming with the use of a
terminal. Please refer to the area which corresponds with your programming source.
PROGRAMMING WITH THE USE OF THE SMALL DISPLAY
If you are programming your Horizon system with the use of a handheld programmer or keypad, you
will be using the small display as your reference. The following messages are the default messages
that will be shown, in sequential order, on the small display. After a set of lines are shown, the system
will ask if you wish to change the previous message. If you wish to change the message, simply enter
a "1" and the system will then ask which line you wish to change. Enter the line number
corresponding with the examples on the following page and then enter your screen message. If you
change a screen message and decide later to return it to the default message, simply enter a zero (0)
at the prompt after choosing to change that message. The words which are in bold type will not
appear on the small display, but are shown for your reference. IMPORTANT NOTE: Only the
welcoming message (the first message shown) needs to be programmed. The other menu choices
do not need to be changed. In fact, we strongly recommend that you leave the other messages
unchanged, unless your particular application requires that they be changed.
LINE 1 OF DISPLAY
LINE 2 OF DISPLAY
WELCOMING MESSAGE
HOLD # KEY IN TO SEE DIRECTORY
# TO GO FORWARD
✱
TO GO BACKWARD
OR ENTER CODE ON KEYPAD TO DIAL
PRESS
✱
IF BUSY OR NO ANSWER
SYSTEM IS DIALING
THANKS FOR USING SENTEX SYSTEMS
ACCESS GRANTED PLEASE ENTER NOW
SYSTEM IN USE
INVALID CODE
LINE NOW FREE PRESS # TO DIAL
LINE IS IN USE
LINE IS STILL BUSY
PLEASE TRY AGAIN LATER
NOW TRY AGAIN
CODE:
