INSTALLATION OF THE CR/41/24 CONTROL UNIT
Position the appliance in proximity of the gate in a way to reduce the length of the connection cable, to the rest of
the system, to a minimum.
For greater protection from atmospheric agents it is recommended to position the control unit under a roof or, even
better, in a room that has two lateral walls. It is also good practice to install the appliance at a height above 1.5 m,
where possible, in order to prevent it being tampered with by children.
WHERE TO POSITION THE CONTROL UNIT
The control unit leaves the factory with the lid positioned to open from the left side.
If you wish to open the lid from the opposite side, proceed as follows:
ATTENTION: This operation must be carried out
before fixing the container to the wall.

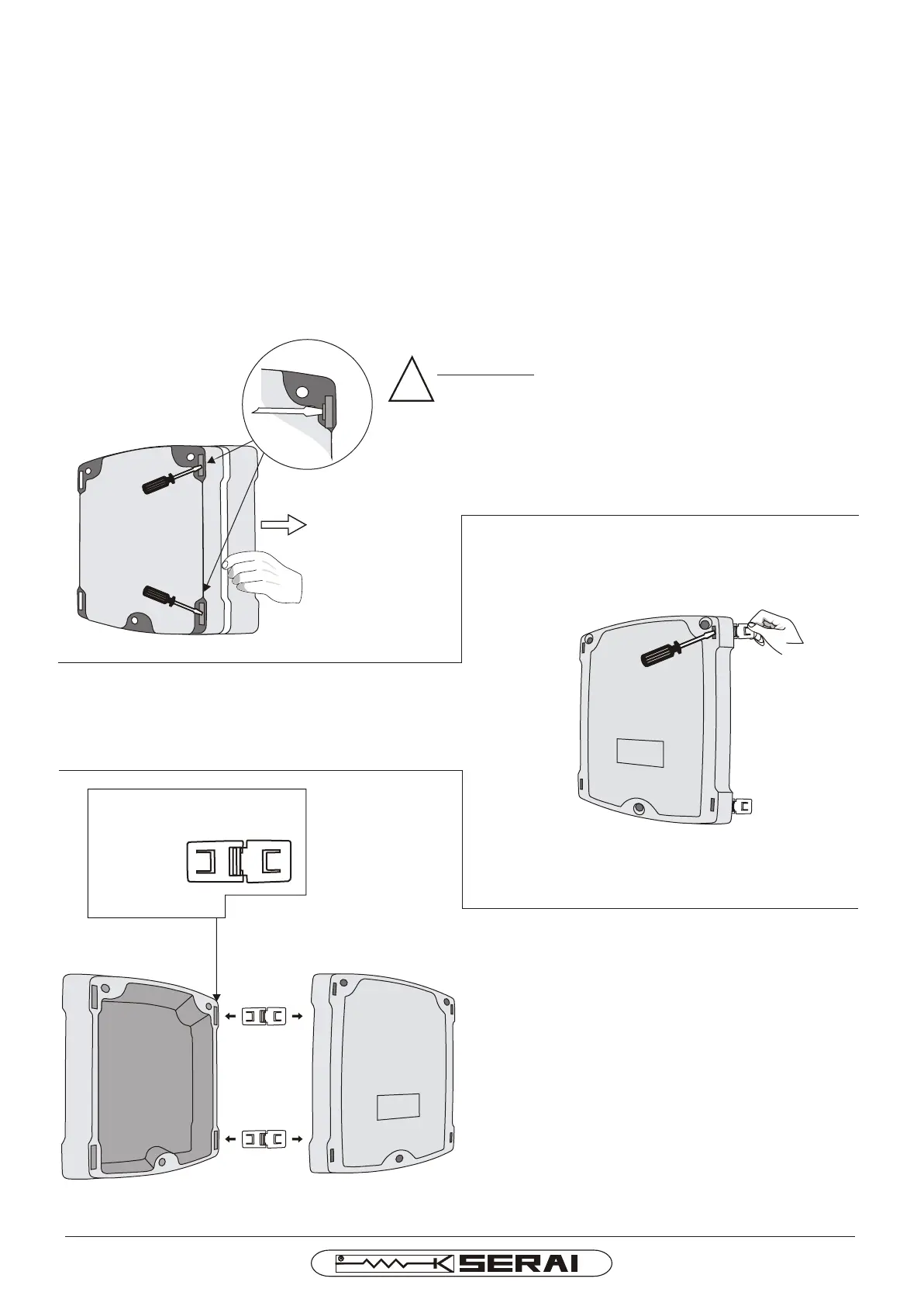

Insert a flat tip screwdriver into the fixing recess of the hinges
positioned on the rear of the base and lever on the attachment
notch of the hinge itself; pull the lid at the same time. (see
Fig.1)
Fig.1
Insert a flat tip screwdriver into the fixing recess of the hinge
positioned on the front part of the lid and lever on the notched
attachment of the hinge itself; pull the hinge at the same time.
(see Fig.2)
Fig.2
DAL 1965
Re-mount the hinges on the right side of the base by
inserting them in the relevant seats with the attachment
notch facing towards the inside of the container until the
attachment clicks (see Fig.3)
Fig.3
LID SET-UP FOR LID OPENING TO THE RIGHT
!
