Serai MT/80/2 - Gate Assembly and Lever Group

DAL 1965
Pag. 5/6
1/2
1/2

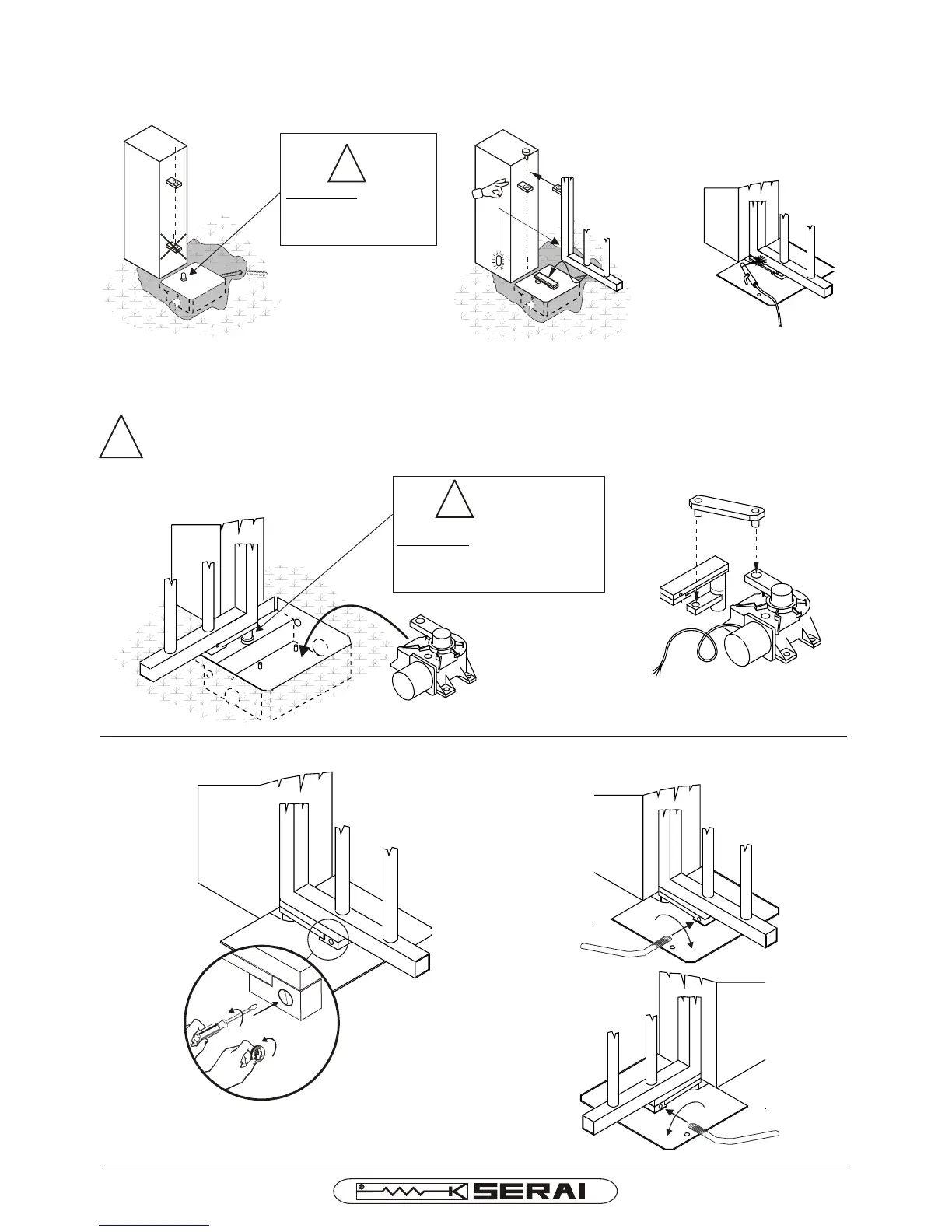

9-Put the motor in the metal box again and insert the connecting rod between the motor and the pivoting bracket.
Attention:
The motor is fixed on the foundation box by means of two normal nuts, due to problems of transport.
To install the motor in the system, these two nuts have to be removed and trown away, replaced with four
self-locking nuts as standard.
EMERGENCY MANOEUVRE IN CASE OF BLACK OUT
!
8- After removing the lower hinge and fitting the lever group on the box bolt, put the gate on the upper hinge and
weld it on the lever group in the lower side verifying the perfect verticality of the gate corner
!
!
!
IMPORTANT:
USE THE PROPER GREASER TO
LUBRICATE PERIODICALLY THE
BOLT -EVERY 6 MONTHS
IMPORTANT:
GREASE THE BOLT
BEFORE FITTING THE
LEVER GROUP
MT/80/2 I E
