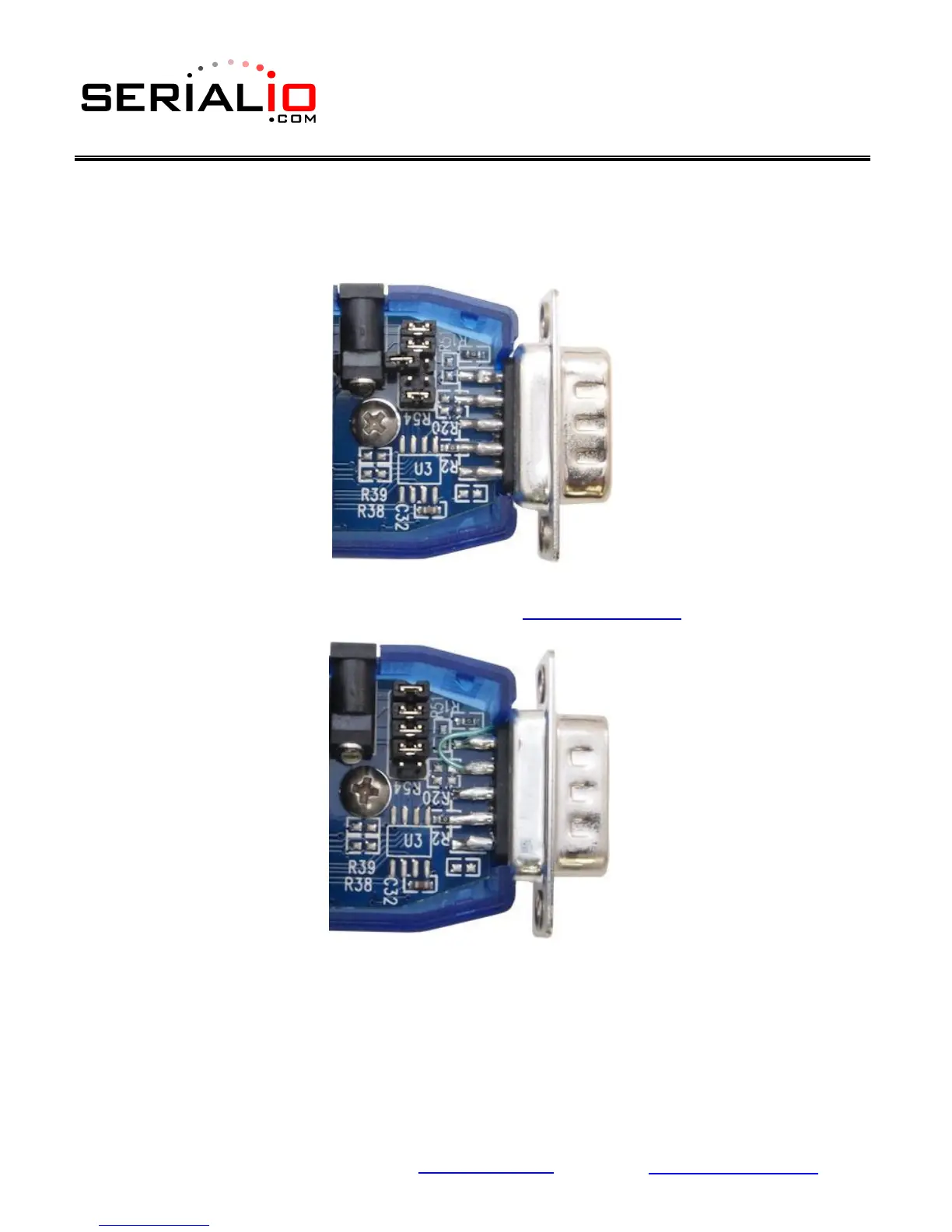

Below are Internal Jumper options for BlueSnap AAA (Male)
DCE 3 Wire Factory Default (CTS shorted to RTS),
Remove 3
rd
, 4
th
jumpers and one jumper in position 5
DTE (Like a PC) RX=2, TX=3, RTS=7, CTS=8
Use these settings for devices like Sylvac Digital Caliper
