Serpent SRX8 GT - Rr Diff Assembly

4

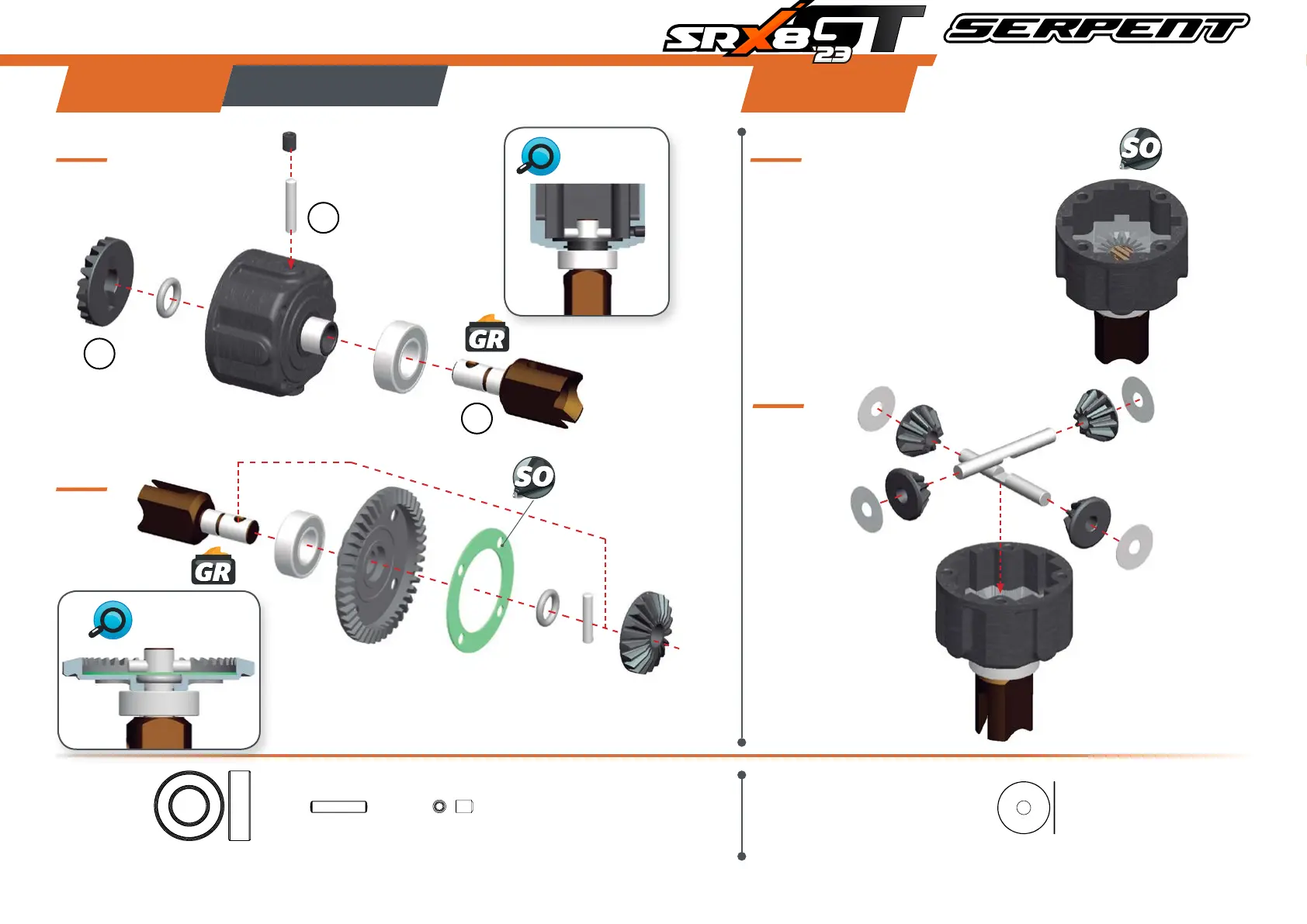

FR/RR diff assembly
STEP 1 STEP 2
DIFF bag fr/rr
8x16x5
8x16x5
M3x4
2.5x13
2.5x13
Use silicone oil to
hold seal in position.
1.1
2.2
2.1
1.2
3
1
2
Add just enough oil to cover the
large gear before assembling the
small satellite gears and cross pins.
Use the silicone oil supplied in the
kit. For the correct cst value please
check the default setupsheet.
8x16x5
M3x4
Note the correct
pin location.
Note the correct
pin location.
3.5x12x0.2
2.5x13
3.5x12x0.2
