SERV-WARE SGR-2-24G - Page 9

9

Backsplash
The standard Restaurant Range is equipped with a 23" (584 mm) high backsplash and
shelf.
1. Remove the backsplash components from the crating materials.

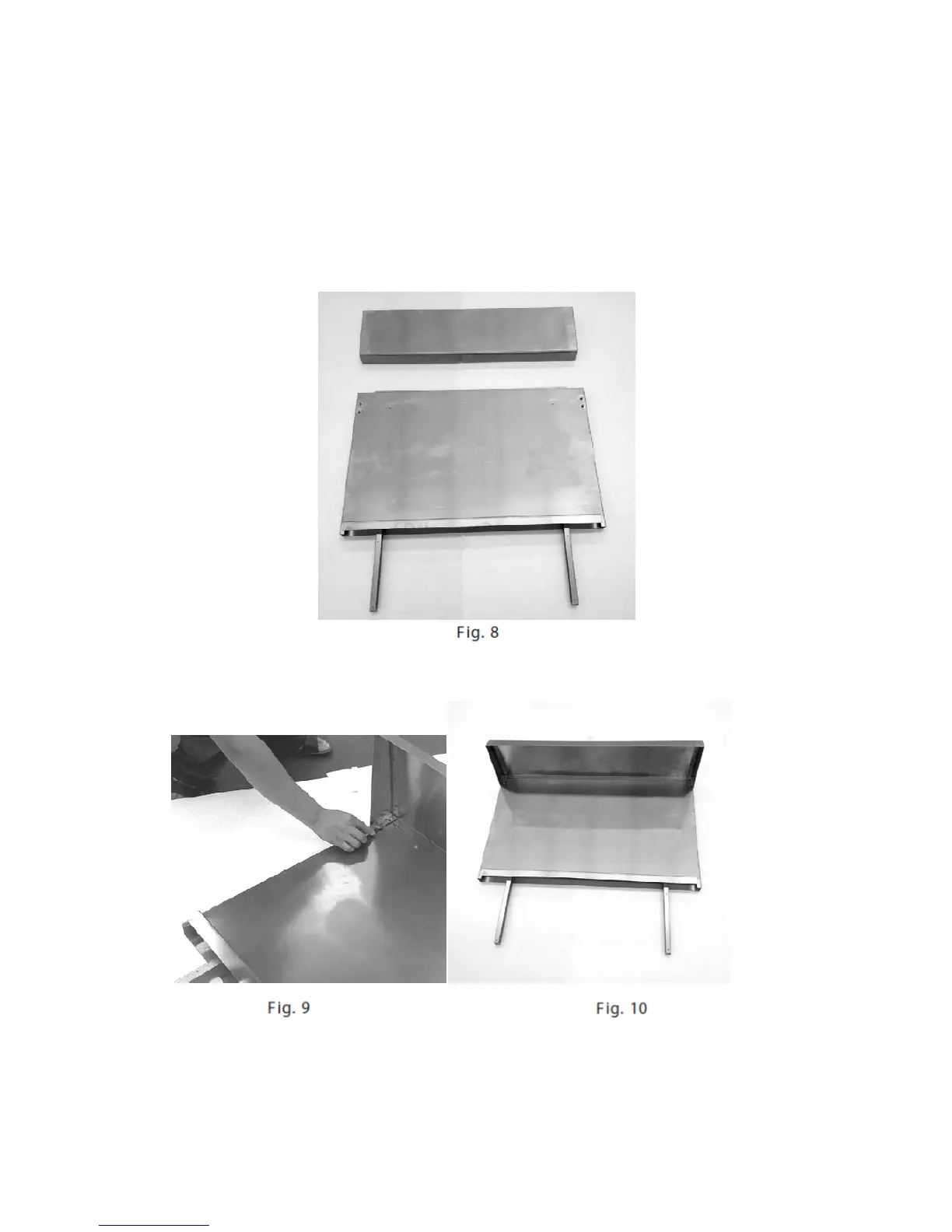

2. Assemble the required components as shown in Fig’s. 8 and 9 and 10.
3. Tighten the four screws to secure the shelf.
