PUMP ASSEMBLY
BEFORE FIRST USE AND AFTER USE DAILY,
DISASSEMBLE AND CLEAN PUMP.

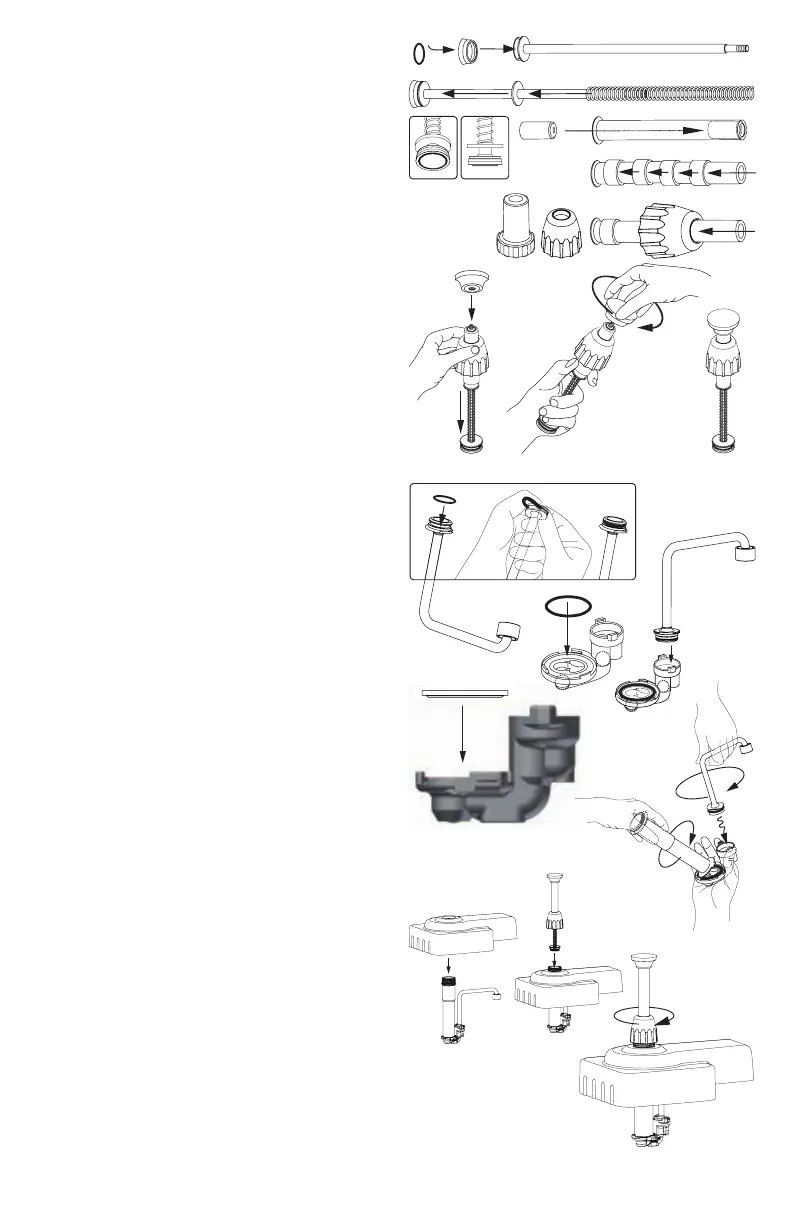

ASSEMBLE PLUNGER:
1 INSTALL SEAL O-RING INSIDE SEAL.
• Apply food equipment lubricant on seal o-ring.
2 INSTALL SEAL ASSEMBLY ONTO PISTON HEAD.
• Apply food equipment lubricant inside seal
assembly.
3 INSTALL WASHER ONTO THREADED END OF PISTON.
4 INSTALL SPRING ONTO THREADED END OF PISTON.
5 INSTALL HEAD INSERT INSIDE HEAD TUBE.
• Beveled edge of head insert should be facing inside
of head tube.
6 INSTALL GAGING COLLAR(S), IF NEEDED, AND
LOCKING COLLAR ONTO HEAD TUBE BY SLIDING
THEM ON.
• Position locking collar with threading inside locking
collar facing gaging collar(s) and/or head tube
ared end.
7 INSTALL HEAD TUBE ASSEMBLY ONTO PISTON
ASSEMBLY.
8 INSTALL KNOB ONTO PLUNGER ASSEMBLY AND
ROTATE CLOCKWISE TO SECURE ONTO THREADED
END OF PISTON.
• Firmly hold head tube towards piston head,
compressing spring, while screwing knob on.
INSTALL O-RINGS AND ASSEMBLE PUMP BODY:
9 INSTALL SMALL O-RING ONTO DISCHARGE TUBE.
• Apply food equipment lubricant on o-ring.
• Be careful not to damage o-ring while installing
and/or rolling onto discharge tube.
J INSTALL SILICONE GASKET OR O-RING INTO VALVE
B O DY.
• Apply food equipment lubricant on silicone gasket.
• If installing silicone gasket: at side facing up and
toward cylinder.
K INSTALL CYLINDER ONTO VALVE BODY.
• Rotate cylinder clockwise and press down rmly to
secure into slots on valve body.
L INSTALL DISCHARGE TUBE ONTO VALVE BODY.
• Rotate discharge tube clockwise and press down
rmly to secure into slots on valve body.
INSTALL LID ONTO PUMP BODY AND SECURE
WITH LOCKING COLLAR:
M INSTALL LID ONTO DISCHARGE TUBE AND
CYLINDER ASSEMBLY(PUMP BODY).
• Install hole on lid onto cylinder threading.
N INSTALL PLUNGER INTO CYLINDER AND SECURE
PLUNGER TO CYLINDER BY ROTATING LOCKING
COLLAR CLOCKWISE.
