SET 1501 H - Floor Mounting

18
Installation: Floor mounting
Floor mounting

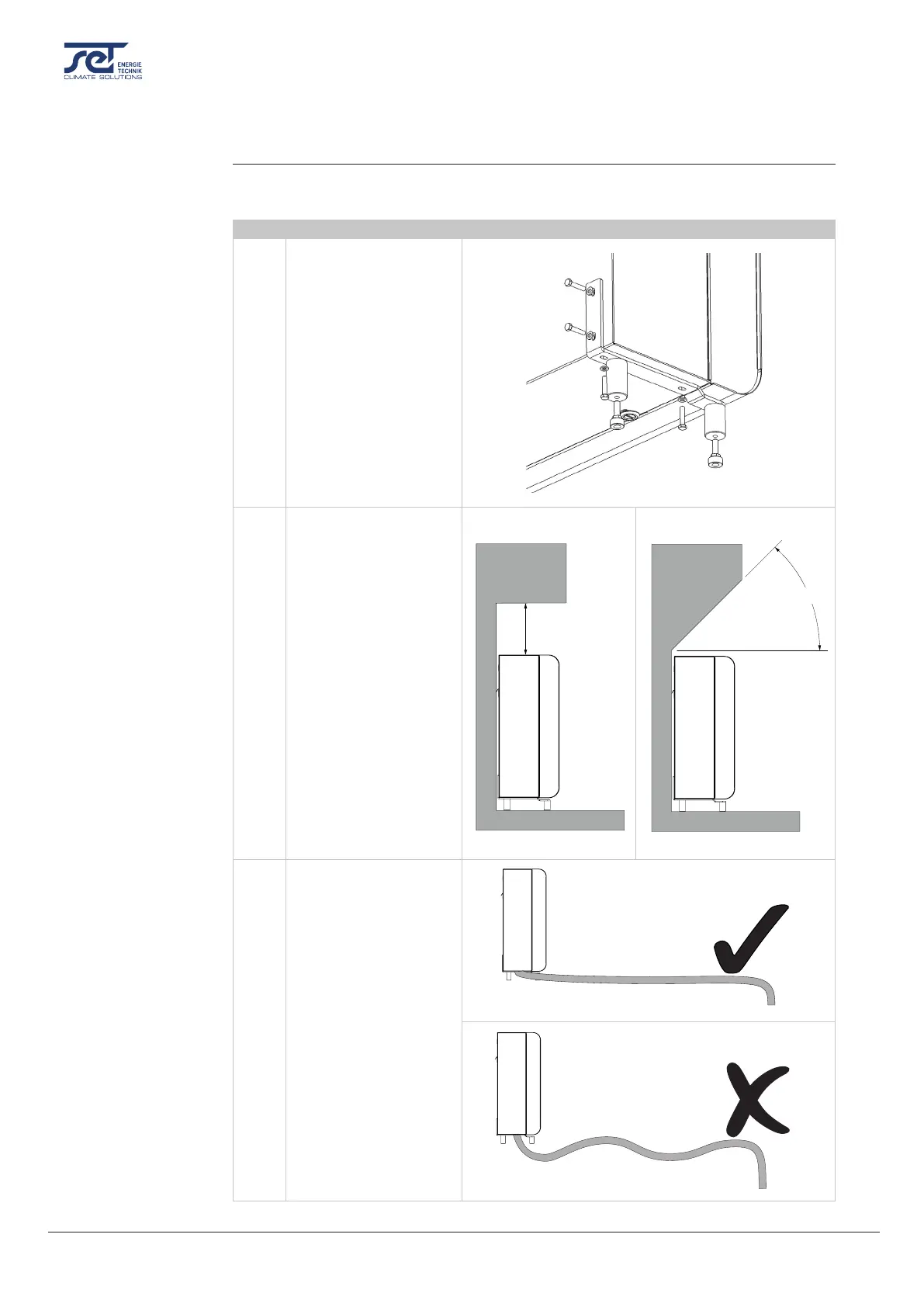

Please follow this procedure to x the oor mounts to the SET 1501 T/ 2501 T/ 3501 T unit:
Step Description Illustration
1 Fasten both oor mounts
to the bottom of the
dehumidier with screws
and nuts (incl. in deliv-
ery).
2 Place the dehumidier
with either
a. a min. space of 225
mm above the unit
or
b. a min. angle of 45°
a) b)
3 If you connect a drain
hose, you have to make
sure that the drain has a
drop.
Avoid a wavy laid hose.
Mounting
procedure
min. 45°
min.
225mm
min. 45°
min.
225mm
