SET-2010
Technical Description
Issue 02 13/04/2022

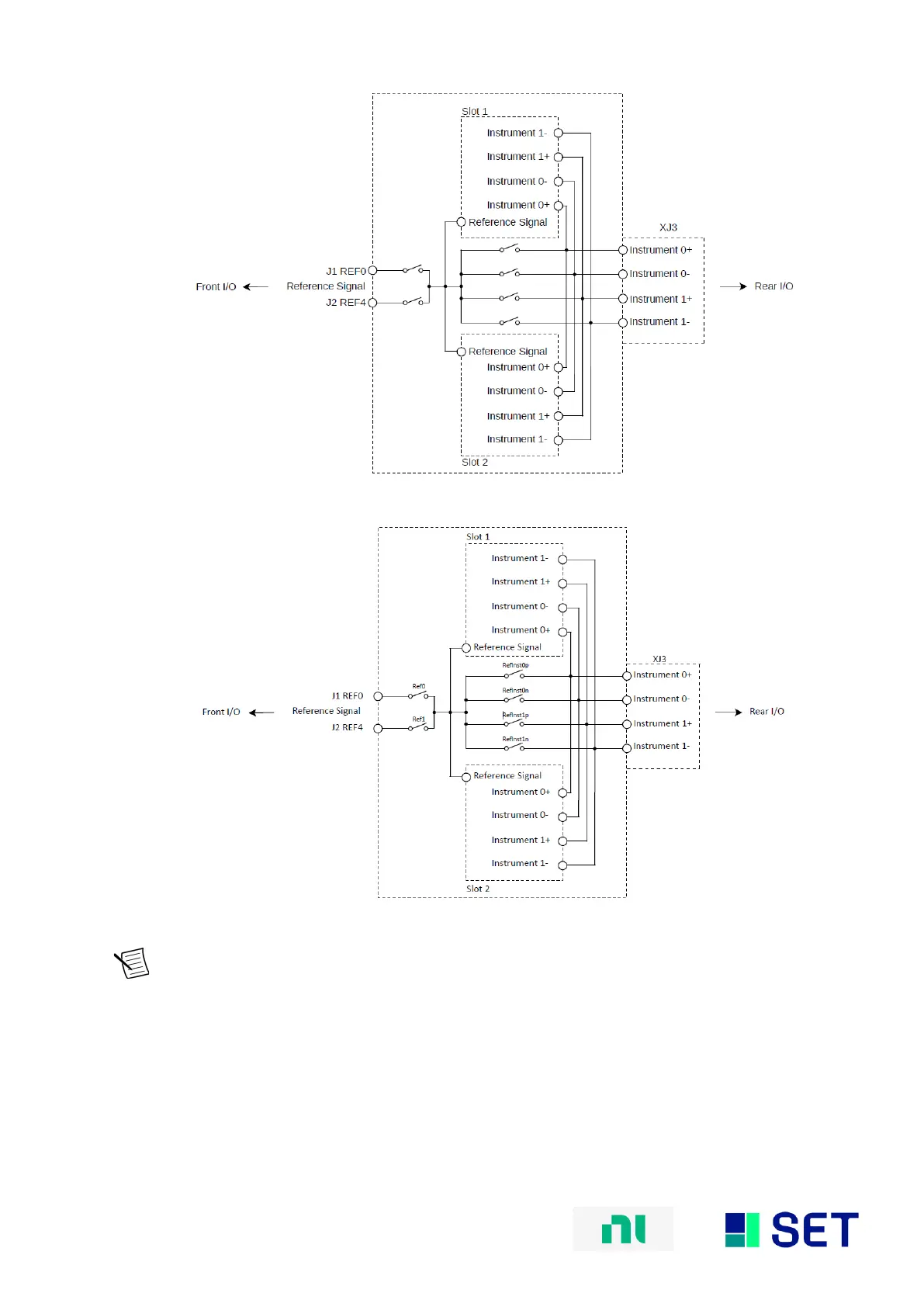

Reference routing to the instrument bus
Reference routing to the fault bus
Note There is one common reference signal on the Routing Card which can be switched on
instrument and fault bus as well as on one reference (REF0/REF4) of each front connector.
Signal REFx/ENx:
0, 1, 2 & 3 are connected with Slot 1.
Signal REFx/ENx:
4, 5, 6 & 7 are connected with Slot 2.
All voltages are relative to GND unless otherwise noted.
