SET SET-2010 - XJ3 Rear Connector Pinout

8 of 10
www.smart-e-tech.com
SET-2010
Technical Description
Issue 02 13/04/2022
XJ3 Connector Pinout (Rear)
Pins
Signal
Slot1/Slot2
H
V1+
Instrument_0+
G
V1-
Instrument_0-
F
V2+
Instrument_1+
E
V2-
Instrument_1-
D
V3+
Fault_A
C
V3-
Fault_B
B
V4+
Fault_C
A
V4-
Fault_D

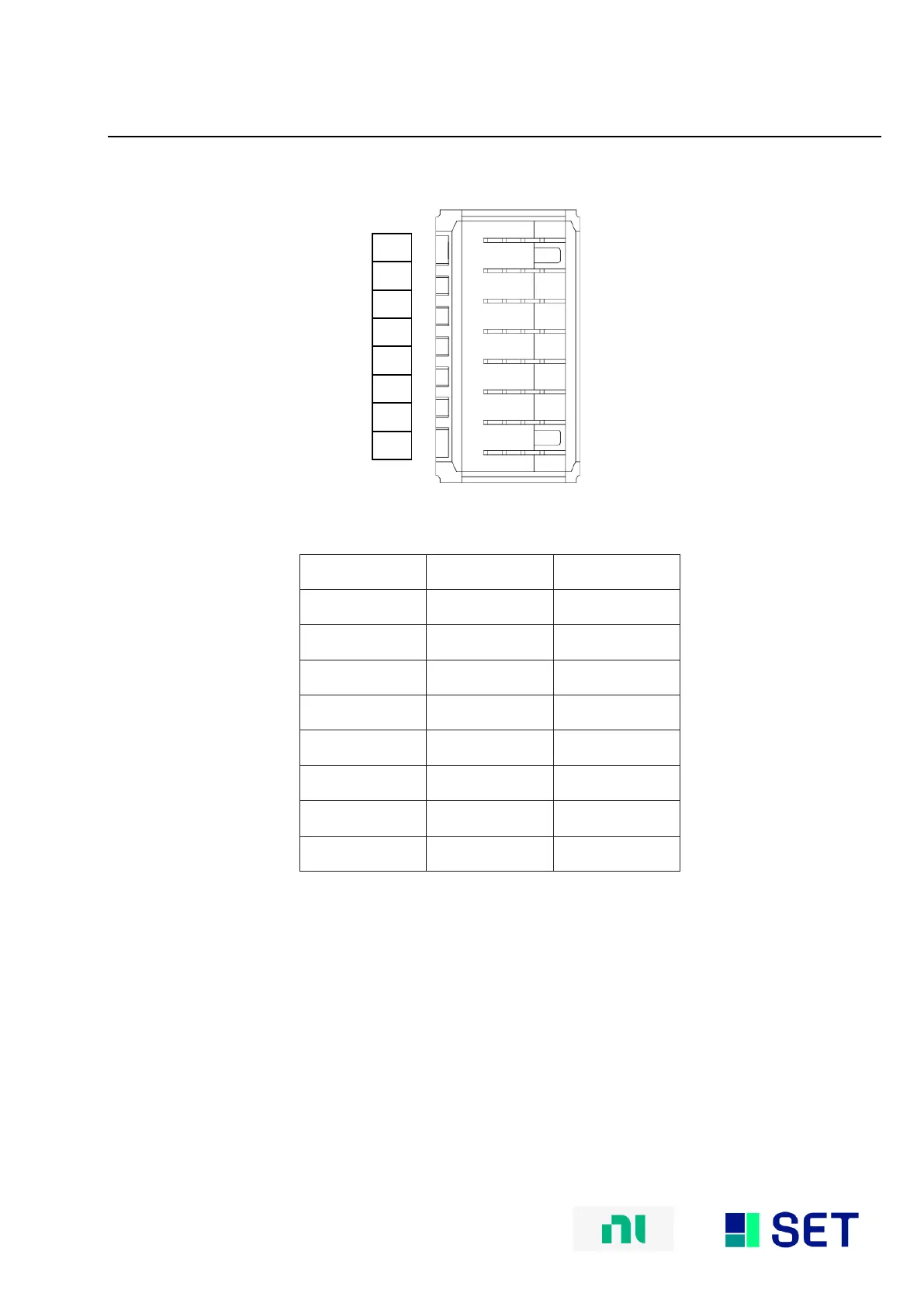

XJ3 Connector Pin Assignments
H
G
F
E
D
C
B
A
