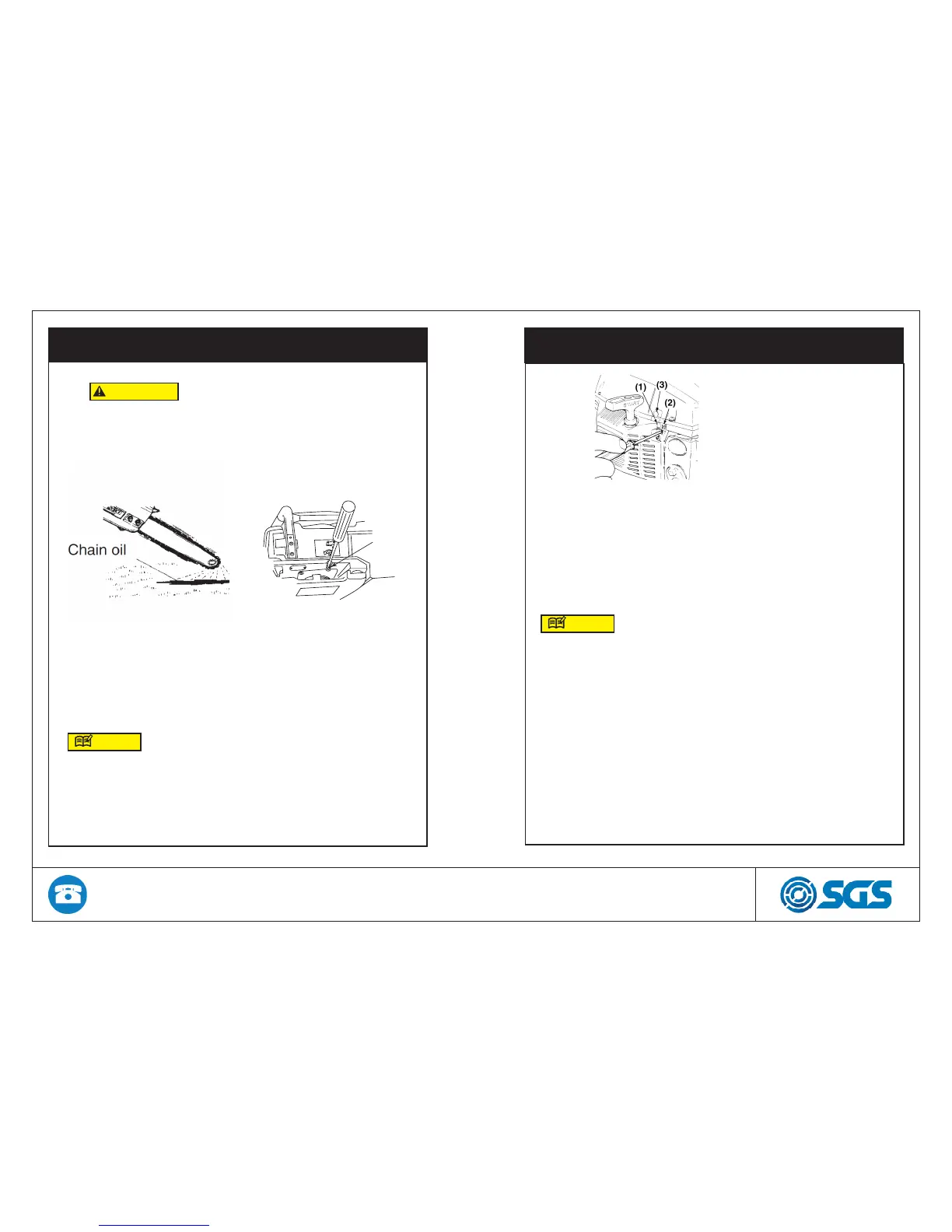

8. CHECKING CHAINSAW OIL LEVEL
• Make sure to set up the bar and the chain when checking
the oil supply.
• If not, rotating parts may be exposed. This is very
dangerous.
1. After starting the
engine, run the chainsaw at
medium speed and see if
chain oil is scattered off as
shown in the figure.
2. The chain oil flow can be
changed by inserting a
screwdriver in the hole on
bottom of the clutch side.
Adjust according to your
work conditions.
The oil tank should become nearly empty by
the time fuel is used up. Be sure to refill the oil
tank every time when refueling the saw.
WARNING
ZZ
NOTE
8. ADJUSTING THE CARBURETOR
The carburetor on your unit has been factory adjusted,
but may require fine tuning due to a change in operating
conditions. Before adjusting the carburetor, make sure that the
provided air/fuel filters are clean and fresh and the fuel properly
mixed.
When adjusting, take the following steps:
Adjust the carburetor with the bar chain attached.
1) L needle
2) H needle
3) Idle adjusting screw
1. H and L needles should only be turned 1/4 at a time.
H needle : -1/4
L needle : -1/4
2. Start the engine and allow it to warm up in low speed for a
few minutes.
3. Turn the idle adjusting screw (T) counterclockwise so that
the saw chain does not turn. If the idling speed is too slow,
turn the screw clockwise.
4. Make a test cut and adjust the H needle for best cutting
power, not for maximum speed.
ZZ
NOTE
